Flybridge
* Can be accessed from the port side of the cockpit via a GRP stairway with teak steps.
- Access door: hinged opening with hatchway in aluminum and Plexiglas
- Smokey Plexiglas flybridge screen with stainless steel frame
- Helm seat for one person with manual depth/height adjustment
- Fore sunbed area with cushions
- Seating for up to eight people on starboard side, with under-seat locker
- Table for up to eight people, with teak top
- Roll bar in GRP with mirror windows on the sides
- Pilot console: Raymarine Bronze Package
- Flybridge unit with fridge
- Navigation lights
- Bow manual searchlight
- Flybridge dashboard consisting of:
- Engine display
- BRONZE series electronic navigation instruments
- Engine start-up controls
- Bow anchor winch controls
- Horn controls
- Bow thruster controls
- 12 V socket
- Chain meter counter
- Engine throttles
- Scupper with stainless steel grating and logo
- “66” logos, placed externally on the radar arch glass, one on each side
- \"Azimut\" logos, placed externally on the radar arch glass, one on each side
Bow / Walkarounds
- 2000 W winch
- Anchor winch controls
- Chain locker with drainage and fender housing
- Chain washing pump system
- 40 kg galvanized steel anchor
- Anchor chain, length 75 m, high-resistance
- Stainless steel anchor roller
- Non-slip floor
- Two wipers for bow windscreen
- Two stainless steel cleats
- Stainless steel line anti-rubbing protection
- Hatchway (emergency exit)
- Two bow grabrails for sunbed cushions
- Side net window and windscreen covers
- Sunbed cushions and cup holders
- Bow sofa in GRP complete with lockers and cushions
- LED lighting along base of sofa
- Access via door on both port and starboard sides (with ADV option)
- Stainless steel pulpit on side washboard
- Chocks on the washboard
- Tempered glass windows glued to the surrounding structure without any metal frame
- Electric sliding rectangular side windows in bow
- Rubber rub-rail with stainless steel insert
- Refueling plug and fresh water refill plug on walk arounds
- Black water tank suction point on port walk around
- Fresh water tank cable socket on starboard walk around
- Two midship cleats per side
Cockpit / Platform
- Access to cockpit from platform via GRP ladder on port and starboard side
- Cleats on mooring station
- Two stainless steel chocks
- Saloon access door, with three stainless steel panels of which two sliding in tempered glass
- \"C\"-shaped cockpit bench with cushions and locker, for five people
- Faux leather cockpit bench outdoor cushions
- Lockers and side compartments in stairs leading to flybridge
- Engine room access
- Cockpit and platform teak decking
- One handrail for access to flybridge stairs
- Lighting: LED spotlights on ceiling
- Flybridge support posts on sides of cockpit bench
- Emergency panel-battery cut-out with controls for service, engine and generator battery cut-out
- Engine room fire extinguishing system activation under port mooring station
- Scuppers with stainless steel grids and Azimut logo
- Two cockpit access gates
- Lift platform with teak covering
- Rubber rub-rail with stainless steel insert
- Access to crew cabin with watertight door
- LED lighting on bathing platform
- Shower with hot and cold mixer tap
- Three-rung manual swimming ladder on port side
- INSTALLABLE TENDER (OPT):
- MAXIMUM DIMENSIONS OF TENDER - PLATFORM: 3.30 x 1.70 m
- MAXIMUM DIMENSIONS OF TENDER - FLYBRIDGE: 2.75 x 1.45 m
- LIFT PAYLOAD EXCLUDING GRP, TEAK AND LADDER: 400 kg
- DAVIT PAYLOAD: 250 kg
- RECOMMENDED TENDER - PLATFORM: Pirelli j33
Wheelhouse
- Pilot console: Raymarine Bronze Package
- 7\" engine control display
- Engine throttles
- Searchlight
- Helm seat with electric depth/height adjustment
- Adjustable rudder
- Chain meter counter
- Magnetic compass
- 12 V socket
- Electric steering system control display
- Controls for:
- Engine start-up
- Bow anchor winch activation
- Audible alarm
- Light activation
- Windshield washer activation
- Side windows opening (port and starboard)
- Chain washing pump
- Handrail for stairway
Saloon / Dinette
Saloon
- Carpeted floor with wooden edge around stairs leading to dinette
- Two sofas:
- Four seater sofa on port side
- Four seater sofa on starboard side
- TV cabinet behind starboard sofa
- Provision for TV system
- Roman blinds on side windows
- Saloon door blind
- LED strip lighting on ceiling
- Port column with open cup holder compartment
- Sockets and switches
Dinette
- Carpeted floor
- Wheelhouse righthand console
- \"C\"-shaped sofa for five people on starboard side
- Rectangular table
- Central below deck access ladder with glass risers with carpeted illuminated steps
- Table lighting on ceiling
- Roman blinds on side windows
Galley
- Floor in wood essence
- Avonite worktop
- Saloon/dinette wooden furniture
- Stainless steel sink with mixer tap
- Fixed LED spotlights on varnished ceiling panel, and fixed spotlights under the wall unit between the galley and the saloon
- Ceramic glass 4-hob range and silicone pot holder
- Extractor hood with active carbon filters
- Microwave oven + grill
- Upright refrigerator/freezer
- Socket

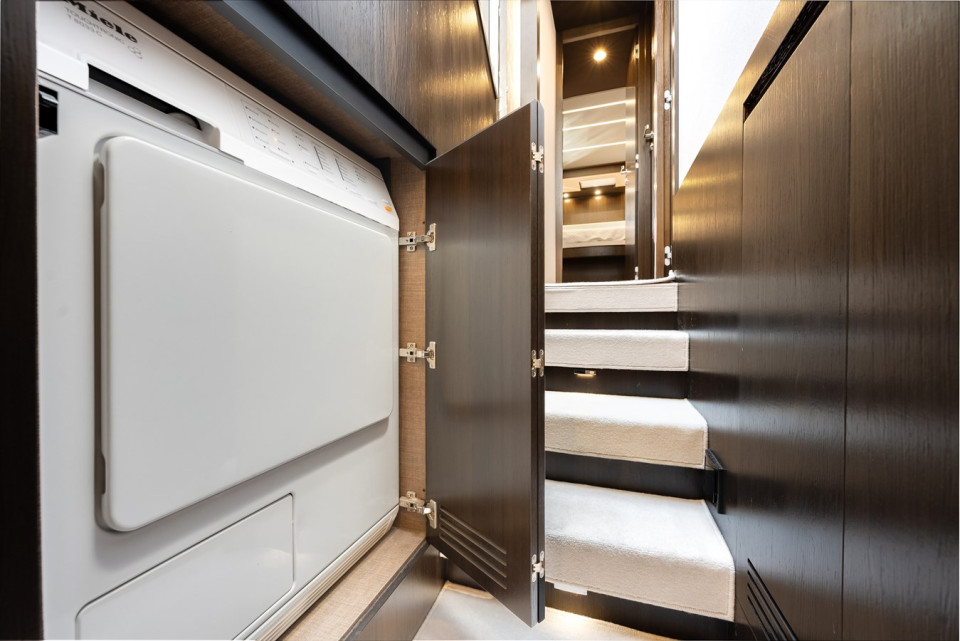

Corridor To Access Below-Deck Area
- Carpeted floor
- Lighting on the steps, LED spotlights on corridor ceiling
- Grabrails

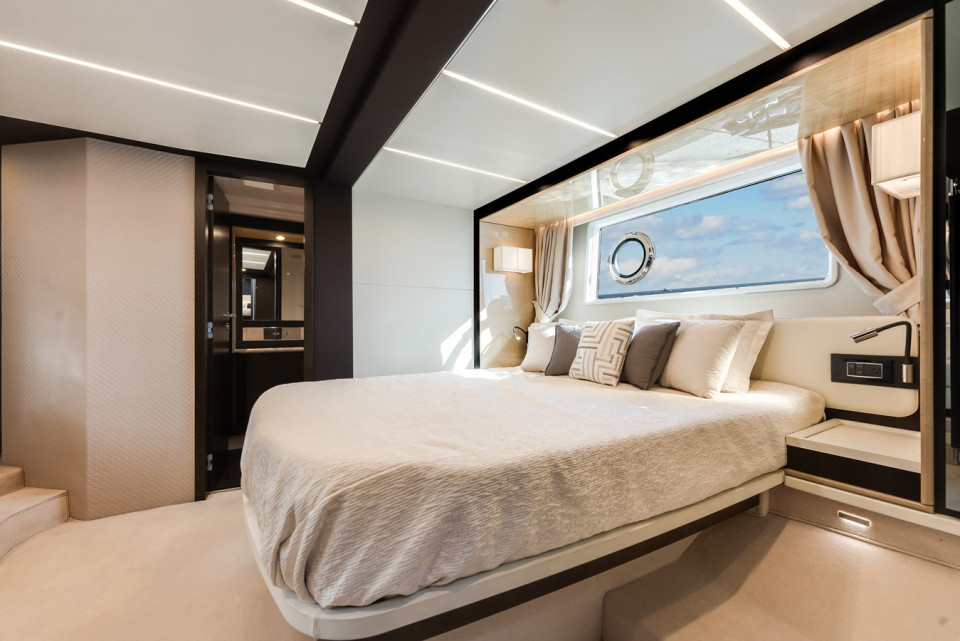

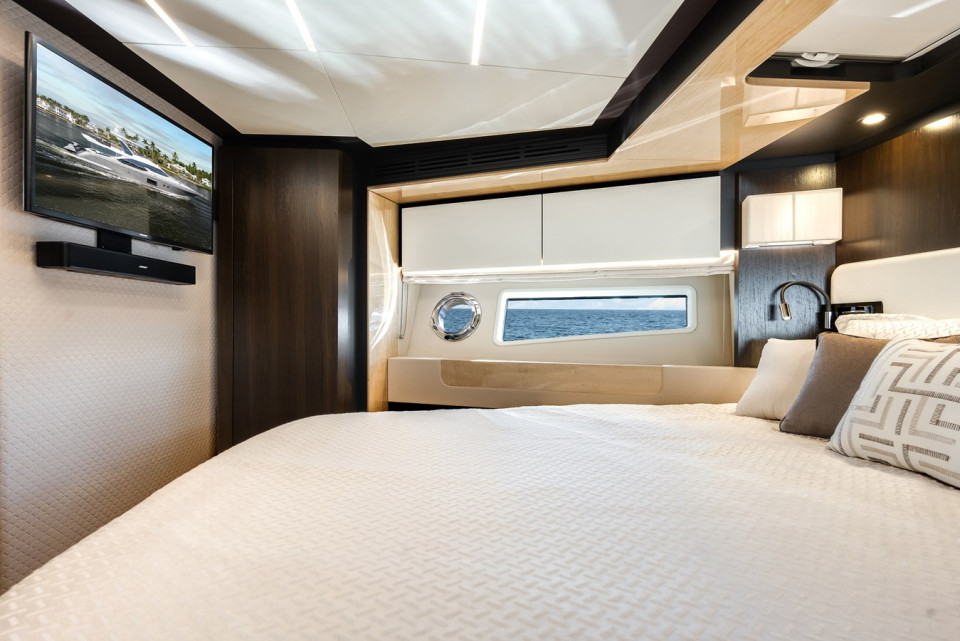

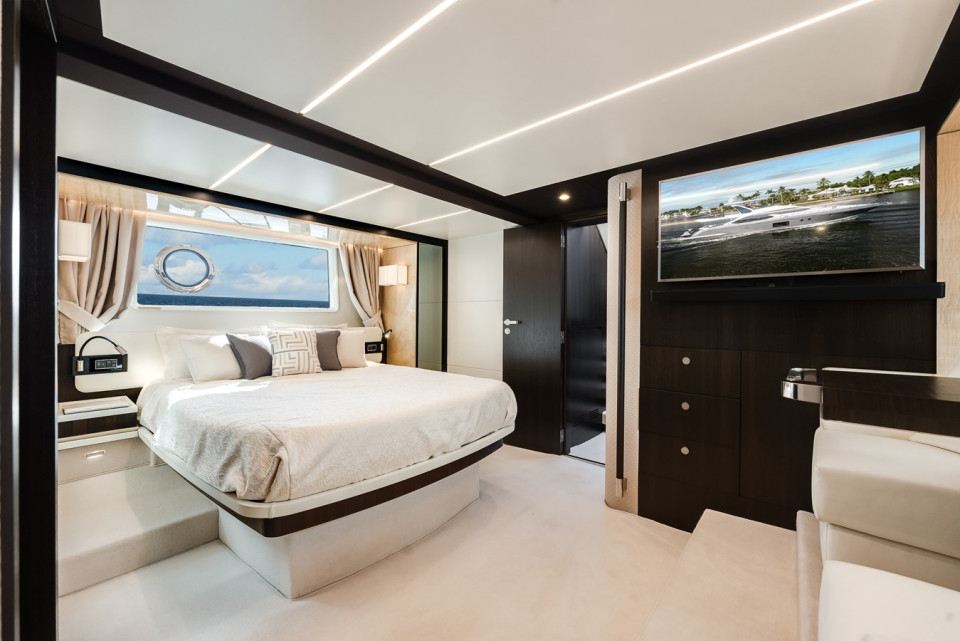

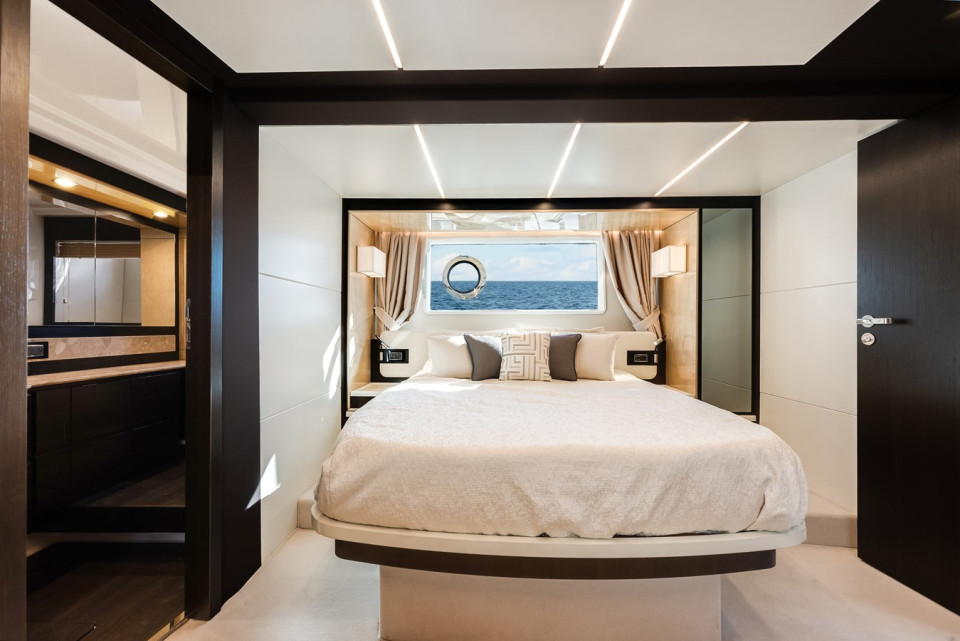

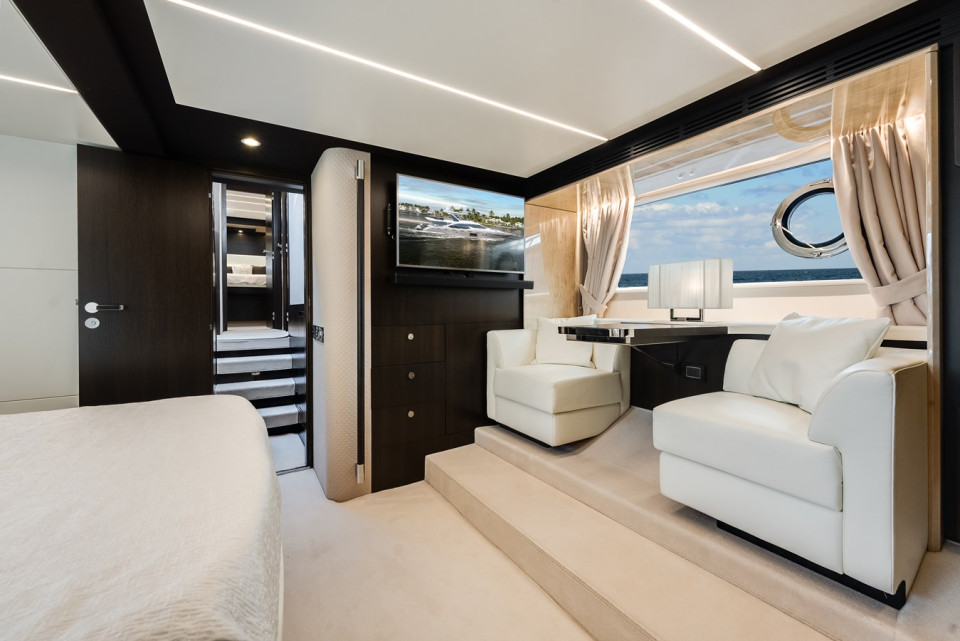

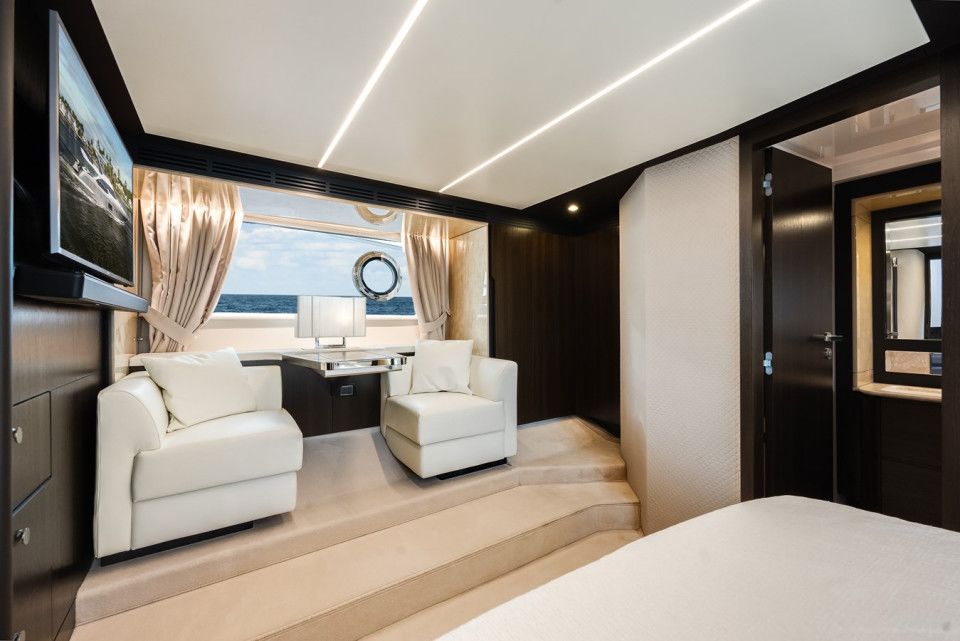

Owner\'s Cabin (Midship)
- Folding double bed with headboard on port bulwark
- Mattress, pillows and bedspread
- Vanity table with sofas on starboard side
- Open wardrobe with full-height hanger bar and shelves
- Rectangular windows
- One openable portlight on each side
- Provision for TV system
- Storage with drawers under TV
- Carpeted floor
- Grabrails
- Sockets and switches
- Reading lights
- LED lighting on ceiling
- Bedside tables with storage space
- Wooden Venetian blinds
- Starboard side wardrobe with shelves

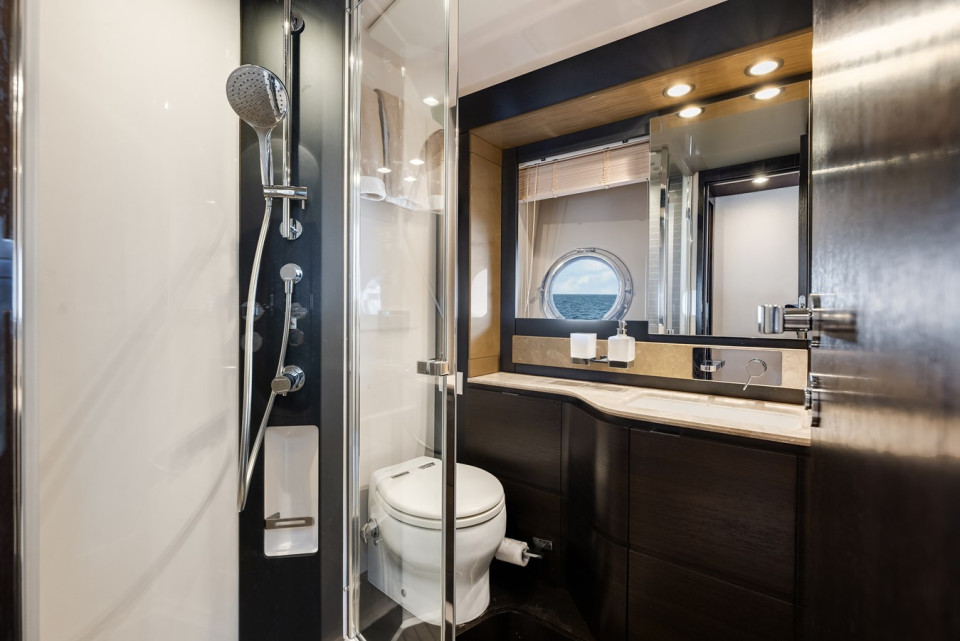

Owner\'s Head
- TECMA toilet, with 3 drawers behind
- ABS washbasin with chrome mixer tap and marble head top
- Wooden cabinet and lacquered parts with storage
- Shower with thermostatic mixer tap
- Shower enclosure with glass door, seat and laminate floor
- Mirrors
- Wooden flooring
- LED spotlights
- Openable portlight with Venetian blinds
- Air extractor in the shower enclosure
- Sockets and switches
- Wall units
- Head accessories

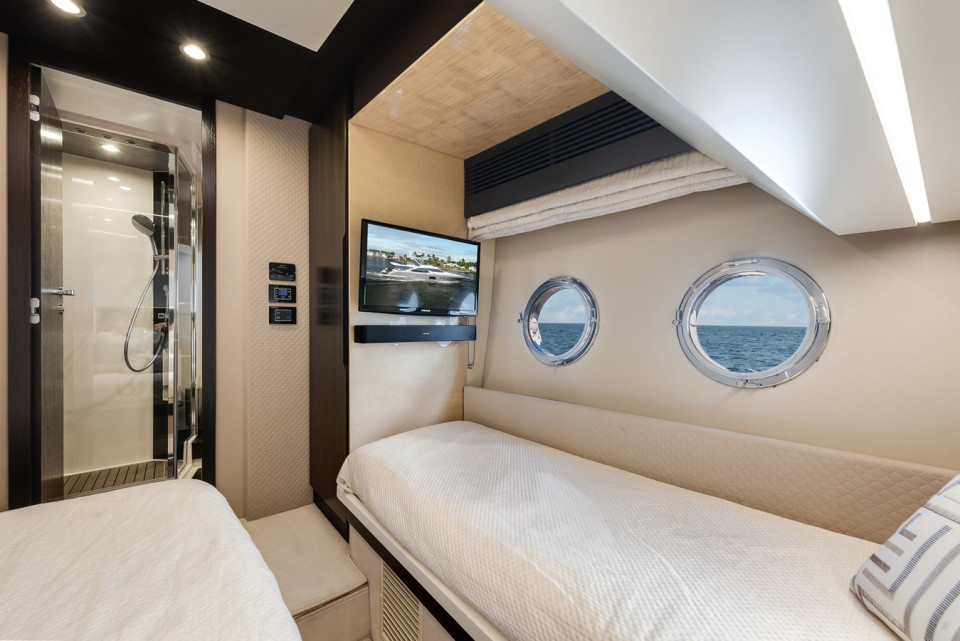

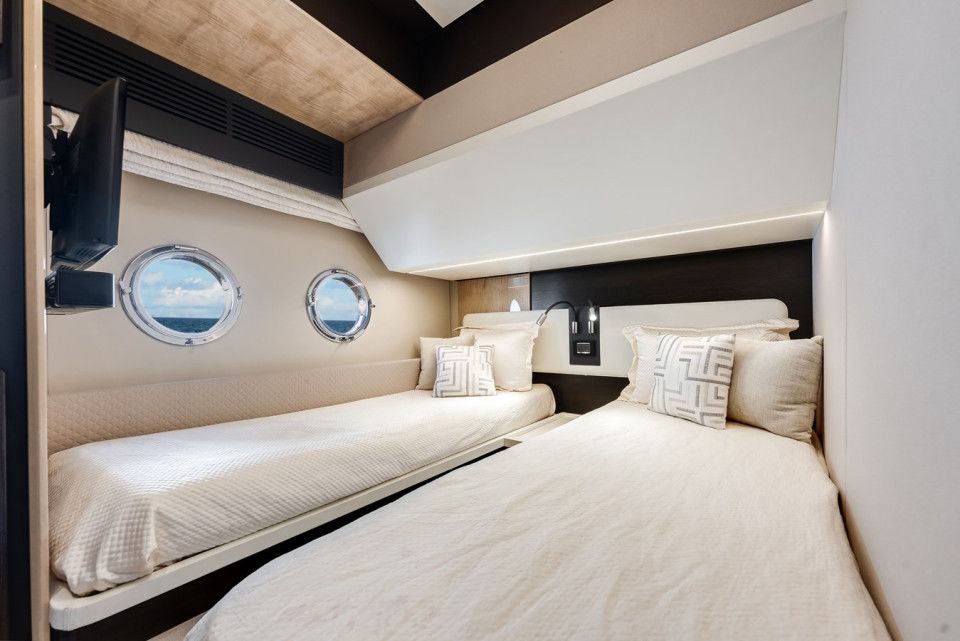

Guest Cabin (Starboard Side)
- Two parallel fixed single beds
- Mattress, pillows and bedspread
- Central bedside table
- Wardrobe with hanger bar and shelves
- Window with openable portlight
- Reading lights
- LED lighting on ceiling
- Carpeted floor

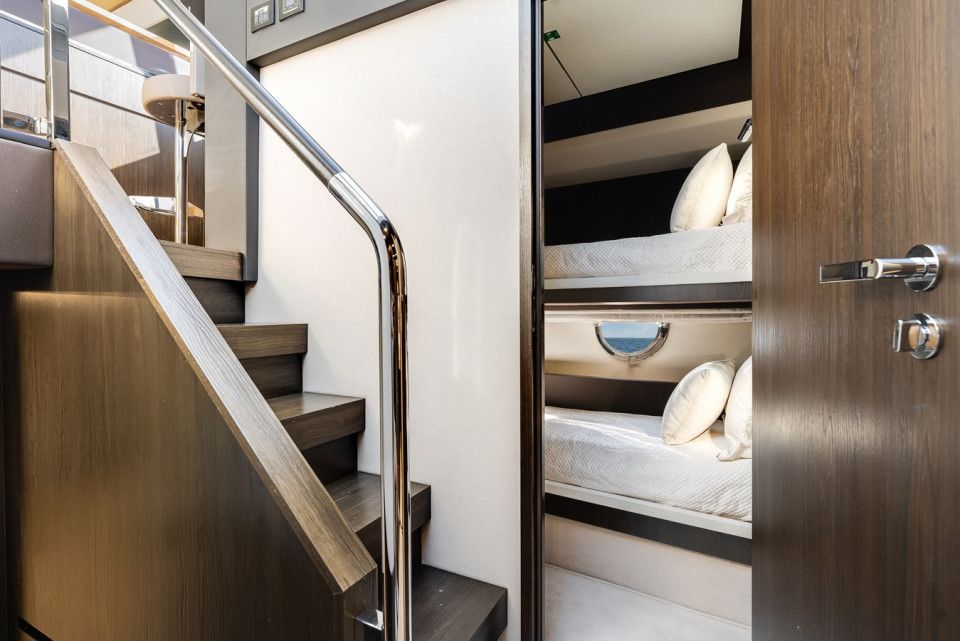

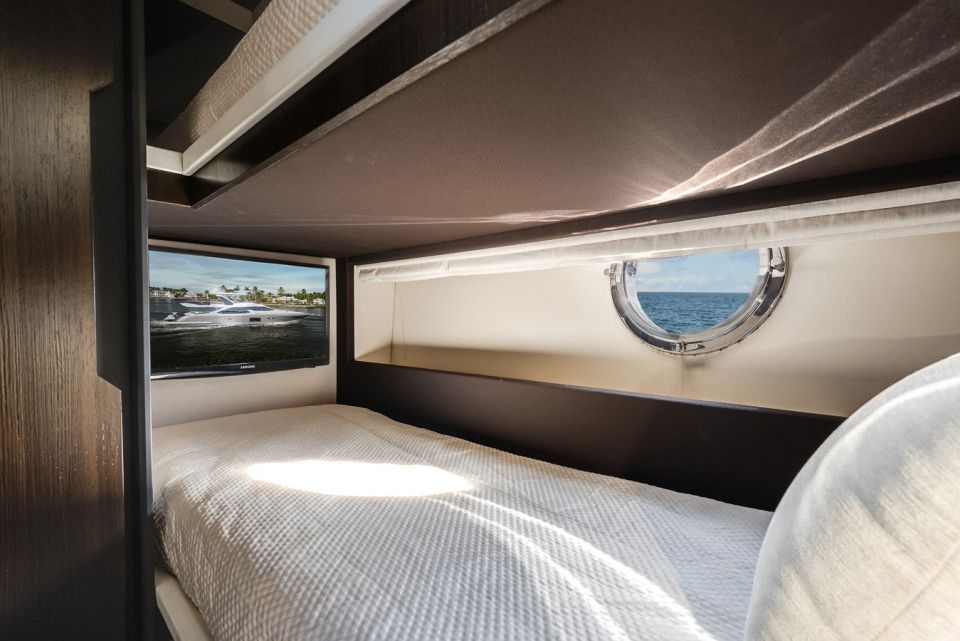

Guest Cabin (Port Side)
- Two pullman-type beds
- Mattress, pillows and bedspread
- Central bedside table
- Wardrobe with hanger bar and shelves
- Window with openable portlight
- Reading lights
- LED lighting on ceiling

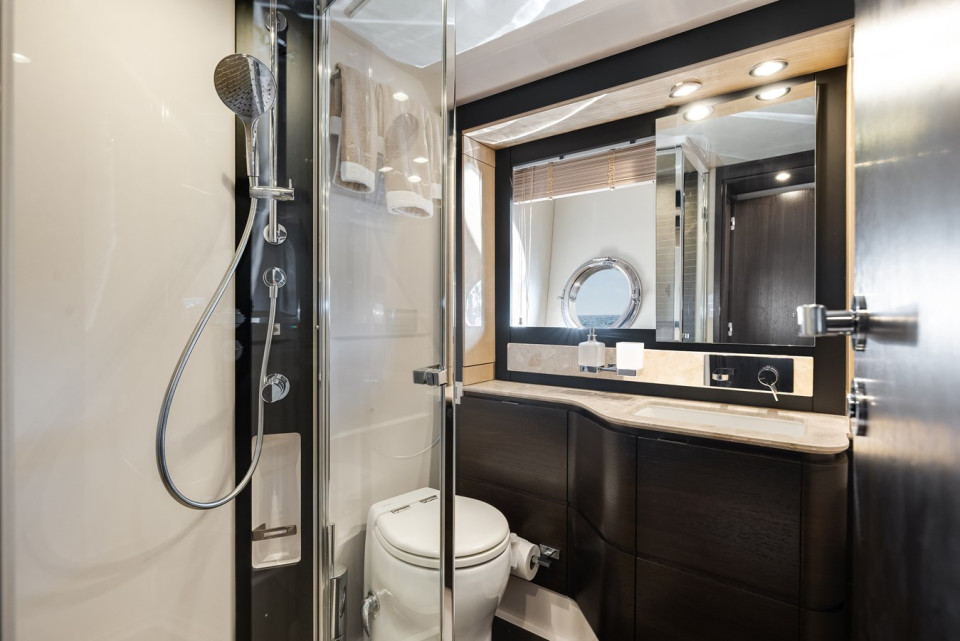

Guest Head
- Access from guest cabin and from corridor
- TECMA toilet
- ABS washbasin with chrome mixer tap and marble head top
- Cabinet with storage under the sink
- Wall unit with mirrored panel
- Shower with mixer tap
- Owner type shower enclosure with glass door
- Wooden flooring
- LED spotlights
- Openable portlight with Venetian blind
- Air extractor in the shower enclosure
- Head accessories
- Carpeted floor

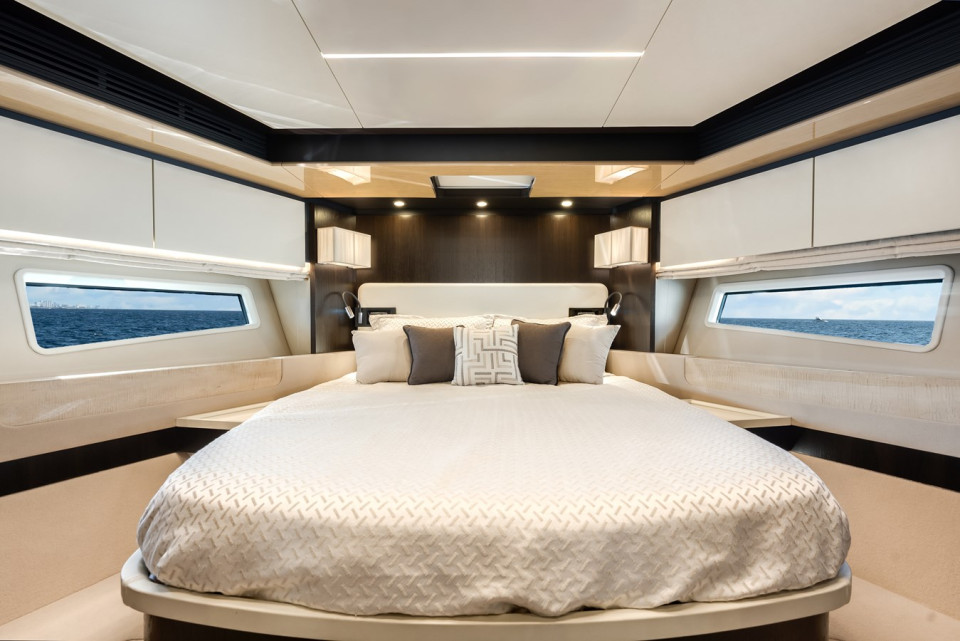

VIP Cabin
- Located at the bow of the below deck area, it is accessible from the central corridor
- Folding double bed with storage underneath and storage drawer
- Mattress, pillows and bedspread
- Two wardrobes (one per side)
- Four wall units (two per side) with folding panel above the windows
- LED strip on ceiling and behind curtain pelmet
- Reading lights
- LED lighting on ceiling
- Window with openable portlight
- Hatchway for accessing the fore sunbed area
- Provision for TV system
- Carpeted floor
VIP Head
- TECMA toilet
- ABS washbasin with chrome mixer tap and marble head top
- Cabinet with storage panel
- Shower with thermostatic mixer tap
- Shower enclosure: flat glass door
- Mirrors
- Wooden flooring
- LED spotlights
- Openable portlight with Venetian blinds
- Air extractor in the shower enclosure
- Wall units
- Head accessories
Crew Room
Crew Cabin
- Access from watertight door on platform
- Two beds
- Mattress, pillows and bedspread
- Wardrobes, wall units and under-bed lockers
- One oval portlight on starboard side
- LED lighting on ceiling
- GRP non-slip floor
- Fabric curtain for portlight
Crew Head
- Access from crew cabin
- TECMA toilet
- One oval portlight
- Washbasin with chrome mixer tap with extractable shower head
- Shower with transparent Plexiglas door
- Head accessories
Electric System
Voltage Levels On Board
- 1100 V AC - 60 Hz
- 24 V DC
- 12 V DC
Galvanic Current Insulation
- Zinc anodes
Generator
- One 20 kW / 60Hz generator in the engine room
Shore Power Sockets
- Two 220 V - 60 Hz power sockets
- The AC power sources are controlled from the main electric panel in the crew cabin, with a digital multimeter for the 220 V network
- The power sources are protected by a power circuit breaker, and introduced into the network by means of remote control switches
Batteries
- Batteries 90 Ah - 24 V, including:
- Six for services
- Four for engine start-up
- One GM battery 50 Ah - 12 V for generator
- One GM battery 50 Ah - 12 V for bow thruster
Battery Charging
- One battery charger 12 V - 10 A for generators
- One battery charger 24 V - 80 A for service and start-up batteries
Utilities - Electric Panels
- The main electric panels are installed in the crew cabin (main panel) and dinette
- Junction boxes are installed in all areas
Lights and Sockets
- 24 V lighting: LED spotlights on ceiling, emergency lighting, and ceiling lights
- 110 V AC sockets: main lighting
- 12 V DC sockets: cigarette lighter type
Electronic Navigation Instruments
- For STD equipment, see the paragraphs on “Flybridge” and “Wheelhouse”
- For a detailed list of alternative/ additional equipment available, please refer to the Optional price list
Bilge System
- Three automatic electric pumps 24 V, flow rate 224 l/min, in the cabin area, owner\'s cabin, engine room, and auxiliary sites
- One Supersub Smart 24 V electric bilge pump 24 l/min (2040 l/h, with 1 m head)
- Two manual pumps in cockpit and owner\'s cabin
- Three-way valve on engine cooling (emergency suction in engine room connected to one of the two engine seawater intakes)
- Three bilge level alarms
Fire Extinguishing System
- One 12 kg powder extinguisher with spray nozzles above engines and marine gears
Fuel System
- Two steel tanks, 1950 l each (total capacity 3900 l)
- Electronic level gage for port diesel tank on wheelhouse display
- Optical diesel level gage on starboard tank
- Refueling plug on each walk around, and vents on the bulwarks
- Two single filters
Fresh Water System
- 1000-liter stainless steel tank beneath the fore tray, towards the middle of the boat
- Filling plug on starboard walk around
- Level sensor with electronic gage on wheelhouse display
- 80-liter water heater - 220 V - 1200 W
- Pressure pump
- Hot/cold water in all heads, galley and platform shower head
- Cold water in engine room, cockpit and flybridge
- Fresh water toilet flushing
Gray Water System
- Water drainage into tank (200-liter capacity) in fore area
- Level sensor with automatic pump and alarm control from the wheelhouse
- Water drainage via manifolds 24 V membrane pump
- Additional tank (9-liter capacity) in polyethylene beneath the crew cabin and beneath the owner\'s head floor
- Level sensor with automatic pump activation
Black Water System
- One tank, 350-liter capacity, in fore area
- Level sensor - tank drainage is controlled manually from the wheelhouse
- Water drainage via 24 V membrane pump
- Vent on bulwark, with anti-odor filter
- Suction point from the shore, on port walk around
Seawater System
- Engine cooling with two dynamic 3\" seawater intakes with filter and valves
- Generator cooling with one seawater intake (1\'\') with filter and valve, submerged outlet
- Conditioner cooling with one dynamic seawater intake (1\'\') with filter and valve, submerged outlet
- Chain washing pump with one dynamic seawater intake (1\") with valve
Engine Room
- Access from door in cockpit
- Bilge drainage pump through engines cooling circuit
Exhausts
- Submerged discharge system with minimum external bypass
- Stainless steel exhaust manifolds
- Structural mufflers in GRP
Air Conditioning System (OPT)
- CONDARIA cooling system for air conditioning (water system), World version - 103,300 BTU
- A/C COMPRESSOR:
- One single compressor in engine room, on port side of generator, with electric panel facing towards the center of the boat
FANCOILS:
- One AP1 4480 BTU/h PORT GUEST CABIN
- One AP3 6200 BTU/h STARBOARD GUEST CABIN
- Six AP5 9200 BTU/h VIP, CREW, SALOON (55200 BTU/h)
- Three AP8 12500 BTU/h OWNER, WHEELHOUSE, AND WINDSCREEN (37500 BTU/h)
- Control panel for each area
Ventilation
- Head air extraction system via 24V gas extractors with control in head
- 2 fans and 2 extractors in engine room with grating on walk arounds
Other Systems
- Interceptor system (Zipwake)
- 24 V electro-hydraulic pump for trim tabs
- 24 V electro-hydraulic pump for gangway and bathing platform
- Electronic steering system SEASTAR EPS
Equipment
- One telescopic boat hook
- Five mooring lines
- Fender lines: 24 m
- One anchor chain stopper
- Eight fenders
- Eight black fender covers
- One Owner\'s manual
- One AZIMUT document folder
- One wooden boat model
- One AZIMUT warranty service booklet
- One set of stainless steel cutlery
- One set of porcelain plates
- One set of glasses
- One set of stainless steel pots and pans
- Four sets of towels with logo
- Four floating keyrings
- One large bag with logo for manuals
- One remote control holder with logo
- One shower pipe storage bag
- One stainless steel scheduled maintenance kit
- Covers for flybridge cushions and instruments, and cockpit
- Net window coverings
