Tender: Novamarine 400 DL, 4 metre RIB + Honda 50 hp outboard
Jet ski: 1x Bombardier XPDI - Special hydraulic slip system

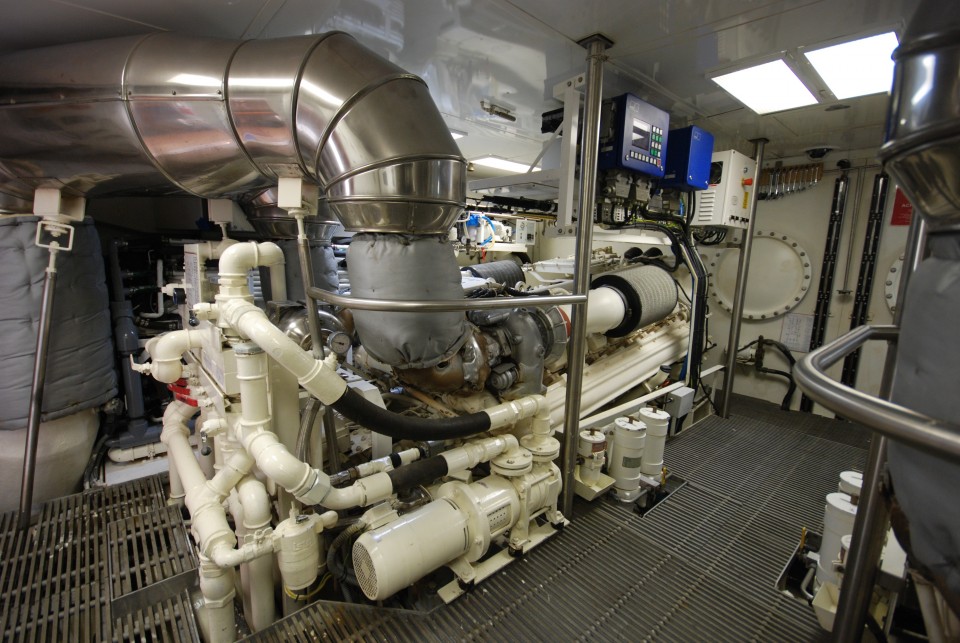

MACHINERY

Main Engines: 2 x MTU 16V 2000 M91 Charge Air Cooled, Turbocharged, Electronic Governed, Marine Diesel Engines 2000 HP (1471 kW) @2350 RPM

Gearboxes: ZF 2555, reverse/reduction gearboxes, ratio 1:2.462

Shafts/Propellers: ’’Inline’’ shafats of Aquamet steel alloy, water lubricated stern bearing + 2 outboard ’’P’’ brackets. 2 x Propellers, Dia.1080 mm 5 Blade NAB running in partial tunnels

AUXILIARY MACHINERY & ELECTRICAL SYSTEMS

Water maker: AQUABASE, 200l per hour
Generators: 2 x HFL
Marine Generator Sets: 3 phase, 230/400 volts AC 50 Hz/(60 kW)
Perkins Base Engine: (4 Cyl. rated @ 1500 RPM)
Electricity: 230 volts AC 1 phase 50 Hz; 400 volts AC 3 phase 50 Hz
Shore Power: MAGNUS MARINE Electronic Conversion Shore
Power Convertor Output: 80 kVA, 180-520VAC 50-60 Hz, mono or 3 phase with synchronisation, dual shore cord
Batteries: 24 volt DC Systems Gel

Batteries with Dolphin chargers 2pcs.:

120A 3pole
800Ah 24V Domestic
400Ah 24V Engine Starting
200Ah 12V Radio/Coms)
200Ah 12V Service

Inverter: Mastervolt 24V to120V
Converter: MAGNUS MARINE 400V to 230V

ANCILLARY EQUIPMENT

Steering System BCS twin hydraulic ram, twin balanced rudder arrangement with interlink.
Bow Thruster 36 kW/50 hp, Hyd. powered via PTO
Stern Thruster 36 kW/50 hp Hyd. powered via PTO + WESMAR Stabilizers
Fuel Filters Racor D-75/1000MAX Racor D-*500MAM30
Fire/Bilge Pump 1 x Biergans AM 50EM2 T50, 40m³/hr 400VAC
1 x ACM 401BT, 24VDC, 14m³/hr 4xJabsco 3550
Boiler 2 x G&R, 200 litre Electric Hot Water Boiler 5+5kw

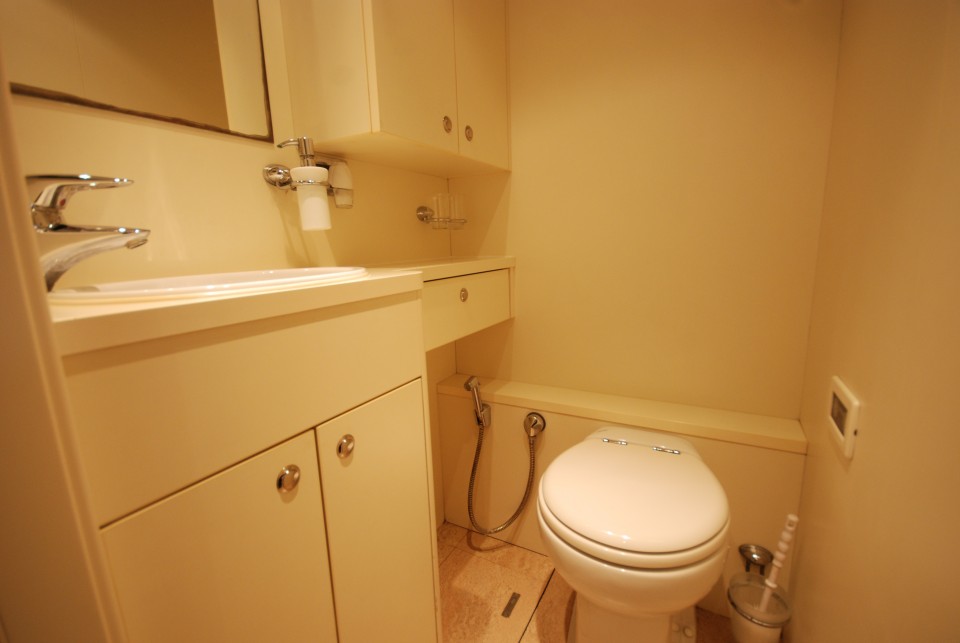

WC’s 6 x TECMA Marine WCs, sea water flush plus integral Water bidet
Air Conditioning HFL Chilled Water AC Compressor Plant 280,000 BTU Individual fan coil units for each room

SAFETY & SECURITY EQUIPMENT

Safety Watertight bulkheads 4 towing, Rope Rocket Line Thrower
1 x JOTRON SART
1 x JOTRON EPIRB
1 x Axis50 GMDSS VHF
Life Rafts 3 x 8 Man VIKING RescYou™ Raft Pro, Self-righting life rafts with SOLAS ’’B’’ packs in GRP containers with float free hydrostatic release units.

Lifebuoys 4 x Lifebuoys (2 with buoyant lines, 2 with smoke/light)
Lifejackets 14 x SOLAS Lifejackets 4 x SOLAS (Child size)
Fire Fighting Engine Room CO2 Installation - Batec
Fire Hydrant Sea Water Fire Hydrant System - fore & aft deck
Fire extinguisher blanket
Portable Fire Extinguishers

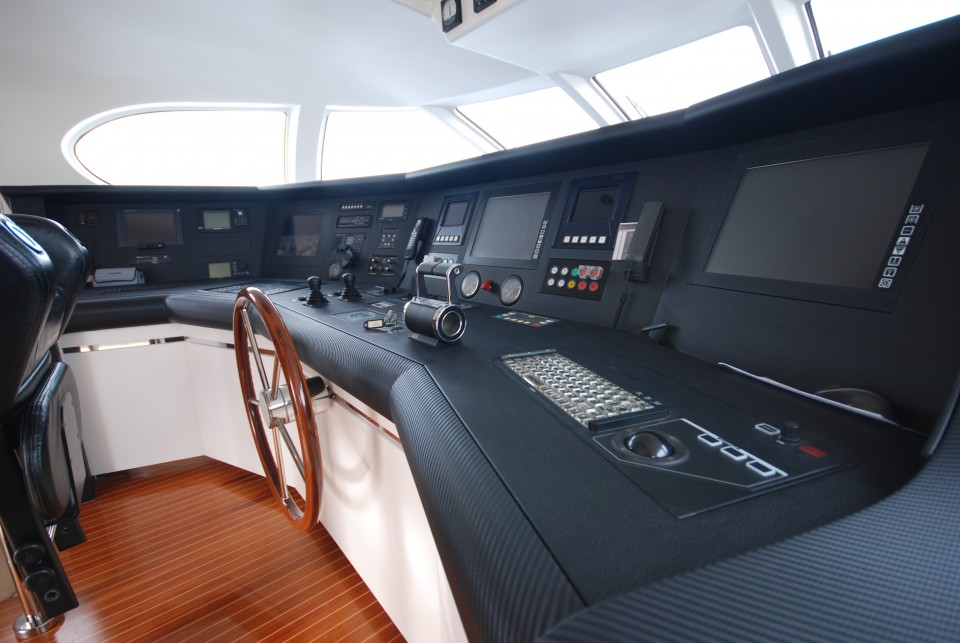

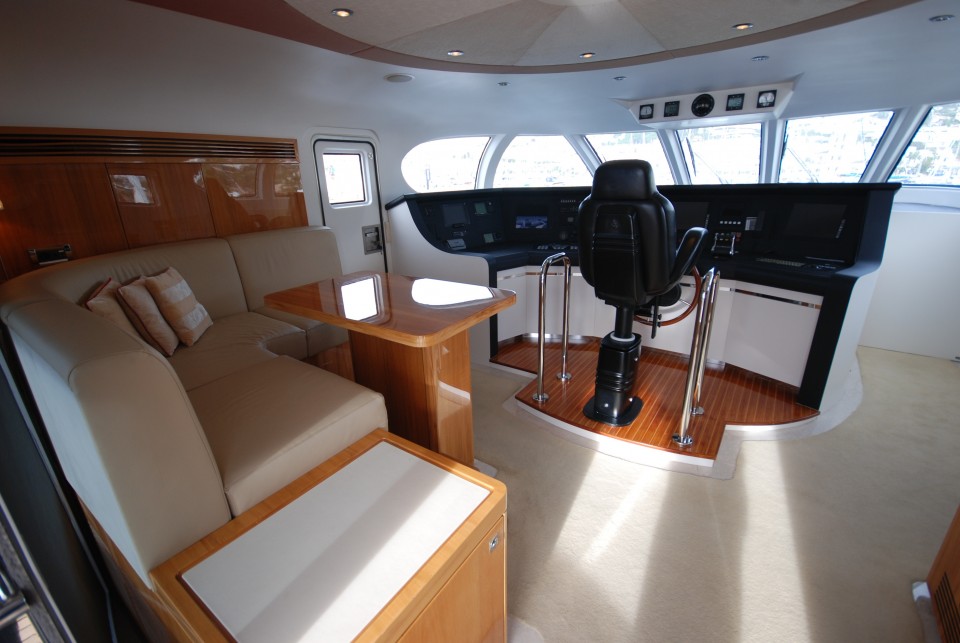

NAVIGATION EQUIPMENT

Magnetic Compass 1 x Cassens Plath mainhelm
Sat. Compass 1 x Simrad HS50
Auto Pilot Simrad AP50 Hand remote, heading signal from Simrad HS50 and Rategyro/Fluxgate RFC35R
Depth Sounder Forward looking sonar FLS Gold
Radar Simrad RA83 Single 4’ Scanner GPS GPS signals from Simrad HS50 & Simrad GN33S/W
Weather Fax Navtex NAV-5
Chart plotter Simrad chart system CS 55 15’’TFT
Wind Inst. Simrad IS 15 with lot/log

DECK EQUIPMENT

Anchor Windlass 2x 3500 watt/24 volt
Lofrans Vertical Aft Warping
Capstans Lofrans 2x1500watt/24VDC
Ground Tackle Anchor 2x 128 kg High Holding Power
Chain 2x 110 metres, 12,5mm stud link
Boat Crane Besenzoni Hydraulic Crane Type G 309 600 kg
Passerelle Besenzoni Hydraulic
Passerelle Type PI 383

AUDIO VISUAL ENTERTAINMENT SYSTEMS

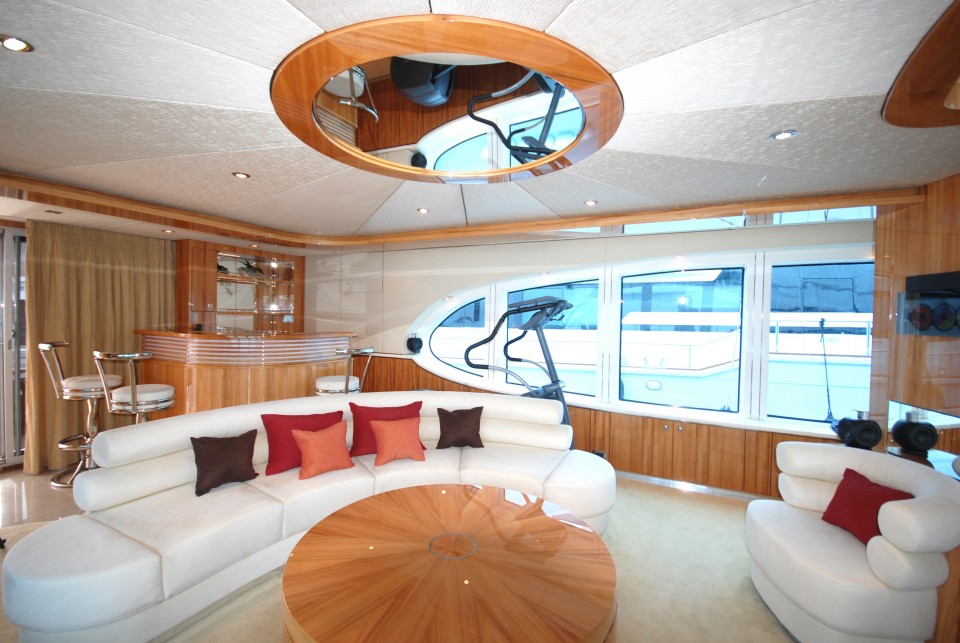

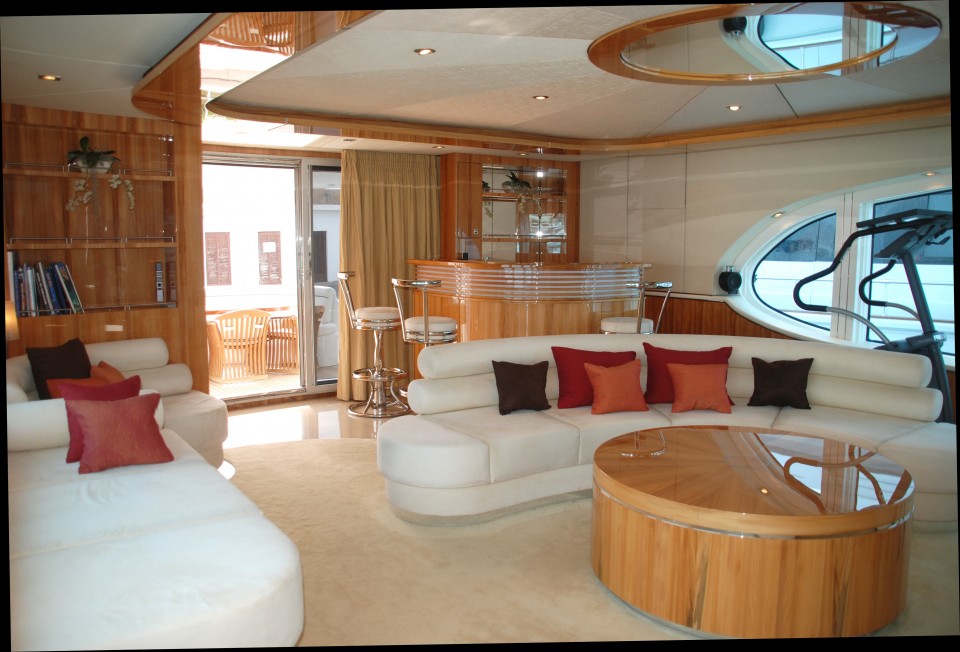

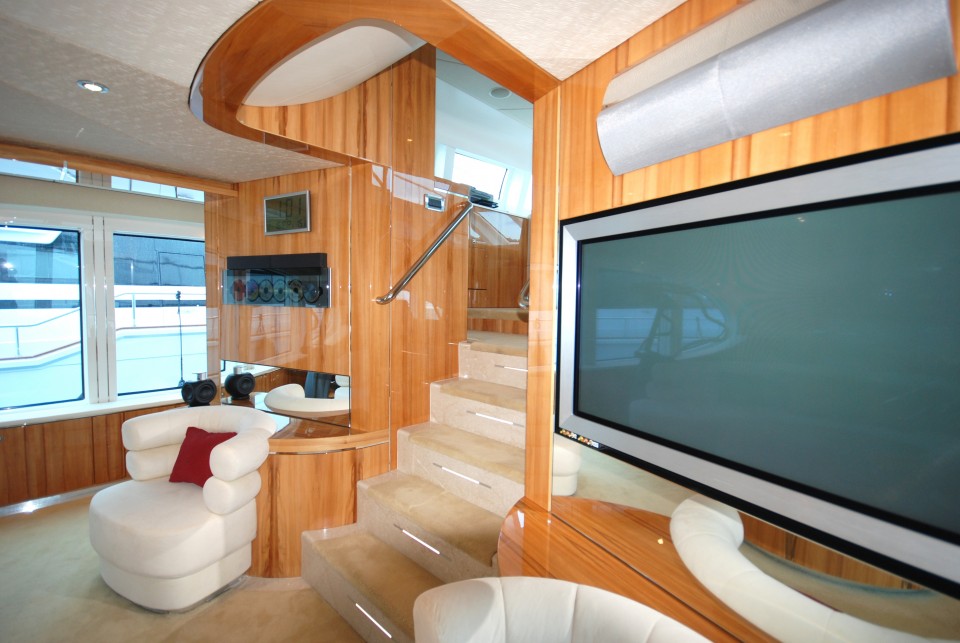

Salon: Beo-Sound 9000 Audio/Hifi
BeoCord V8000 video recorder
B&O DVD player
BeoVision 4-42 TV
Karthrein Sat receiver UFD590
Sonance Ceiling speaker

Owner’s Suite: BeoCenter2 audio/HiFi

Main Deck: BeoVision 5 TV
HT 502 speakers
Karthrein Sat receiver UFD590

Owner’s Suite: BeoVision 5 TV

Lower deck: HT 502 speakers; Karthrein Sat receiver UFD590
Guest Cabins: BeoVision 6 TV; BeoCenter 2 audio/HiFi; HT 502 speakers; Karthrein Sat receiver UFD590

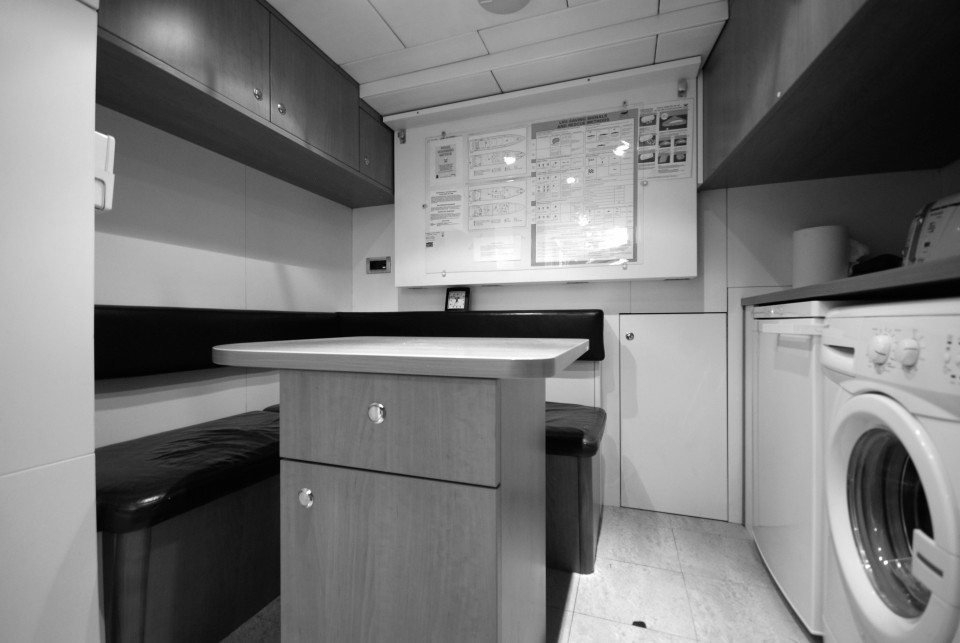

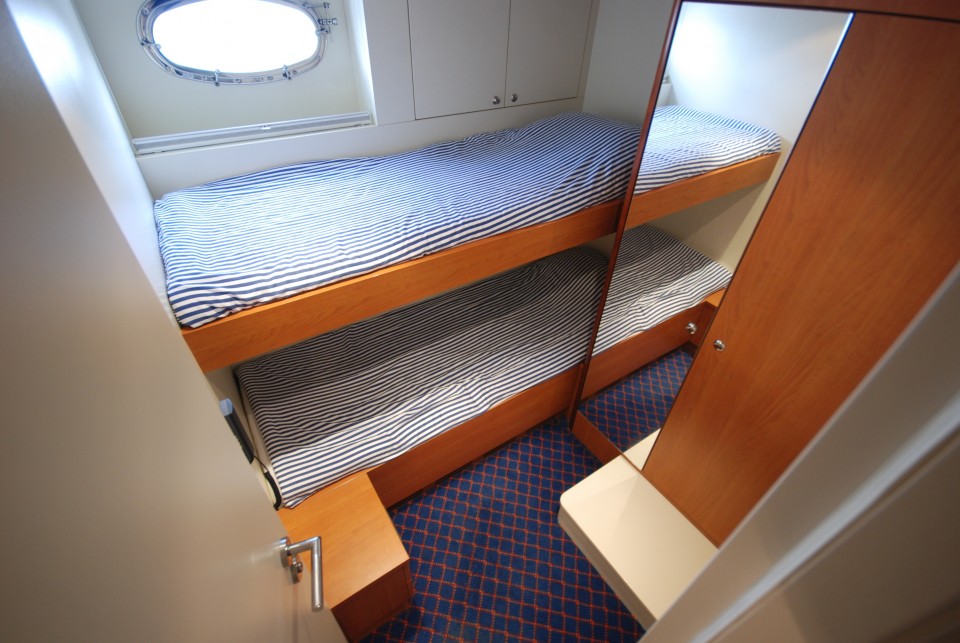

Crew Cabins & Mess: 2x Sharp LC-15S1E TV; 2x Car radio; Karthrein Sat receiver UFD590
Dining Area: BeoVision 6 TV

Galley: Car radio

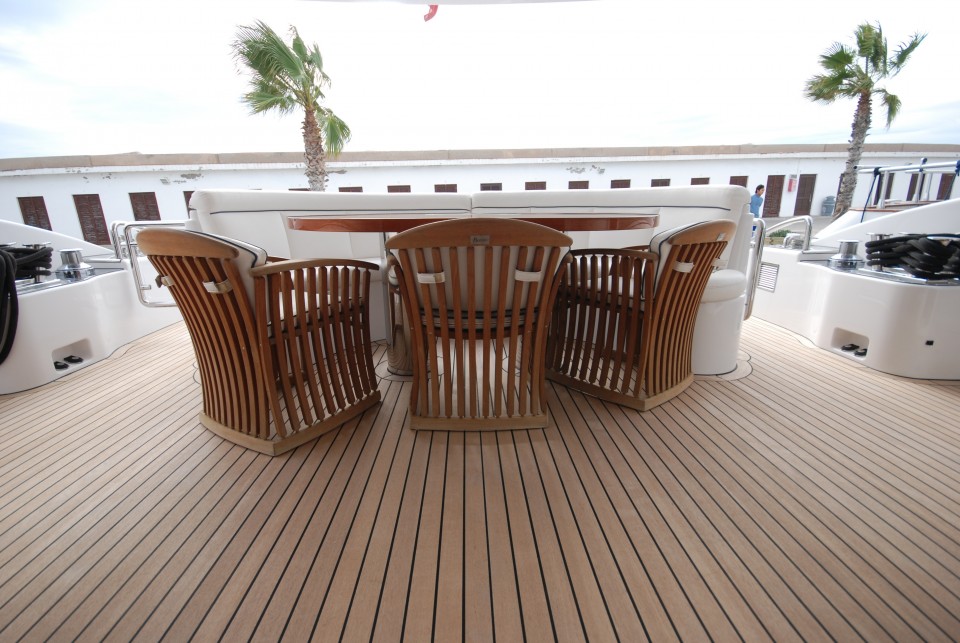

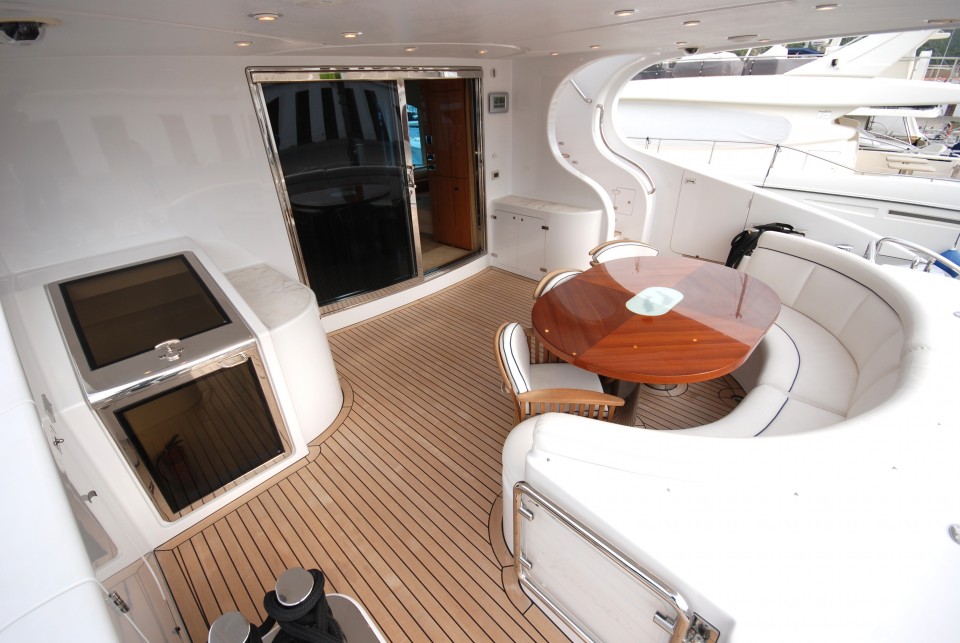

Aft Deck & Boat Deck Ceiling Speakers


DOMESTIC EQUIPMENT

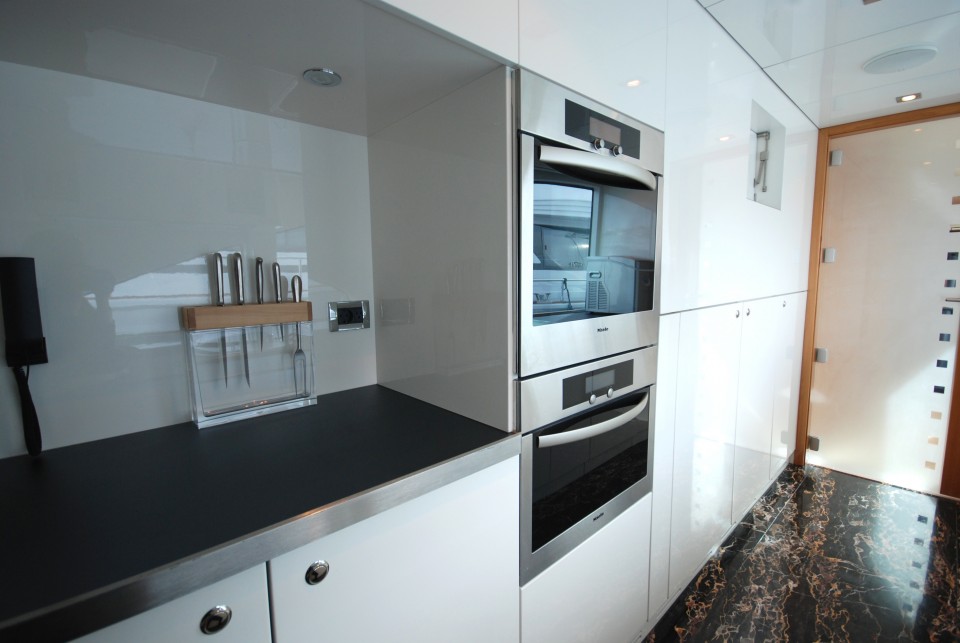

Main Galley Miele 4 ring cooking stove
Miele Air Extract Hood
Miele Oven
Miele Dishwasher
Miele Microwave
Miele Steam cooker
G.E.Footcenter; Icemaker
Miele Freezer
Miele Refrigerator
Miele Coffee Machine
Universal Trash Compactor
Miele Dish warmer
Liebherr Wine cooler

Crew Mess Siemens Microwave
Siemens Refrigerator
Siemens Cooking stove
Siemens Air Extract Hood
AEG Freezer

Laundry Miele Washing machine
Miele Dryer

Guest area Miele Refrigerator
Helm station Coolmatic Refrigerator
Owner’s Cabins Coolmatic Refrigerator
Salon Wesamat Icemaker
Miele Refrigerator
Liebherr Refrigerator
Fly Miele Grill

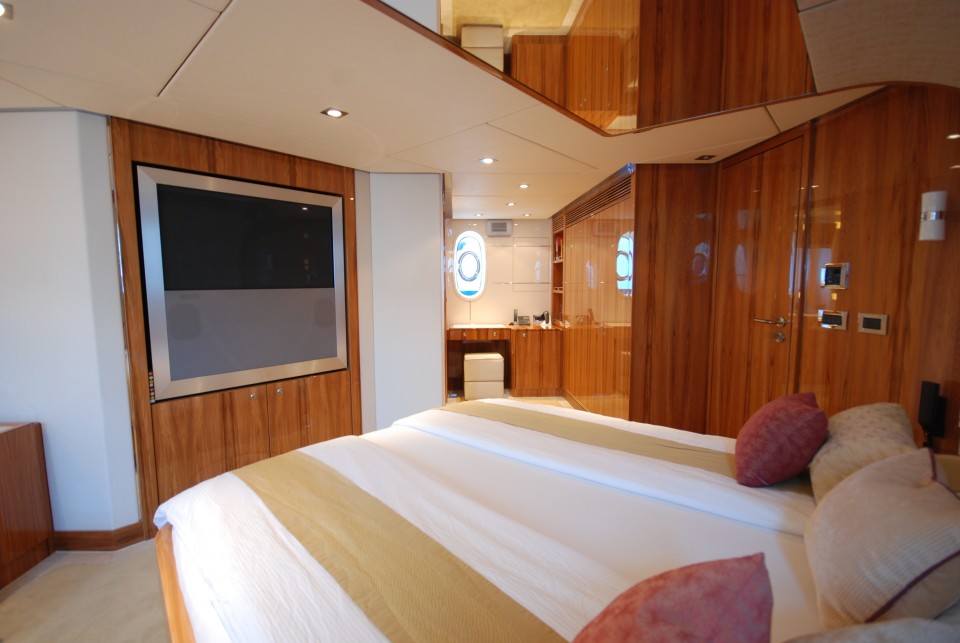

Owner’s Suite (Main Deck):

Split level Double Cabin with sitting area, lower level king-size bed

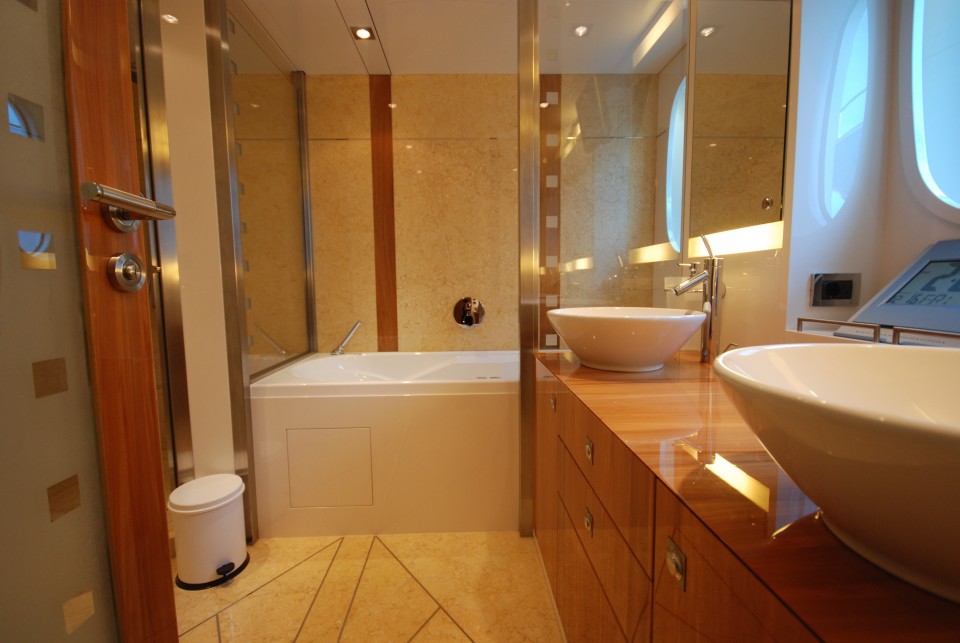

Higher level en-suite bathroom with combination Jacuzzi/bath/shower, twin wash stand, WC and bidet

Owner’s cabin (Lower Deck):

Double Cabin with sitting area, desk and large wardrobe.
En-suite bathroom with combination bath/shower, wash stand and WC.

Guest Cabins (x2):

Twin cabins with shower room’s en-suite.
