Steel hull, aluminum superstructure, teak decks
General | |
Length Overall (L.O.A.): | 170.61 feet (52.00 meters)
|
Beam (molded): | 29.60 feet ( 9.00 meters) |
Draft (loaded): | 10.00 feet ( 3.05 meters) |
Tonnage: | 628 gross tons; 188 net tons; 653 displacement tons |
| |
Capacities | | |
Fuel Capacity: | 31,176 US Gallons | (118,000 liters) |
Water Capacity: | 4,755 US Gallons | ( 17,997 liters) |
Watermakers: | (1) @ 4,808 US Gallons | ( 18,200 liters) |
| (1) @ 2,404 US Gallons | ( 9,100 liters) |
Lube Oil: | 557 US Gallons | ( 2,110 liters) |
Waste Oil: | 520 US Gallons | ( 1,970 liters) |
Waste Water: | 1,442 US Gallons | ( 5,460 liters) |
| | |
| Speed | Consumption per hours | Range | RPM |
Maximum: | 15.0 knots | 400 liters/hr | 3,200 NM | 385 |
Cruising: | 12.5 knots | 280 liters/hr | 3,950 NM | 325 |
Economical: | 11.0 knots | 220 liters/hr | 5,000 NM | 290 |
Generators & Electricity
Generators:
- (2) 145 kW John Deer Generators (New July 2014)
- (1) 50 kW Cummins 4B 3.9 emergency generator
Generator Fuel Consumption:
- 520 liters/day per Generator
Shore Power:
- (2) 62.5 KVA Atlas shore power SPA 3 Phase
Output volts 400 output amps:
Input Volt:
- Atlas shore power conversion system
Batteries:
- Main engine start: air; charged: compressors
Generator start:
- 24V batteries charged Mastervolt charger
Air Conditioning:
Type: Marine Air – 52 Air handlers
Other Machinery
Watermakers:
- (1) Watermakers WMSQ-45000 (rebuilt Feb/2024)
- (1) Watermaker WMSQ-3000 (rebuilt Feb/2024)
Stabilizers:
- Koopnautic SR3575/4080 SVA (At Anchor)
Bow Thruster:
- HRP 200-60E 110 kW Hp (rebuilt 02/2024)
Steering System:
- Rolls Royce/Tenjford JR 2.160 ram type
Fuel Separator & Filtration:
Sewage System:
Helm/Control Stations:
- (4) Located bridge/Port wing station/Stbd wing station/Emergency Local Engine Control Completely renewed new control system (Oct/2022)
Communication Systems
VSAT:
SATcom:
- (1) new 2022 Iridium LT-3100s GMDSS system
Starlink:
- (2) new 2022 Starlink Maritime installed onboard
GSM internet:
- (2) new 2022 PEPWAVE 5G antennas
Telephone System:
SSB:
VHF Fixed:
- (1) Furuno FM8800S DSC-VHF
- (1) Sailor RT4822 VHF-DSC
VHF Handheld:
Cellular Phone System:
Intercom:
Internal Ship’s Communication:
Hattera Screens:
- (1) 22” Touch screen
- (4) 19” screens
Furuno Sat C:
- (1) new 2017 with Furuno printer
Navigation Systems
Radar:
- (1) Furuno 2110 X-Band; Range 120 nm
- (1) Furuno 2110 S-Band; Range 120 nm
Gyrocompass:
- (1) C-Plath Navigat MK1 (new Nov 2015)
Magnetic Compass:
Auto Pilot:
- (1) C-Plath Navipilot V HSC
Depth Sounder:
- (1) Furuno ED2200 wing station repeaters
Video Sounder:
- (2) Furuno FCV-585 with (2) transducers fwd and (1) aft
GPS:
Ships Computer:
- (2) Nav PC Custom
- (4) HP PC
- (1) HP PC
IT Server:
- (3) New servers and complete new state of the art IT/WI-FI throughout vessel
Printers:
Chart Plotter:
- (2) new 2023 Wartsila RS8 full ECDIS
- (1) Maxsea new September 2017
Wind Indicator:
- (1) Thomas Walker (relative) + Furuno RD-30 weather station
Speed Indicator:
- (1) C-Plath Naviknot III speed log
Navtex:
AIS:
(1) Furuno FA-150 universal
Entertainment System:
Central Ship’s Audio:
- Complete new A/V throughout vessel e.g. Central system includes a Kaleidescape server linked to a new RTI control system. In addition there are new Mini iPads throughout the vessel for controlling the A/V and music server in addition to public areas (Party Mode), Apple TV, airplay.
- All lower Guest cabins A/V systems are in two individual racks with dual SAT TV/DVD/Kaleidescape
- (Complete new AV system July 2014)
- All apple tv devices renewed Mar/2023
- All access points renewed Mar/2023
Audio/Video Equipment
TV’s:
- (2) KVH HD 11 TV antenna’s (new 2016)
- (1) Samsung Flatscreen 26’ – Captain cabin (multisystem)
- (12) Samsung 22’ LCD/DVD – 6 Crew cabins (multisystem)
- (1) Samsung 50” curve – Crew mess
- (1) Samsung 85” – Skylounge

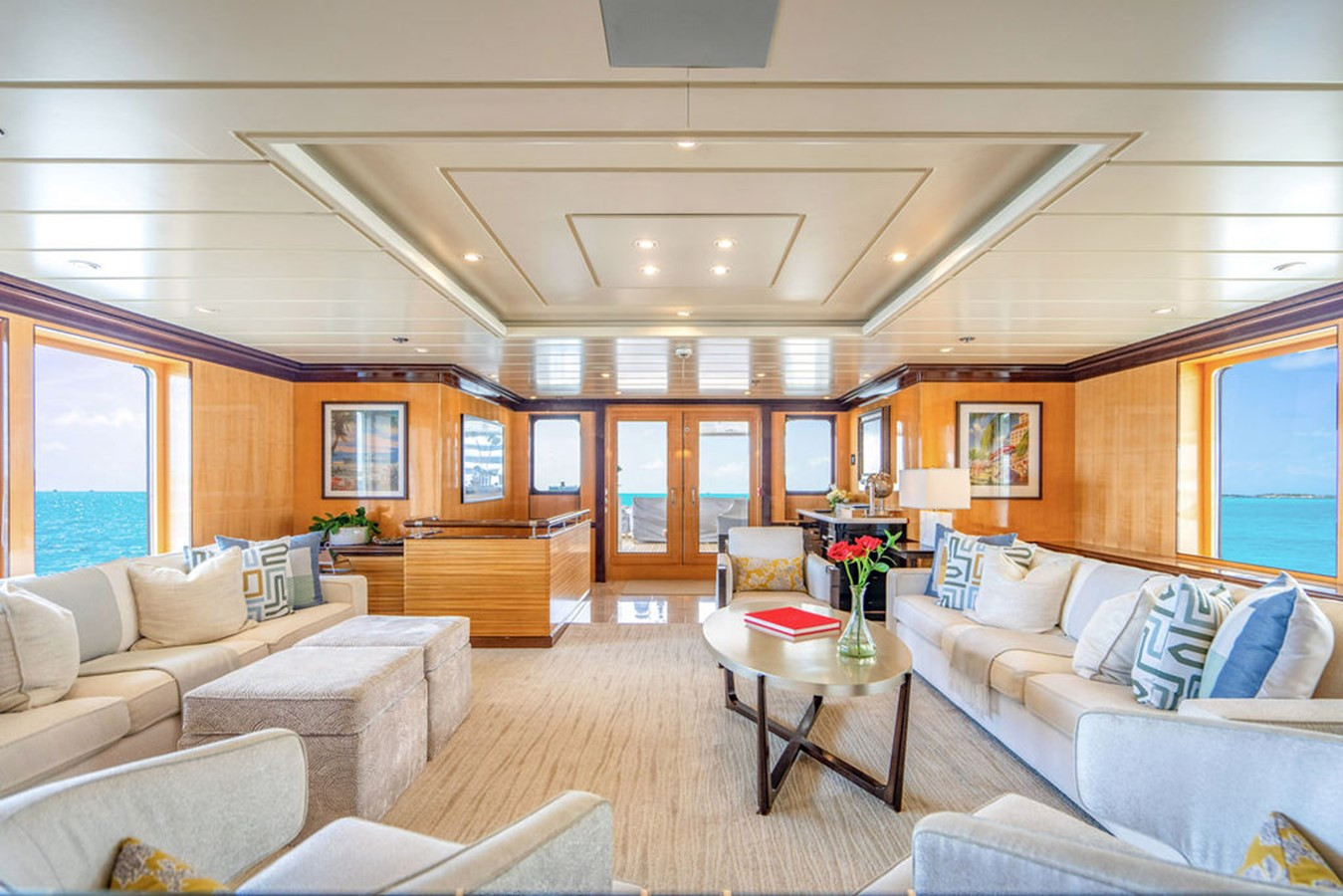

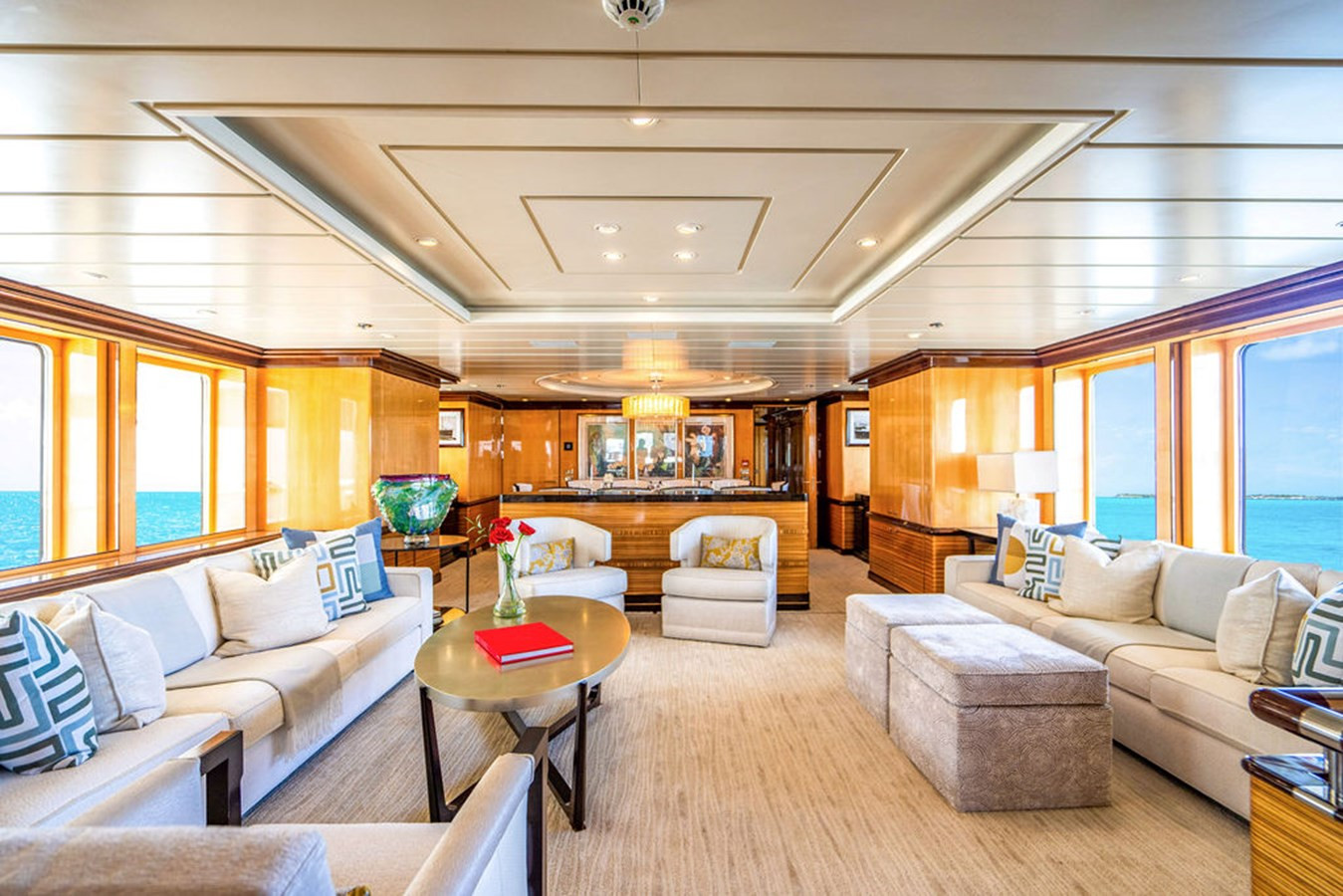

- (1) Samsung65” – Main salon

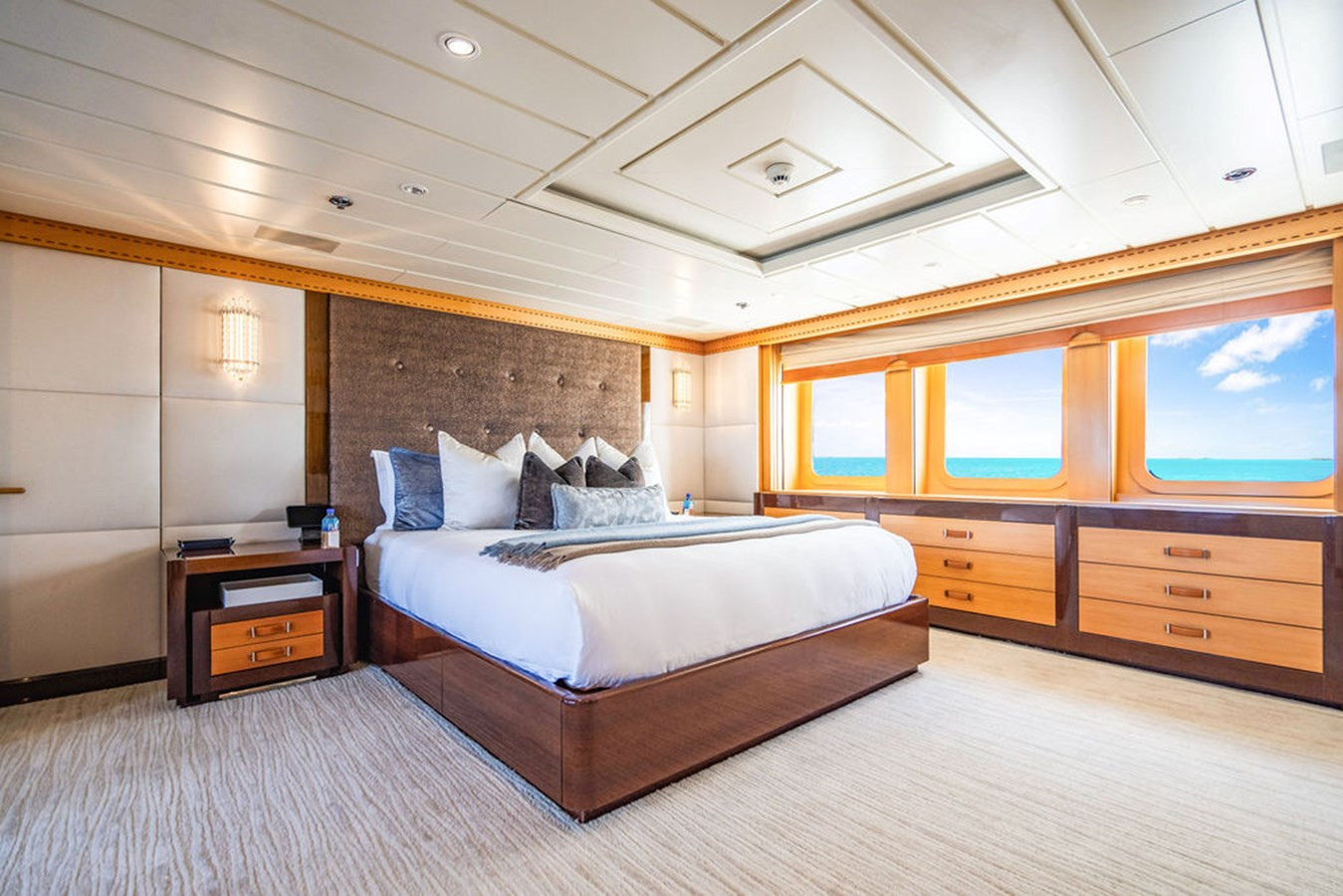

- (1) Samsung 55” – Master cabin
- (1) Samsung 55” Master office
- (2) Samsung 42” – Guest cabins
- (2) Samsung 33” – Guest cabins
- (1) Marantz – Crew mess
- (1) Marantz – Skylounge (new 2017)
- (4) Marantz – Guest cabins
Stereos:
- (1) Marantz – Skylounge
- (1) Marantz – Master cabin
- (1) Marantz – Main salon
iPod Stations:
Main Galley Equipment Cooking Equipment: - (1) Schott 4-burner range
- (1) Wolf 30’’ E Series convection steam oven (CSO30PE/S/PH) (new Feb/2024)
- (1) Mielie oven H 2455 BP active
Refrigeration/Freezer: - (2) Metos MMC 600 refrigerators
- (1) Liebherr Freezer
- (1) Dometic wine fridge (Pantry)
Dishwasher: - (1) Winterhalter UC Series dishwasher
Other: - (1) Dumbwaiter located galley/pantry/Sundeck
General Galley: - Built in deep fryer, built in grill, Kitchen Aid mixer, Hans Dampf Combi steamer 6.23, Paco Jet ice cream maker
Crew Galley/Mess Equipment Cooking Equipment: - (1) Severin 900 microwave
Refrigeration/Freezer: - (1) Smeg fridge
- (1) Liebherr 4177 wine cooler
Other: - (1) Miele 67856 dishwasher
- (1) Uson Marine AB trash compactor
Additional Galley Equipment Refrigeration/Freezer: - Fridina BV built in walk-in 2.7m2 refrigerator
- Fridina BV built in walk-in 1.65m2 freezer
Other:
- (4) Ice machines
- (1) main deck aft
- (1) sundeck
- (1) pantry
- (1) Lazerette
Laundry Equipment: Main Laundry Equipment - (3) Miele Professional dryers
- (1) Sanuzzi Lindo 100 Washers
- (2) Miele Washers
|
Tenders:
- (1) Novurania 24’ with diesel Volvo Inboard (Fully refurbished 2023. New pontoon, engine, drive train, electronics including wiring)
Dive Gear and Toys:
- (1) Bauer C2E dive compressor with 5 full dive sets
- (2) Yamaha Delux 3 seater wave runners 2016
- (1) New FunAir 26ft slide
- (1) New Inflatable Sea pool with jellyfish net
- (4) Inflatable paddleboards
- (2) Lyft E-foil boards
- (2) Towable chariots
- (2) Wakeboards
- (1) pair water skis
- (8) Deep sea and jigging Fishing gear
Anchor Windlass System:
- Steen, single motor horizontal axis
Aft Warping Capstans:
- (4) Steen; (2) Fwd and (2) Aft
Anchors:
Anchor Chain:
Boat Crane and Davits:
- (2) Vandriel (1 fwd, 1 aft) – 2000 kg capacity
Accommodation Ladders:
- Stbd side electric-hydraulic (Overhauled 2022)
Stern Boarding Gangway:
- Aljo Yacht equipment, electric-hydraulic (Overhauled, including paint, new teak and lights 2024)
Spotlights:
Jacuzzi:
- Located on Sundeck for 6-8 people (Fully refurbished 2023 including paint, jets, lights, all pumps, motors, heater, wiring, plumbing)
Security Equipment:
CCTV System:
- Luma surveillance system (New 2020)
Cameras:
- (16) Engine room, Port/Stbd side decks, Aft deck, Mast, Bridge deck fwd and aft, Swim platform
Monitors:
- (3) Radio room, Crew mess, Bridge
Deck Sensors:
- Palladium Technologies; Three zones of deck sensors
Biometric Door Locks:
- (2) Biometric door entrances, Guest door, Crew door
Ship’s Safe:
- (6) Guest cabins, Master cabin, Captain’s cabin
Fire Fighting Equipment:
Fire Control System:
- (2) Fixed CO2, engine room + galley range hood
- Various smoke detectors, (41) smoke, (5) heat, (3) gas
- (1) Sprinkler system throughout vessel
- (All machinery, control, and salient components renewed Including new sprinkler pump and new stainless steel Freshwater water tanks 2024)
- (2) Asbestos firefighting suits – Viking Professional fire fighting suits, BA locker
- (14) Seawater firefighting stations within 15m of any point on the vessel
Fire and Bilge Fixed Systems:
- (2) Fire/Bilge pumps (renewed Feb/2024)
- (1) Emergency Fire/Bilge pump (renewed Feb/2024)
- (15) Pneumatic control valves (renewed 2024)
Portable CO2:
- (9) Near major electrical installations
Fire Extinguishers:
- (25) Various locations throughout vessel
Alarms:
- All door entries are connected to the Palladium Technologies, alarm system with door sensors
Alarm Key Pad:
- (2) Monitors, Crew door and Radio room
Safety Equipment
Life Rafts:
- (4) RFD Surviva MKII, 16-person, Class A
Life Rings:
EPIRBS:
- (2) ACR Globalfix with built in GPS
Flares:
Line Throwers:
- (4) Pains Wessex linethrower 250
Medical Equipment:
- Medlink supplied and approved first aid and medical kits
Sleeps up to 12 in the owner’s party in 5 staterooms with crew accommodations for up to 14 in 7 cabins

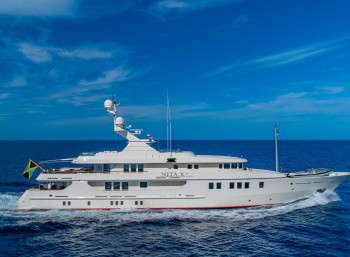

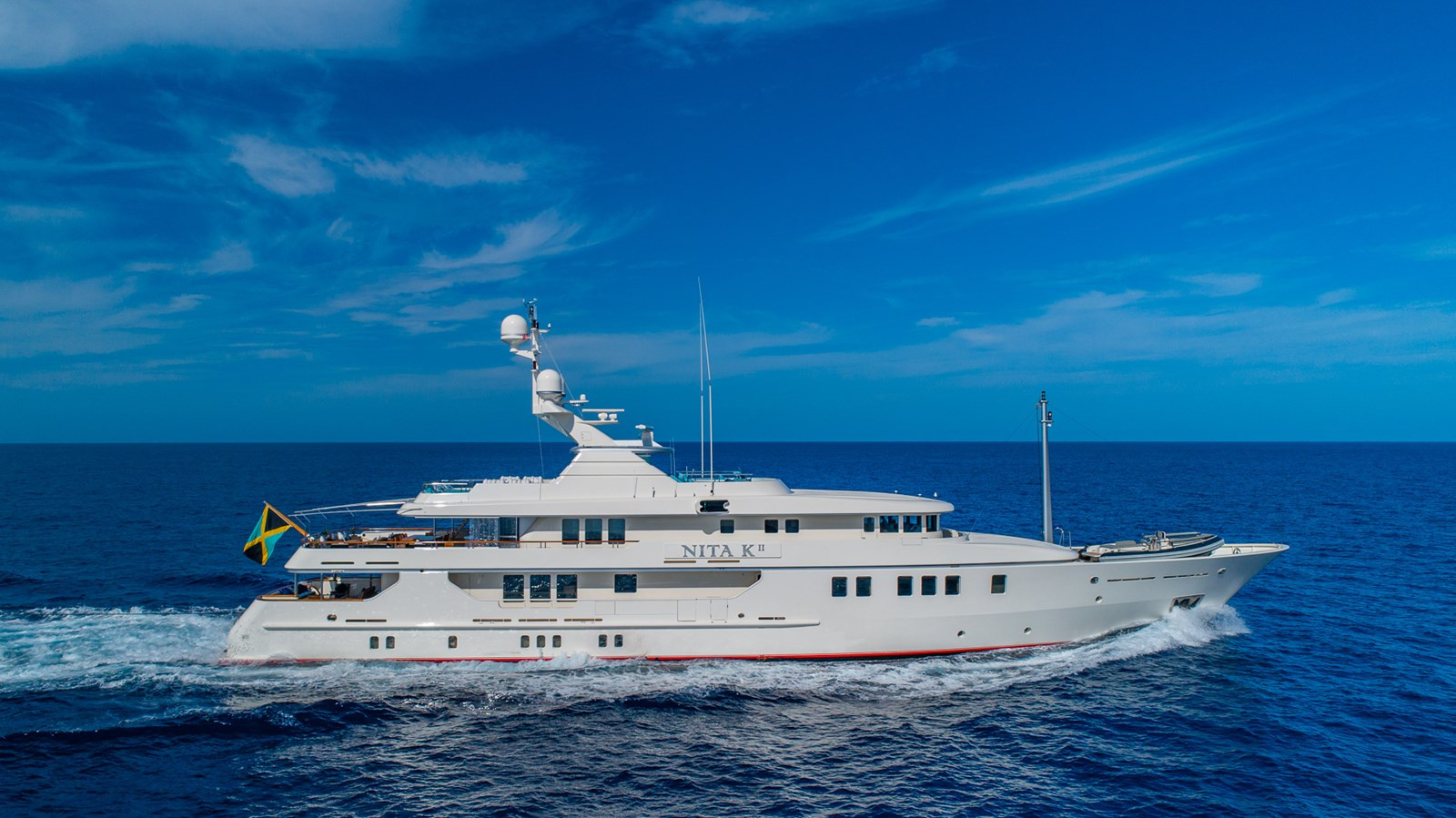

With a timeless, Dutch pedigree, NITA K II was built in 2004 by Amels, with refits in 2012, and 2016. Featuring classic exterior styling by Terence Disdale, and an exceptionally detailed interior design and decor by Alberto Pinto and Laura Sessa, generous accommodations are for 12 guests in 5 staterooms. The full-beam master stateroom offers an extensive, his-and-hers en suite, walk-in wardrobes, and an adjoining lounge or office for the ultimate in privacy.

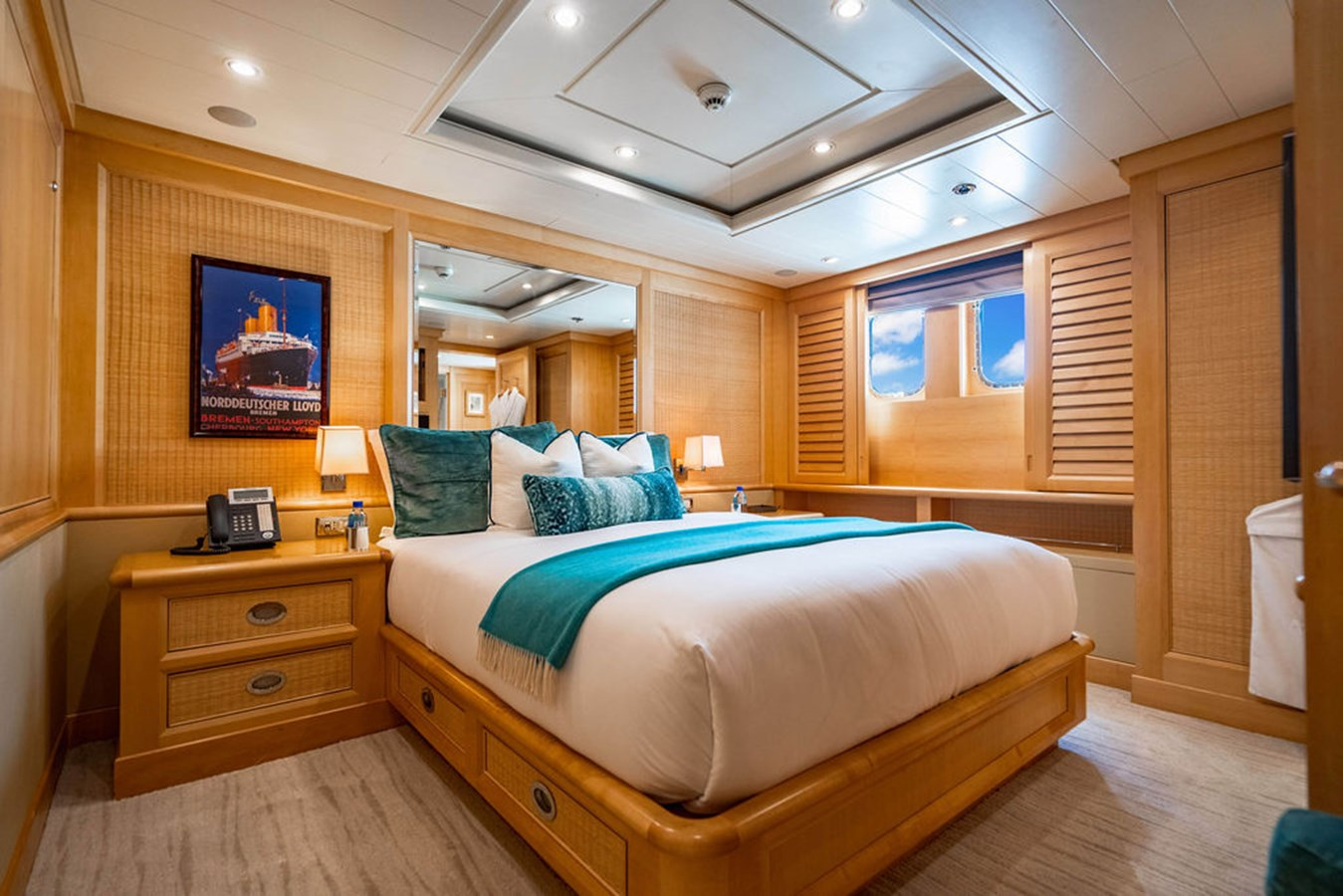

Four spacious, king guest staterooms are below, 2 of which are VIPs that offer large, jetted tubs and oversized showers.

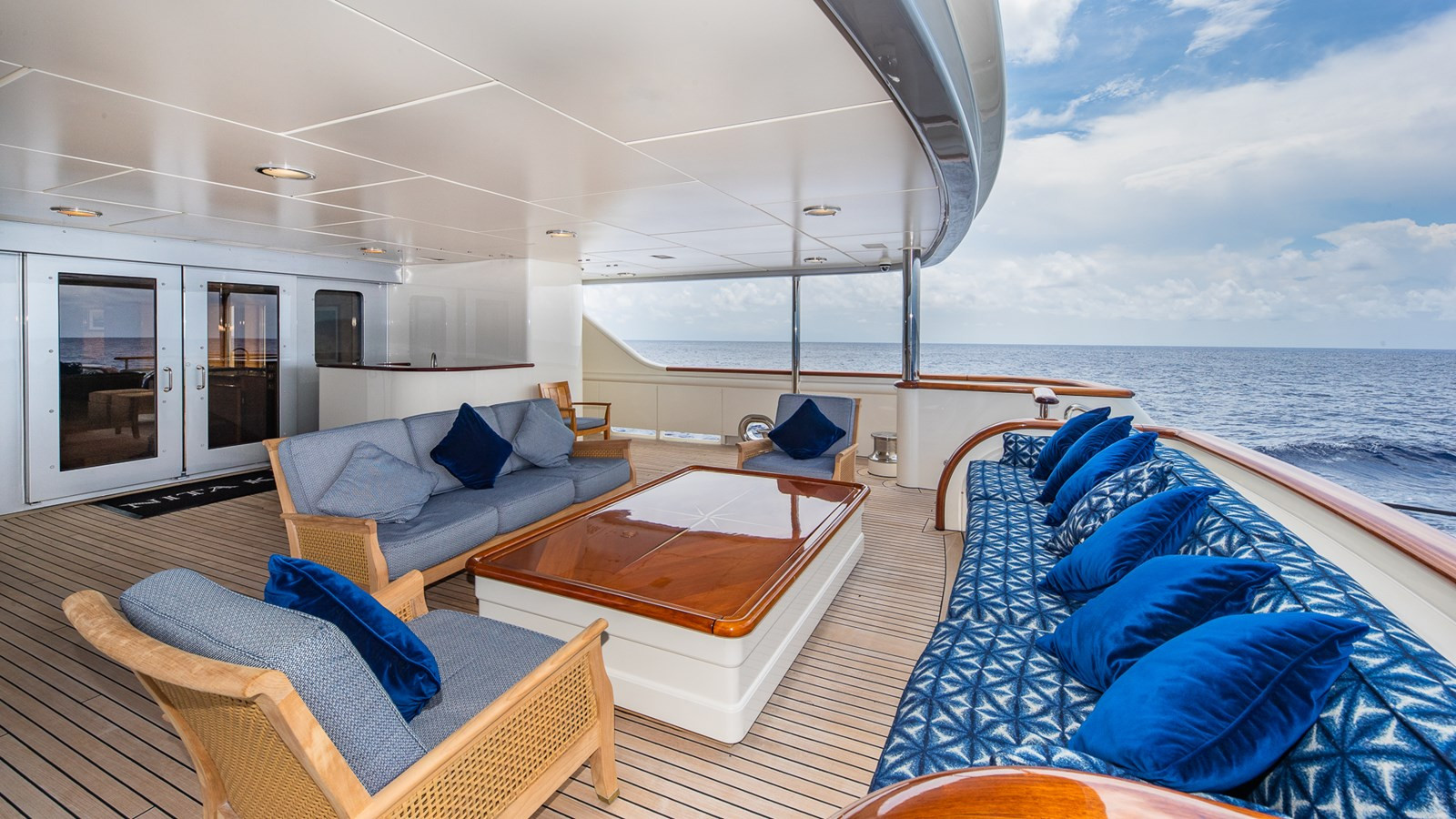

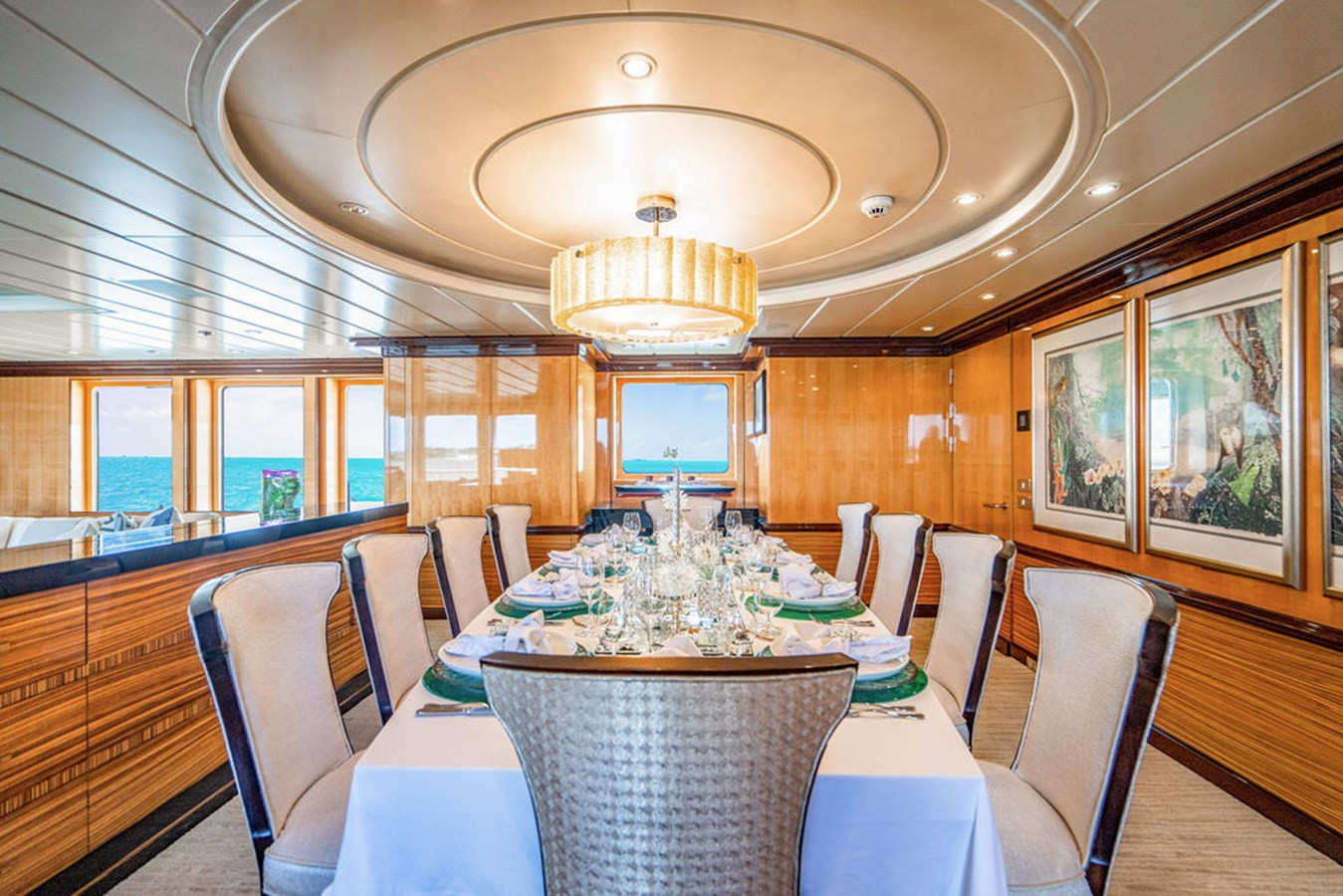

Expansive social areas can be enjoyed both inside, and on her outstanding, well-planned exterior decks that feature several seating, dining, and lounging options on all three outdoor levels.
- NITA K II is in impeccable condition in all respects, and is cruise-ready.
- Stunning, custom interior design by Alberto Pinto and Laura Sessa
- Accommodations for up to 12 guests in 5 staterooms, including a full-beam master stateroom with an attached lounge/office
- Crew accommodations for up to 14 in 7 cabins
- At-anchor stabilization
- 24 ft. RIB stored on foredeck, leaving exterior decks open for owner and guest use
- Full-displacement, steel hull and aluminum superstructure
- 628 gross tons
- Extensive refit and 20-year Lloyd’s survey completed 2024
- MCA compliant
- Exclusions include all of Owner\'s personal effects -
\"All speeds, capacities, consumption, etc. are approximate or estimated; measurements can also be approximate. Specifications are provided for information only and particulars herein obtained from sources believed to be correct, but are not guaranteed. Buyer should instruct his agent and/or surveyor to check all details for accuracy. Offered subject to prior sale, price and/or inventory change, or withdrawal from the market without notification.\"
2023/2024
- Novurania completely refurbished as “better than new” tender
- DPF systems installed on Generators, which now runs extremely clean and silently
- (ie: No louder than a tumble dryer)
- Installed full ECDIS onboard
- New carpets have been installed in all guest areas
- Spa pool completely re-furbished and all associated parts renewed
- AV/IT system upgraded & updated
Interior:
- All marble polished
- Main deck – bridge staircase refurbished
- Bridge and stew pantry floors revarnished
- Bridge doors revarnished
- Bridge seats reupholstered

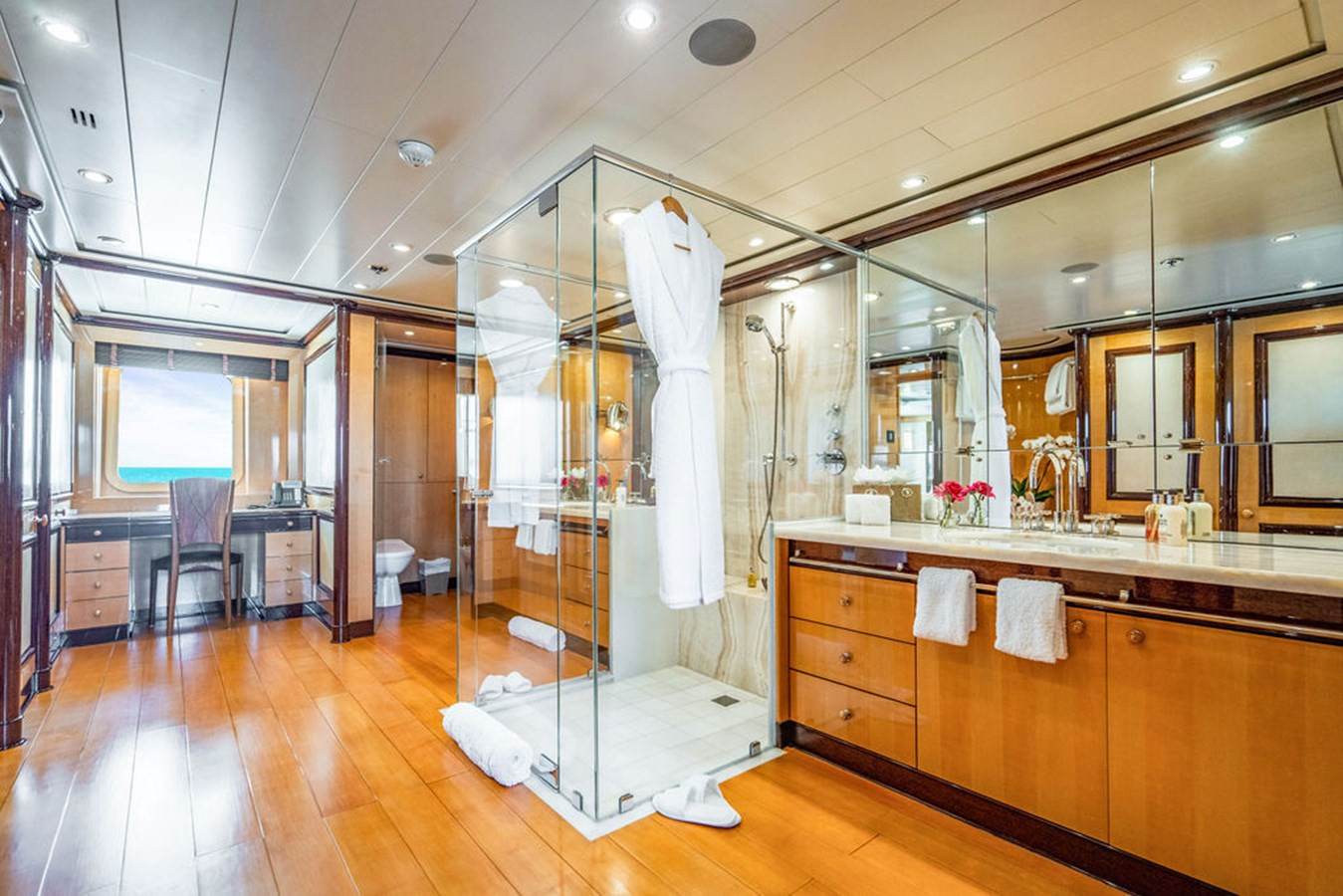

- Master cabin bathroom floor revarnished
- Installed additional towel rail in Master cabin bathroom
- Main deck aft fridge replaced
- Lower guest cabin safes replaced
- All air handler bearings changed out to ensure low noise
- All lower guest cabin mirrors replaced

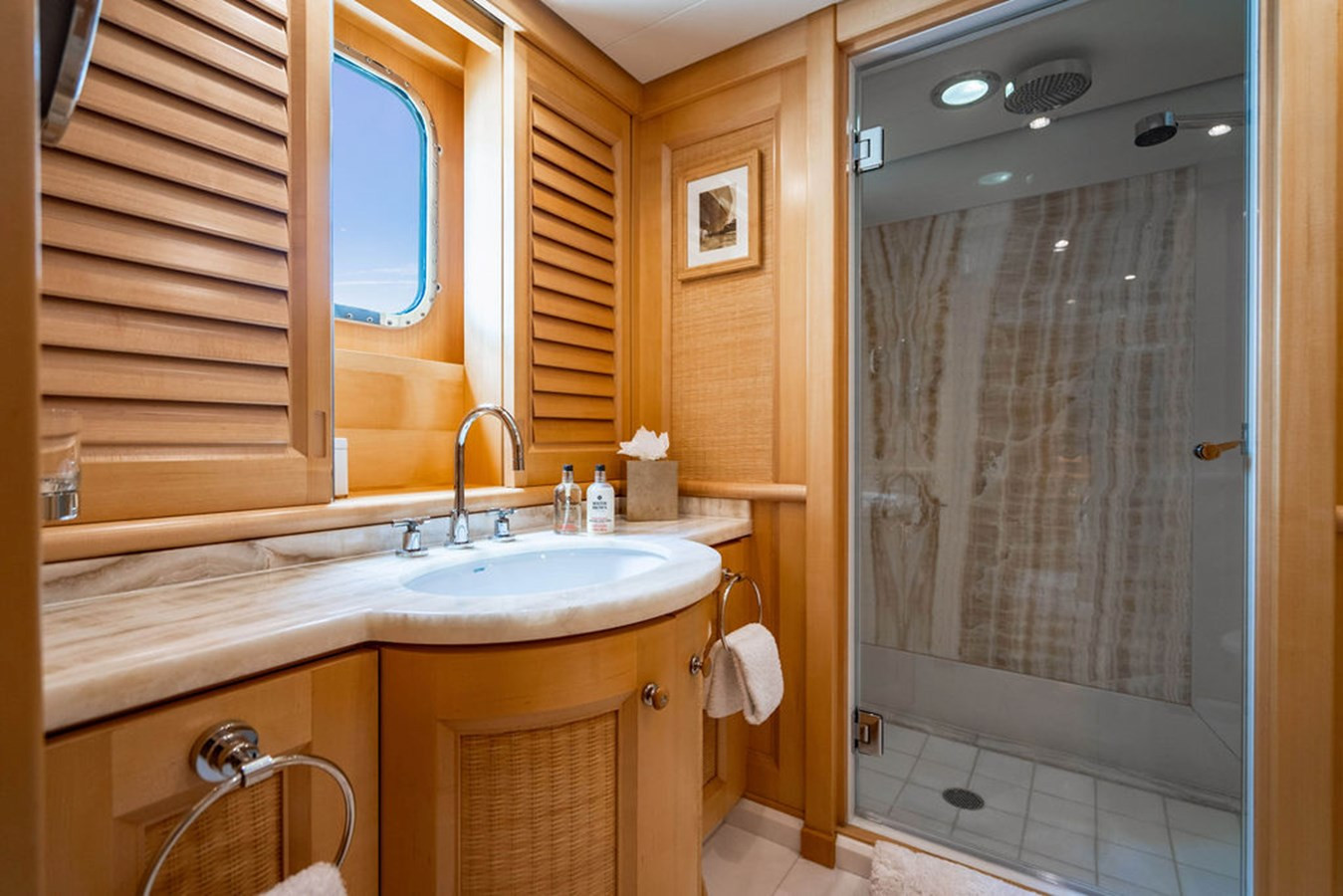

- All guest bathroom silicone replaced
- Misc. cosmetic wood touchups throughout all guest areas
- New galley steam/convection oven installed
Exterior:
- Entire boat has been polished and ceramic coated
- All teak decks sanded
- Main deck teak re-seamed
- Passerelle teak replaced
- Sundeck loose furniture replaced with new
- Misc. paint repairs on exterior
- Anchor bash plates polished
- Anchors and chains re-galvanized
- New inflatable slide
- Boston whaler tender cushions replaced, tender polished and overall service performed.
Engineering:
Lloyds 20 year special survey completed.
- In depth inspection and Survey of Main Engines, Gearboxes, Generators and Emergency Generator including borescope inspections of all salient parts. Remedial work carried out as per findings including replacement of all fuel injectors, thermostatic valves, and engine safety devices.
- Critical motors and pumps replaced
- Stern tube serviced including new bearings and seals
- Upgraded shaft grounding device installed
- Main engine mounts replaced, and drive train realigned
- Rudders serviced including new bearings and seals
- Steering gear surveyed and serviced; hydraulic hoses replaced
- Stabilizers serviced, accumulators and suppressors overhauled
- Cranes refurbished
- Refrigeration system refurbished
- All batteries onboard replaced
- All tank sensors replaced
- All shipside and sea water system valves replaced
- Water makers refurbished
- Misc. pipework was replaced as required
- Bow Thruster Leg Serviced
- Bottom sand blasted and new barrier coating & antifouling system applied
Works planned for March/April shipyard 2024:
- Replace sprinkler system tanks
- Replace hot water heaters
- Full service on bow thruster motor
- Replace air compressors
- Replace sun deck teak caulking
- Upgrade lighting system
2021
- Complete Zero Time Major overhaul of Main Engines including Gear Boxes
- Complete Zero Time Major overhaul of Port & Starboard Generators
- Complete Major overhaul of Stabilizers
- Re-building of every principle pump aboard
- Full Bottom paint & inspection of Running Gear & Bow Thruster
- Removal & repair of Fore Deck Crane
- Updating of NavCom equipment
- Galley Renovation – incl. new floor, overheads, cabinet doors, new cooktop, & full service of all equipment, etc…
- Misc exterior paint touch up & repaint of all overhead deck panels
- Re-varnish of all cap & hand rails
- Re-fit of aft lazzarette
- Misc interior woodwork refinishing
