NADAN

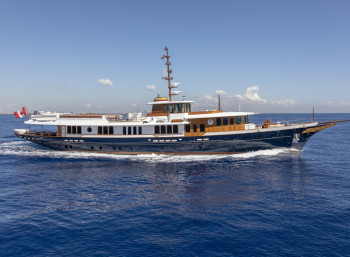

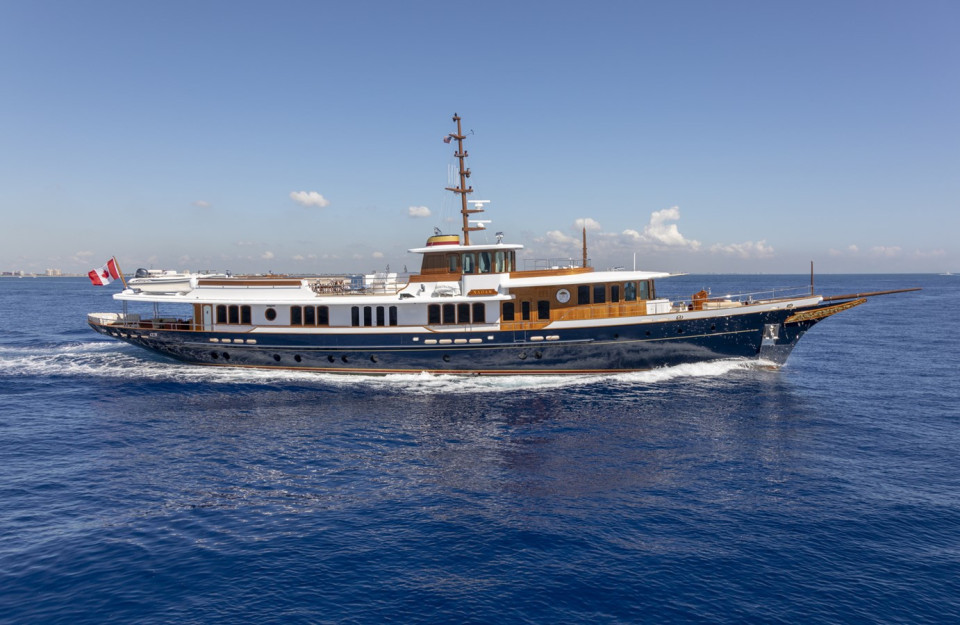

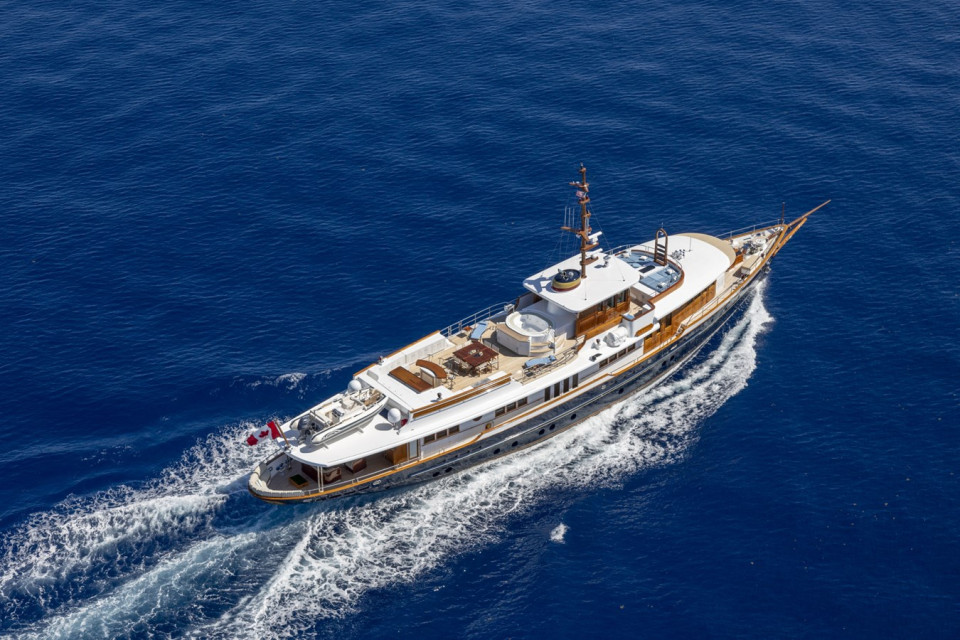

M/Y NADAN is a 46.1m BURGER luxury yacht for sale built in 2009. With a total of 4 cabins, she can accommodate up to 9 guests with a crew of .

  1. MAIN CHARACTERISTICS
    TYPE
    • Motor Yacht
    HULL NO.
    • 500
    MMSI
    • 339127000
    BUILDER
    • Burger Boat Company (USA)
    NAVAL ARCHITECT
    • Burger Boat Company / Bruce King Yacht Design (USA)
    EXTERIOR DESIGN
    • Burger Boat Company
    INTERIOR DESIGN
    • Burger Boat Company / Ken Freivokh Design (USA)
    YEAR
    • 2021 / 2019 upgrades / 2009
    CLASSIFICATION
    • ABS Maltese Cross A1, Yachting Service, AMS
    CONSTRUCTION
    • Aluminum alloy hull (in 5 x watertight compartments)
    • Aluminium superstructure, Teak decks
    CREW
    • 7
    FLAG
    • Jamaica
    ENGINES
    • 2 x 600 Hp Caterpillar C18 Diesel
    GT
    • 271
    NT
    • 81
    DISPLACEMENT
    • 216 long tons fully loaded
  2. DIMENSIONS
    LOA
    • 46.10m / 151’3”
    BEAM
    • 8.05m / 26’5”
    DRAFT
    • 1.83m / 6\'0”
  3. SPEED & RANGE UNDER POWER
    MAXIMUM SPEED
    • 14 knots using 52USG-196 l/h @ 1,850 rpm – 1,150nm
    CRUISING SPEED
    • 12 knots using 30USG -113 l/h @ 1,500rpm – 1,700nm
    ECONOMICAL SPEED
    • 10 knots using 18USG-68 l/h @ 1,200 rpm – 2,400nm
    RANGE
    • 2,400nm @ 10 knots
  4. CAPACITIES
    ACCOMMODATION
    • 8+1 x Guests in 4 cabins, 1 x Pullman berth
    CREW
    • 7 x Crew in 4 cabins
    FUEL
    • 16,161 litres / 4,270 US gallons
    FRESH WATER
    • 5,680 litres / 1,500 US gallons
    CLEAN OIL
    • 450 litres / 120 US gallons
    WASTE OIL
    • 450 litres / 120 US gallons
    GREY & BLACK WATER
    • 2,120 litres / 560 US gallons
    WATERMAKERS
    • 9,842 litres / 2,600 US gallons per day
  5. ACCOMMODATION
    OVERVIEW
    • NADAN sleeps 9 in the Owner’s party in 4 cabins with one Pullman berth, plus crew accommodations for up to 7 in 4 cabins (including Captain’s Cabin).
    BRIDGE DECK
    • Sky lounge with en-suite toilet.
    MAIN DECK
    • Owner’s Cabin on the main deck with king size bed and en-suite bathroom.
    • Main Salon & Dining with veranda.
    LOWER DECK

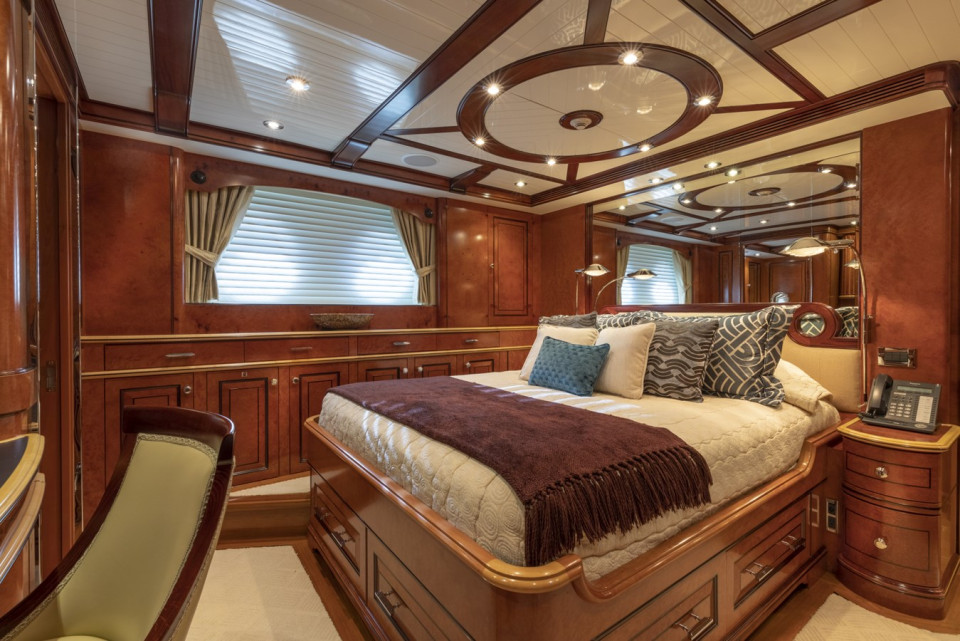

    • 1 x VIP Guest Cabin – full beam aft with king berth and en-suite bathroom.
    • 1 x Double Guest Cabin – with queen size berth and en-suite bathroom.

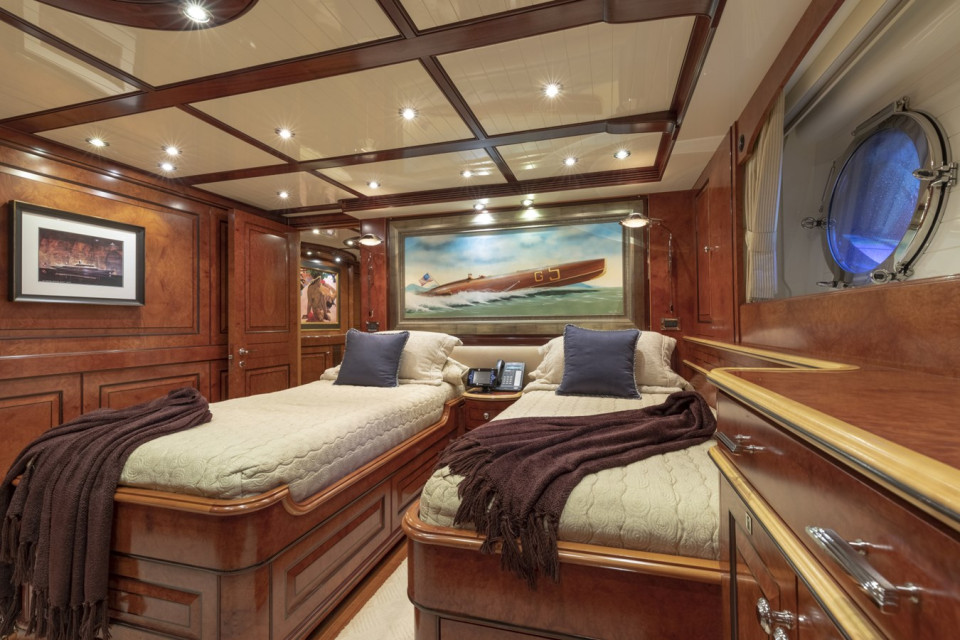

    • 1 x Twin Guest Cabin – with twin berths plus one Pullman berth and en-suite bathroom.
    CREW
    • 4 x crew cabins (including Captain’s Cabin) forward on the lower deck.
    • Each cabin has an en-suite toilet and shower.
  6. VESSEL WALKTHROUGH
    From the moment one boards NADAN they are transported back in time to the elegance and luxury reminiscent of yachting in the Art Deco era. The exterior styling incorporates the teak and white painted panelling typical of this time period and invites you in to experience the full impact of its interior spaces.

    One of the first things you notice is the beautifully detailed Madrone Burl raised wall panels enhanced with inlaid Macassar Ebony and accented with Padauk moulding. The door surrounds and featured cabinet pieces are exquisitely adorned with polished stainless steel detailing which, in addition to the jewellery quality door hardware, adds a touch of glamour throughout.

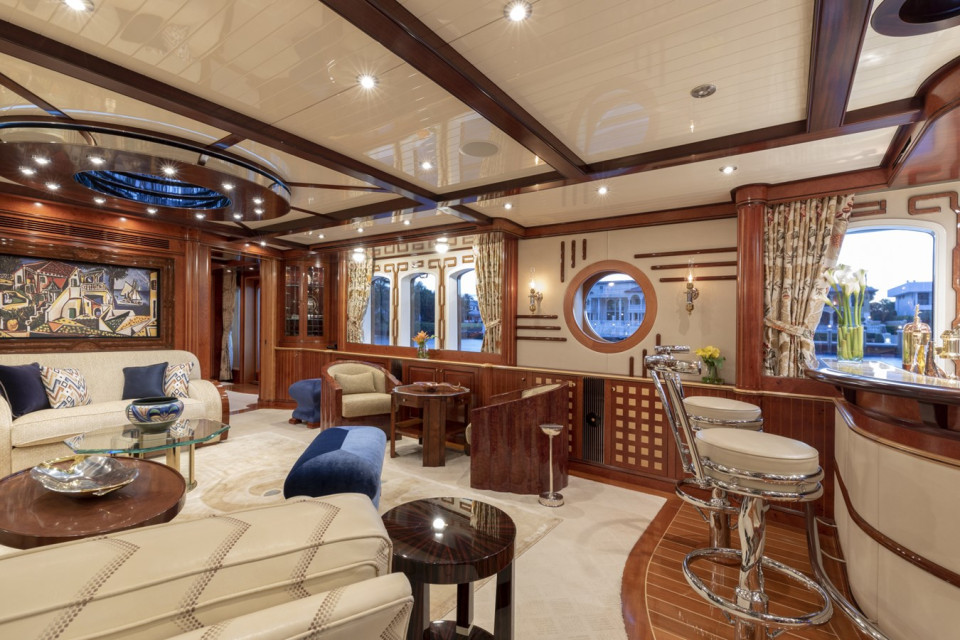

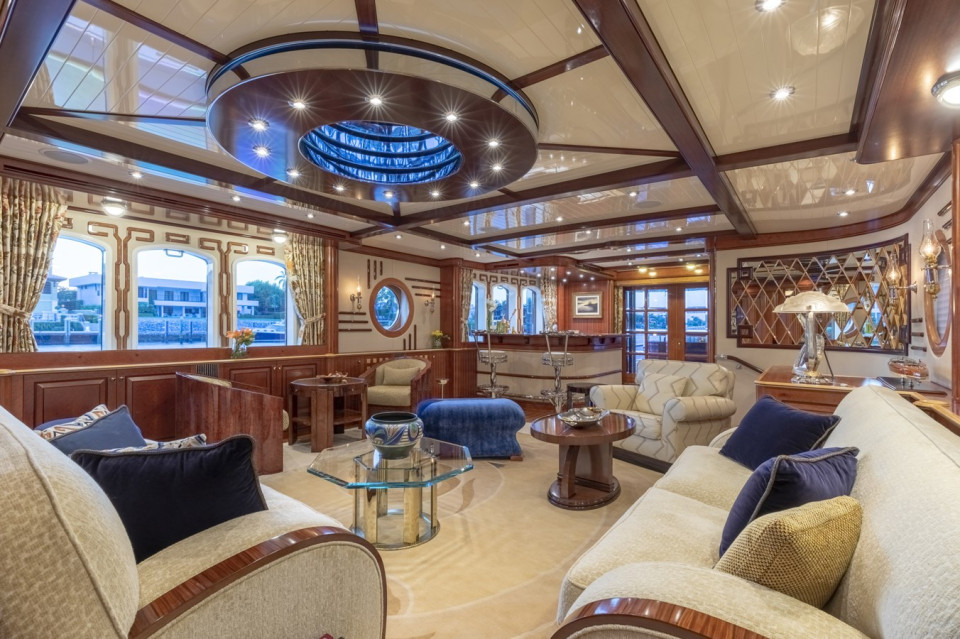

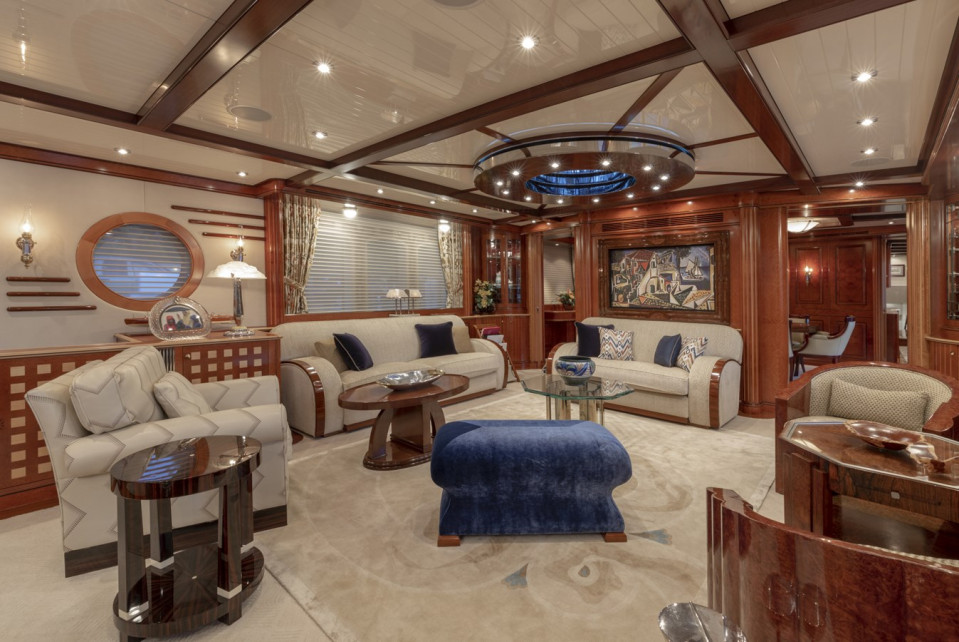

    The Main Salon features a grouping of lounge furniture arranged for conversation. As a complement to this entertainment space there is a curved, leather upholstered bar with custom crafted stainless steel bar stools. A coffee table sits beneath a circular skylight.

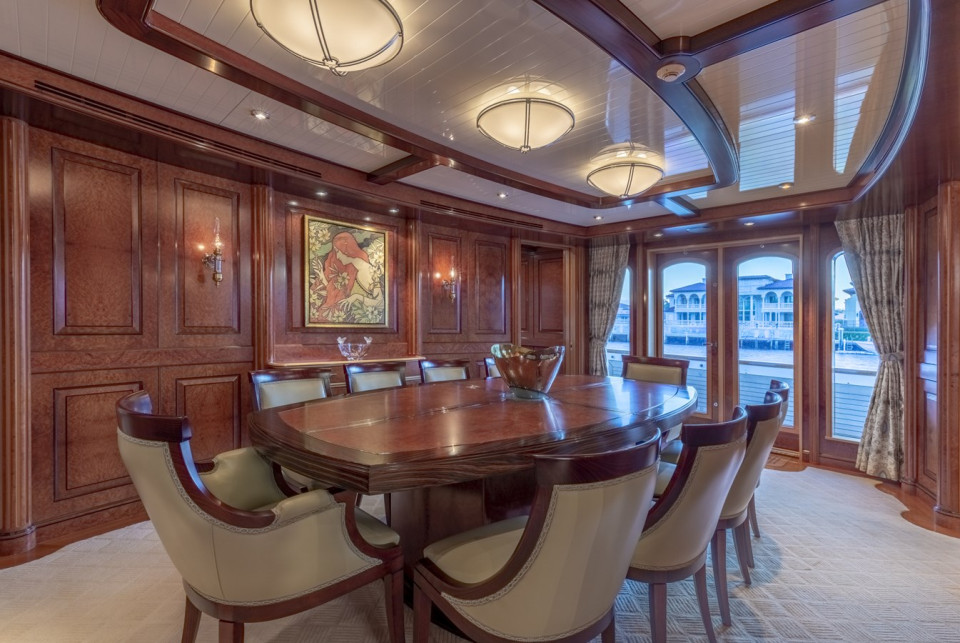

    The adjoining Dining Salon is a completely separate, private space. The curved walls with doors of this space feature Lalique glass panels and echo the shape of the dining table and cause the room to focus on the full-length French doors which allow access to the exterior, where a section of the bulwark lowers to form a veranda. This feature fully opens this room to views of the water.

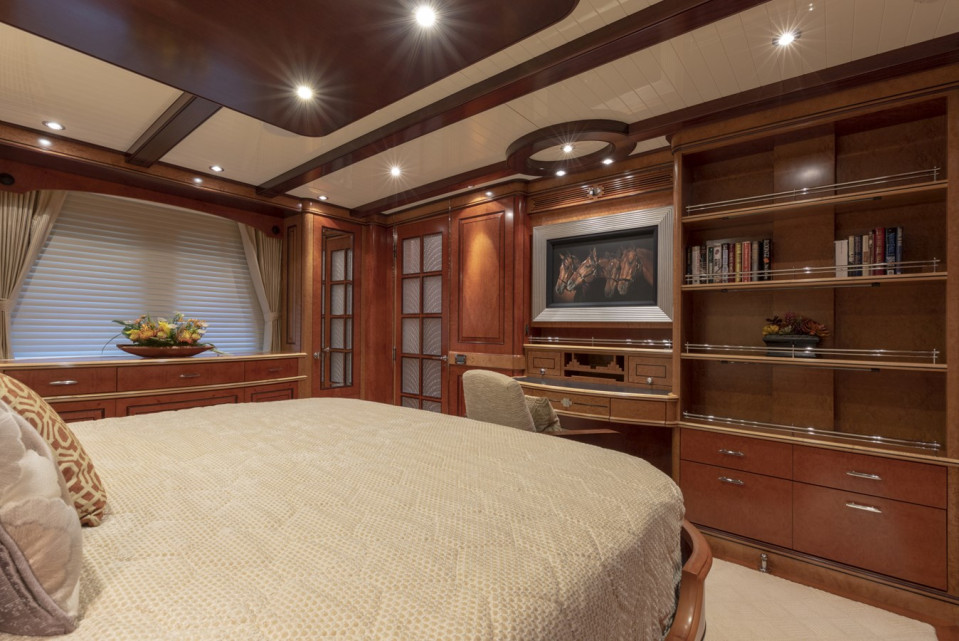

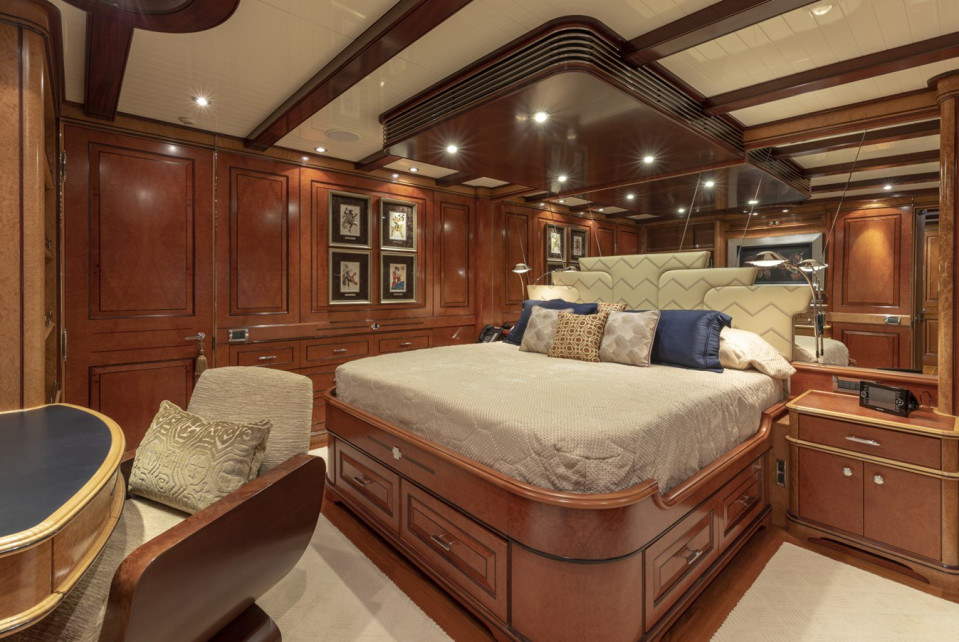

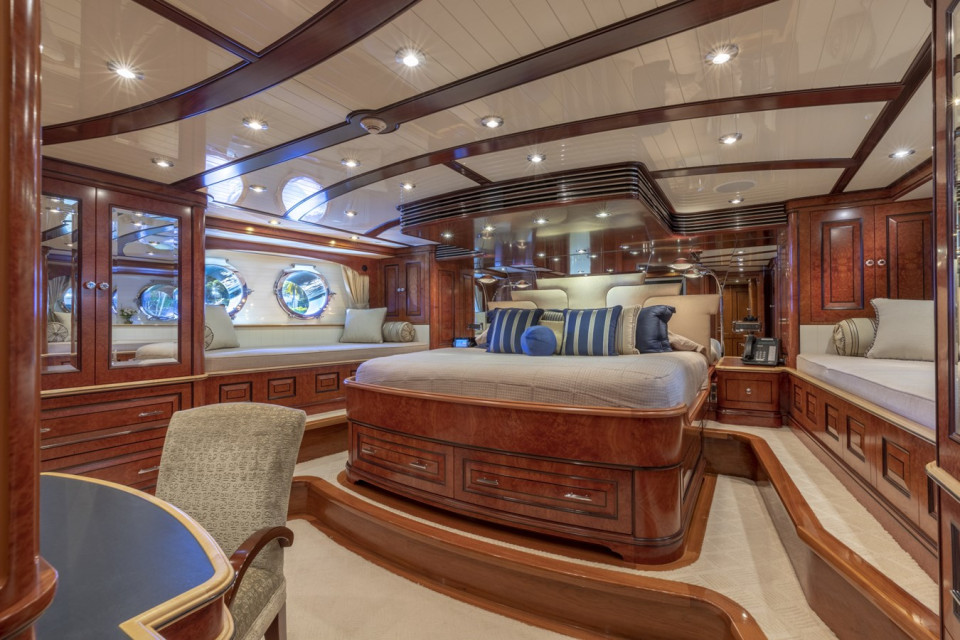

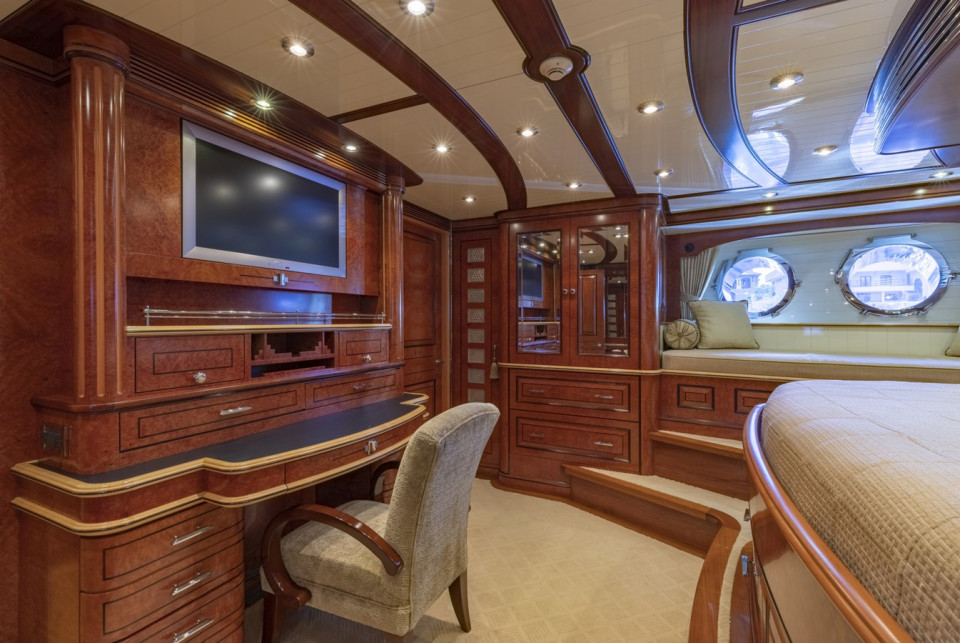

    The Main Deck Owner’s Suite generously accommodates the king size bed which is crowned with a lavish fully upholstered headboard set against a room expanding wall of mirror. An accent to the room is the Owner’s desk with inlaid leather top.

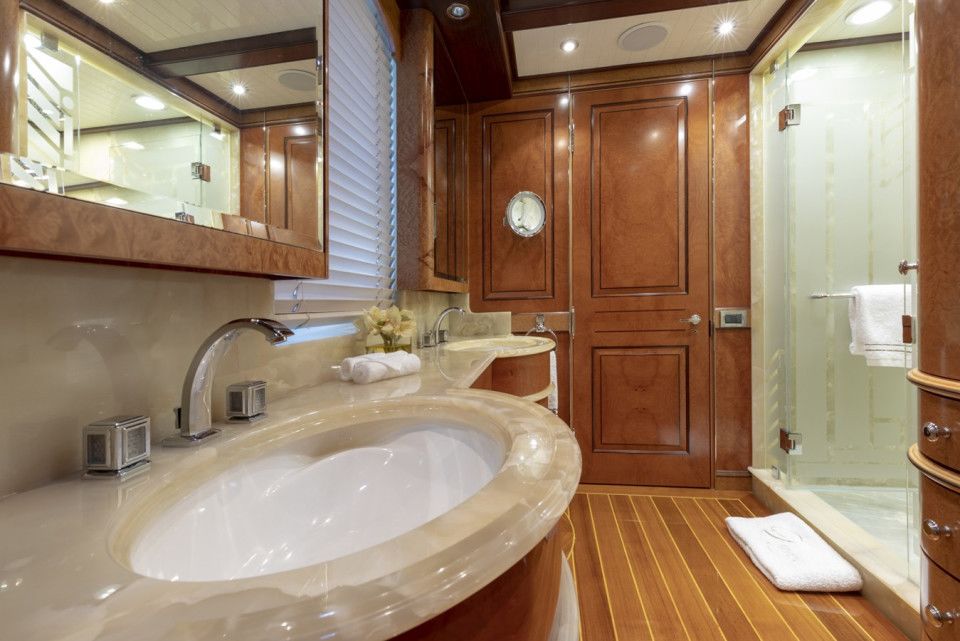

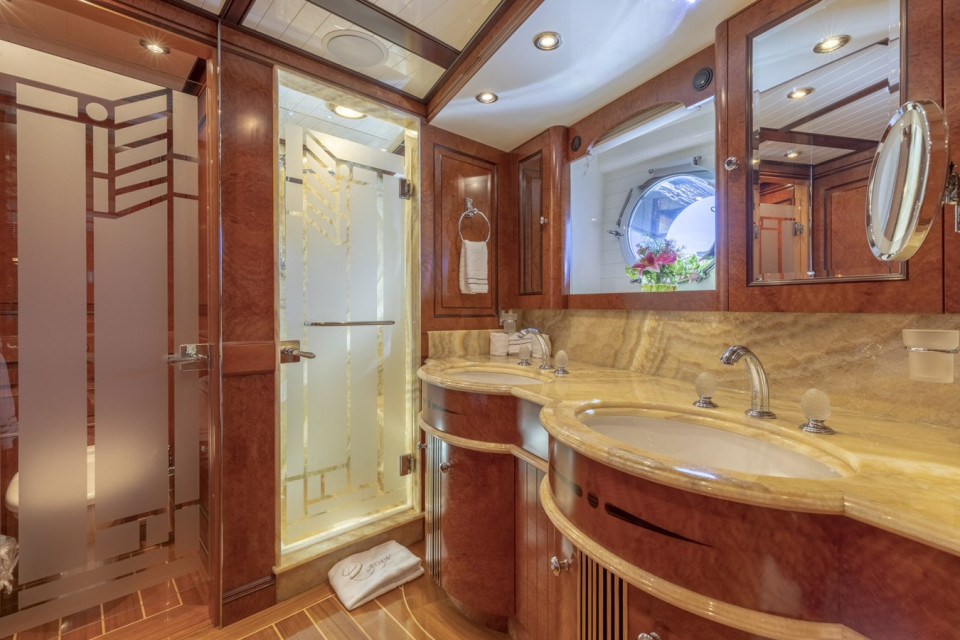

    The three guest cabins and baths share the same level of luxury and quality of detail as established in the main deck living areas of the vessel.

    The Captain and Crew cabins continue the elegance of the Art Deco era with white painted tongue and groove panel walls and contrasting Mahogany beams, raised panel doors and trim. This area includes the Main Galley and Crew Lounge/Mess and Laundry facility. The built-in furniture and cabinetry throughout this area is also Mahogany in a simpler style that incorporates the use of polished chrome accents in the hardware that was selected specifically for these areas. The use of the cream and blue color scheme creates a continuous flow of colour throughout the entire vessel. The crew may access the guest cabins via the engine room.

    After the present owner took over her stewardship, a private Owner’s Lounge was added to the sundeck. This unique observation/lounge/office space is the perfect get away, featuring wood panelling, unobstructed views and private head. Doors on either side open directly to the sundeck.
  7. MECHANICAL EQUIPMENT
    ENGINES
    • 2 x 448 kW (601 Hp) Caterpillar C18 Diesel (@2,100 rpm)
    ENGINES HOURS
    • Port: 5,735 hours as of 14th Oct 2022
    • Starboard: 5,738 hours as of 14th Oct 2022
    GENERATORS
    • 2 x 65 kW (87 Hp) Kohler 60Hz 208V 3-phase
    GENERATORS HOURS
    • Port: 12,864 hours as of 14th Oct 2022
    • Starboard: 12,662 hours as of 14th Oct 2022
    STABILISERS
    • Quantum At Anchor
    STERNTHRUSTER
    • Quantum QT30 12.5” 4-blades SS, 35 Hp
    BOWTHRUSTER
    • 1 x Quantum QT120 21” 4-blade SS, 116 Hp
    ENGINE CONTROLS
    • 2 x Kobelt Stations
    • 3 x Kobelt Barracuda remotes
    STEERING SYSTEM
    • 1 x Jastram hydraulic power steering
    GEARBOXES
    • Reintjes WAF 244, 2.539:1 reduction ratio
    SHAFTS
    • 2 x Aquamet 22HS, 4” diam
    PROPELLERS
    • 2 x Michigan Wheels CX500DAR, 36” x 41”, 5-blades
    STABILIZERS
    • 2 x Fin Quantum Marine QC 1000 active fin, at anchor
    • Quantum Power Pack with 2 x 20Hp motors, 2 x 45cc pumps
    STERN THRUSTER
    • 1 x Quantum QT30 12.5” 4-blade SS, 35 Hp
    ELECTRICITY
    • 208V/120V 3-phase 60 Hz
    SHORE POWER
    • Asea converter
    • Input: 175/520V 40-70 Hz
    • Output: 208/120V 3-phase 60 Hz 75 KVA
    BATTERIES
    • 2 x 8D banks for M/E, interchangeable
    • 1 x 8D battery for radio and 1 x 8D battery for navigation
    • 6 x 8D emergency batteries
    • 2 x 8D Batteries for generator and house, interchangeable
    AIR CONDITIONING
    • Dometic central chilled 360,000 BTU/30kW Heating
    • 4 x Compressors
    • 2 x Make-Up Air Units 36,000 BTU
    • 21 x Fan Coils
    AIR COMPRESSOR
    • Powerex 7.6 CFM @ 145 PSI
    VENTILATION
    • Delta-T Systems with 2 x reversible, variable speed axial fans in E/R
    WATER MAKER
    • 1 x Matrix S-2600 reverse osmosis desalination @ 9,842 l / 2,600 USG/day
    FRESH WATER MAKER
    • 1 x Matrix Silver B System, 3600 GPD reverse osmosis, 3 x membranes
    FRESH WATER PRESSURE
    • 2 x Grundfos MQ345 1Hp pumps
    HOT WATER
    • 1 x Nibe SP-200 storage tank w/Nibe ELK-213 heater
    FRESH WATER FILTERS
    • Dual Stage 5” x 20” particle and carbon
    FRESH WATER HEATERS
    • 1 x Nibe 200 ELK213, 53 gallons
    • 2 x Grundfos circulating pumps
    TOILETS
    • Jets Vacuum collection, 10 x Jets marine toilets
    SEWAGE TREATMENT
    • Hamann Wassertechnik Mini L
    OIL/WATER SEPARATOR
    • A Heli-Sep bilge oil/water separator
    • OCD oil content meter in compliance w/ USCG/Marpol
    FUEL SEPARATOR
    • Kaydon CF112, 12 GPM Coalescer filter
    FUEL FILTERS
    • 2 x Separ SWK2000/ 18/U water separator
    • 2 x Separ SWK2000/5/50U water separator
    FUEL OIL TRANSFER
    • 1 x G&R ASV331, 26 GPD
    OIL PUMPS
    • Oberdorfer
  8. NAVIGATION EQUIPMENT
    RADAR
    • Furuno / Arpa BB2127BB
    GYROCOMPASS
    • Anschutz Digital gyro STD22
    • Simrad AP50 helm station fwd
    MAGNETIC COMPASS
    • Sperry Marine Nortrop Grumman 2060
    • Anschutz repeater at helm station fwd
    AUTOMATIC PILOT
    • Simrad AP50
    • Furuno MultiPurpose LCD display MU155C at helm station fwd
    DEPTH SOUNDER
    • Furuno Colour LCD FCV1200L
    GPS
    • Furuno Navigator GP170 at helm station fwd
    CHART PLOTTER
    • Time Zero Professional
    WIND INSTRUMENTS
    • B&G Wind H3000, repeater at helm station fwd
    • Furuno RD33
    SPEED LOG
    • Furuno Doppler Speed DS-80
    NAVTEX
    • Furuno NX-700
    AIS
    • Furuno Universal FA150
    HELM CONTROL STATIONS
    • Helm Station Forward Deck
    • Pilot House and sundeck remote
  9. COMMUNICATION EQUIPMENT
    SATCOM
    • Intellian V60
    TELEPHONE SYSTEM
    • Panasonic PABX KXT7633B
    VHF FIXED
    • Furuno FM8800S
    • Icom ICM604
    VHF HANDHELD
    • 2 x Icom
    CELLULAR SYSTEM
    • Alarm/Cellular Phone Gost Apparition
    INTERCOM
    • Furuno Loudhailer LH3000
  10. DECK EQUIPMENT
    ANCHORS
    • 2 x Davis Pool type anchors HP400 316L s/s polished
    ANCHOR CHAINS
    • 2 x 360 feet galvanised 5/8” stud link Grade 2 chains
    ANCHOR WINDLASS
    • 2 x Ideal H9M horizontal windlass, 10Hp hydraulic 8,000lb pull
    AFT WARPING CAPSTANS
    • 2 x Muir VC4000
    BOAT CRANE/DAVITS
    • 1 x Nautical Structures EZ5500EX, 5,500 lbs SWL on boat deck
    PASSARELLE
    • Nautical Structures Hydraulic, 7-steps portable
    SIDE BOARDING
    • Cramm custom hydraulic load holding
    STERN BOARDING GANGWAY
    • Nautical Structures hydraulic telescopic 20’, slewing to 90 Port
    SPOTLIGHT
    • 1 x Carlisle & Finch
    UNDERWATER LIGHTS
    • 4 x Underwater lights
    JACUZZI
    • Baja Spas on sun deck
    PAINT SYSTEM
    • Exterior Awlgrip Mystique Blue & Snow White
    • Interior Awlcraft White
    • Underwater Seahawk Biocop TF, Prop Speed antifouling
    LOUDHAILER
    • Horn Kahlenberg model F2, 5 x trumpets
  11. ENTERTAINMENT EQUIPMENT
    CENTRAL AUDIO SYSTEM
    • Crestron controlled central system
    • Sat TV Intellian i6 28”
    TV RECEIVERS
    • Dish Network 14 x Wally receivers
    MAIN SALON
    • 52” TV Samsung UHDTV (2019) with Crestron control
    • Stereo 5:1 Surround Sound
    MASTER CABIN
    • 30” TV Sole with Crestron control
    • 13-Pin iPhone Dock
    VIP CABIN
    • 32” TV Sole with Crestron control
    • 13-Pin iPhone Dock
    GUEST CABINS
    • 2 x 22” TVs Sole with Crestron control
    • 13-Pin iPhone Dock
    SKY LOUNGE
    • 24” TV Samsung
    EXTERIOR
    • Stereo Sat TV audio aft deck and upper deck
    CAPTAIN’S CABIN
    • 19” TV Sole
    • DVD Samsung
    • Stereo Sound Craft
    CREW MESS
    • 32” TV Sole with Crestron control
    CREW CABINS
    • 12” TV Vision flip down TV/DVD combo
    • Stereo Sound Craft
  12. GALLEY & LAUNDRY EQUIPMENT

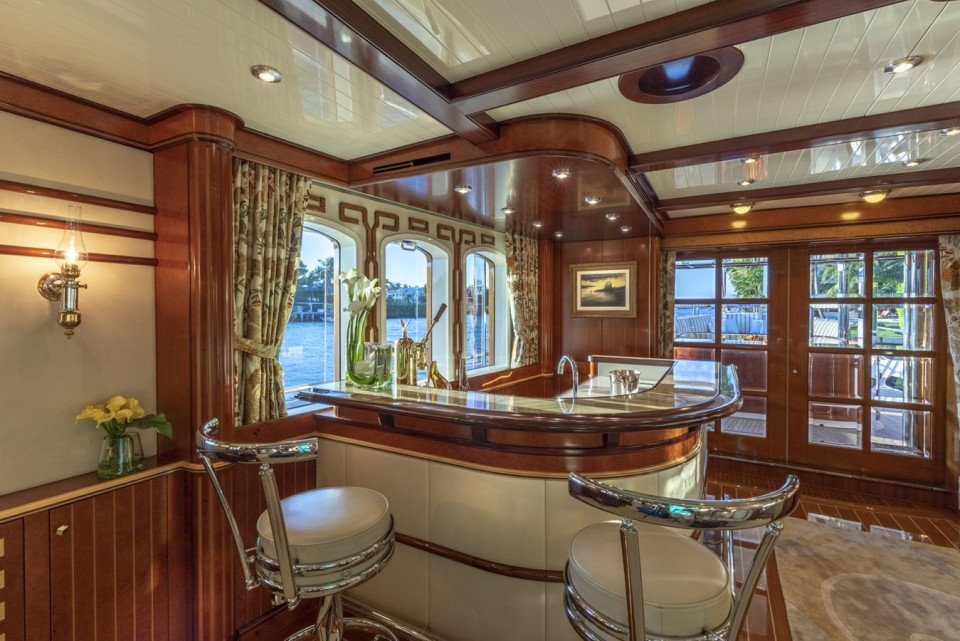

    MAIN SALON BAR
    • 1 x Ice Maker Hoshizaki, Mod AM-50BAJ, SN H12647L
    • 1 x Refrigerator Sub Zero, Mod UC-24R, SN P2875739
    • 1 x Basin

    MAIN SERVICE
    • 1 x Refrigerator Sub Zero, Mod UC-24R, SN P2875741
    • 1 x Heat Lamps Hatco Glo Ray GRH-18
    • 1 x Basin

    AFT DECK
    • 1 x Sub Zero Refrigerator UC-24R, SN P2806803

    FORE DECK
    • 1 x Refrigerator U-Line U-2115RW-00, SN 083284-07-0005

    UPPER AFT DECK
    • 1 x Sub Zero Refrigerator UC-24R, SN G3657723
    • 1 x Sub Zero Ice Maker, UC-1510, SN 3881916

    MAIN GALLEY
    • 1 x Miele Oven 30” H6680BP, SN 09769460
    • 1 x Miele Oven 24” H6560BP, SN 09769410
    • 1 x GE Profile Range 5-burners 36” SS
    • Refrigeration, walk-in
    • Cospolich WIC Artic Safe, SN 256507
    • 1 x Dishwasher Miele PG8080, SN 64/147316140
    • 1 x Compactor Viking Professional VUC 181SS
    • 1 x Microwave Oven Samsung
    • 1 x Garbage Disposal InSinkErator Excel-4

    CREW MESS
    • 1 x GE Microwave JE0736SM1SS, SN VR913709U
    • 1 x Sub Zero 2-drawer refrigerator Mod 700BR3, SN M2584869
    • 2 x Cospolich Freezer 27.5”W x 33”D x42”H
    • 1 x Perlick ice maker H50IMSL, SN E02716A
    • 1 x Jura coffee Machine
    • 1 x Toaster

    LAUNDRY
    • 1 x Miele Washer / Dryer Stacked Mod PT7136 Plus/PW6065 Vario, SN 40/66678314-40/69866304
    • 1 x Basin

    CREW LAUNDRY
    • 1 x Miele Washer PT7136 Plus, SN 40/66742306
    • 1 x Dryer Miele PW6065 Vario, SN 56/114924785
  13. SECURITY & SAFETY EQUIPMENT
    SAFETY
    • 2 x 16-person Viking life rafts
    • 1 x 4-person Viking life raft
    • 4 x 30” life rings (2 x with Smoke MK9)
    • 2 x EBIRBS (ACR Cat 1 & McMurdo Cat 2)
    • 3 x MK9 flares
    • 6 x Red Parachute flares
    • 12 x MK8 flares
    • 1 x Line thrower
    • 16 x Inflatable life jackets
    • 10 x Life jackets
    • 18 x Imperial immersion suits

    FIRE FIGHTING
    • Fixed CO2 for Engine Room
    • Notifier fire detection system
    • Ansul CO2 system discharging in engine room
    • 3 x Portable CO2 of 10lbs
    • 19 x ABC Fire Extinguishers
    • Simon Alarms / Monitoring

    SECURITY
    • CCTV Pelco – Hard Drive Recording
    • 7 x Pelco cameras
    • 3 x Hatteland 19”X Monitors

    SHIP’S SAFES
    • 3 x AmeriSafe, Master/VIP/Stbd Guest
    • 1 x Sentry Safe, Port Twin Guest
    • 4 x Amsee, Crew Cabins

    MEDICAL EQUIPMENT
    • 1 x Medic Bag
    • 1 x Defibrillator
    • 1 x Oxygen Tank
  14. TENDERS & WATERSPORTS EQUIPMENT
    TENDERS
    • 1 x Novurania CAT18 with 115 Hp Yamaha outboard (new 2019)
    DIVING
    • 2 x Dive Tanks
  15. REFIT & MAINTENANCE NOTES
    • REFIT 2021:
      • ABS - 15-year survey
      • Hauled yacht, checked, and serviced overboard valves
      • Pulled shafts and checked shaft seals
      • Inspected all tanks and painted freshwater tank
      • Varnish and paint touch-ups
      • Polish hull
      • Service main engines and generators
      • All recommended service on other equipment
      • Fitted protection against a lightning strike
    • MAJOR UPGRADES 2019:
      • A skylounge was added with bathroom, featuring large windows, interior mahogany panels and tongue and groove panelling, painted gloss white, with teak and holly flooring, designed by Ken Freivokh, perfectly complements the original interior/exterior styling and finish, as well as the exterior profile of this classic yacht
      • Shortened the carbon fibre mast and installed electronics, teak faux painted
      • Added Crow’s Nest and teak cladding all-around, under the upper deck’s cap rail
      • Added teak cap rail on the upper deck
      • Added height to the forward flag mast
      • Modified the aft deck seating layout with 2 x new sofas and 2 x tables
      • Shortened the upper aft deck above the transom seat
      • Redesigned the main salon with faux leather panels with wood design, custom art deco sofas, arm chairs and tables
      • New Novurania CAT 18 tender with 115 Hp Yamaha
      • New Air MakeUp AC Handler
      • New insulation on AC lines in all accessible areas
      • New AC/DC neutral ground fault systems
      • 3 x New pilothouse 19” monitors
      • New GPS Map/Radar 12”
      • New Samsung UHD TV 52” in Salon
  16. COMMENTS

    The owner’s passion for the classic and neoclassic style cruisers led him to NADAN and her transformation. His specific vision and attention to detail was implemented to attain the timeless elegance and charm of the 1920\'s. The new skylounge and crow\'s nest compliment the yacht\'s fluid lines and pleasing proportions while reflecting the same commitment to perfection. NADAN\'s shallow draft enables her to cruise the Bahamas and inland waterways, which is very difficult to find in a vessel of this design. NADAN is in immaculate condition.

    • KEY FEATURES
      • Exquisite custom Burger quality
      • 4 x Owners and guest staterooms
      • Shallow 6 foot draft
      • Economical with transatlantic range
      • Recent completed ABS special survey
      • Zero speed stabilization
SPECIFICATIONS
Type
Motor
Build
BURGER
Hull
Aluminum
Guests
9(Sleeping)
Year
2009
Cabins
4
Length
46.1m (151ft)
Beam
8.05m (26ft)
Speed
12(Cruising)
ASKING PRICE
€19,900,000
Contact a Broker
Peter Bennett
E-MAIL
Image Gallery
