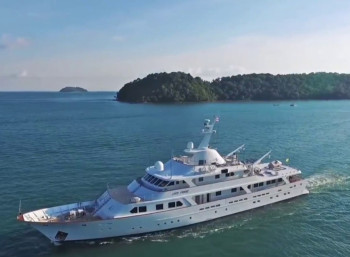

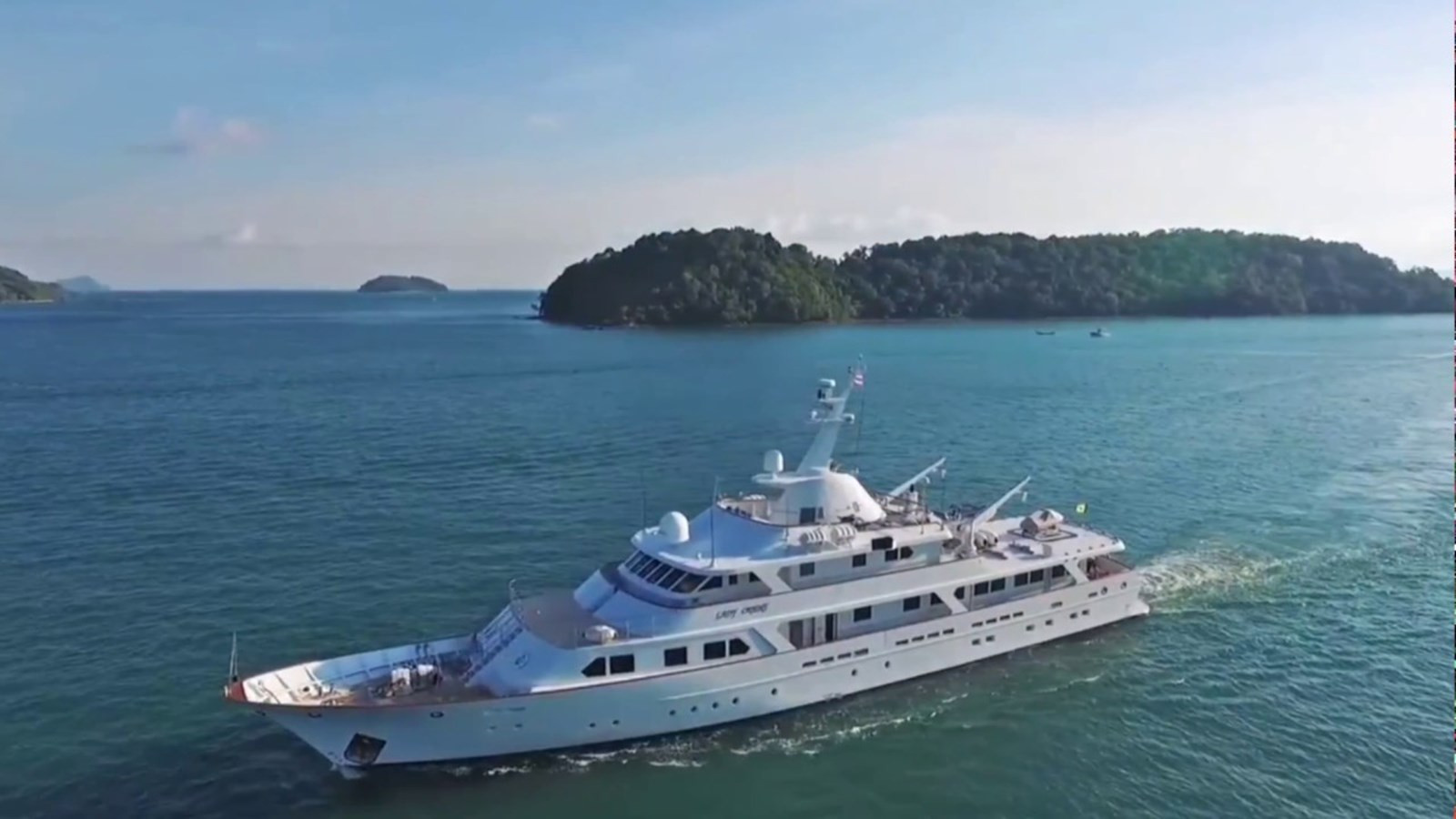

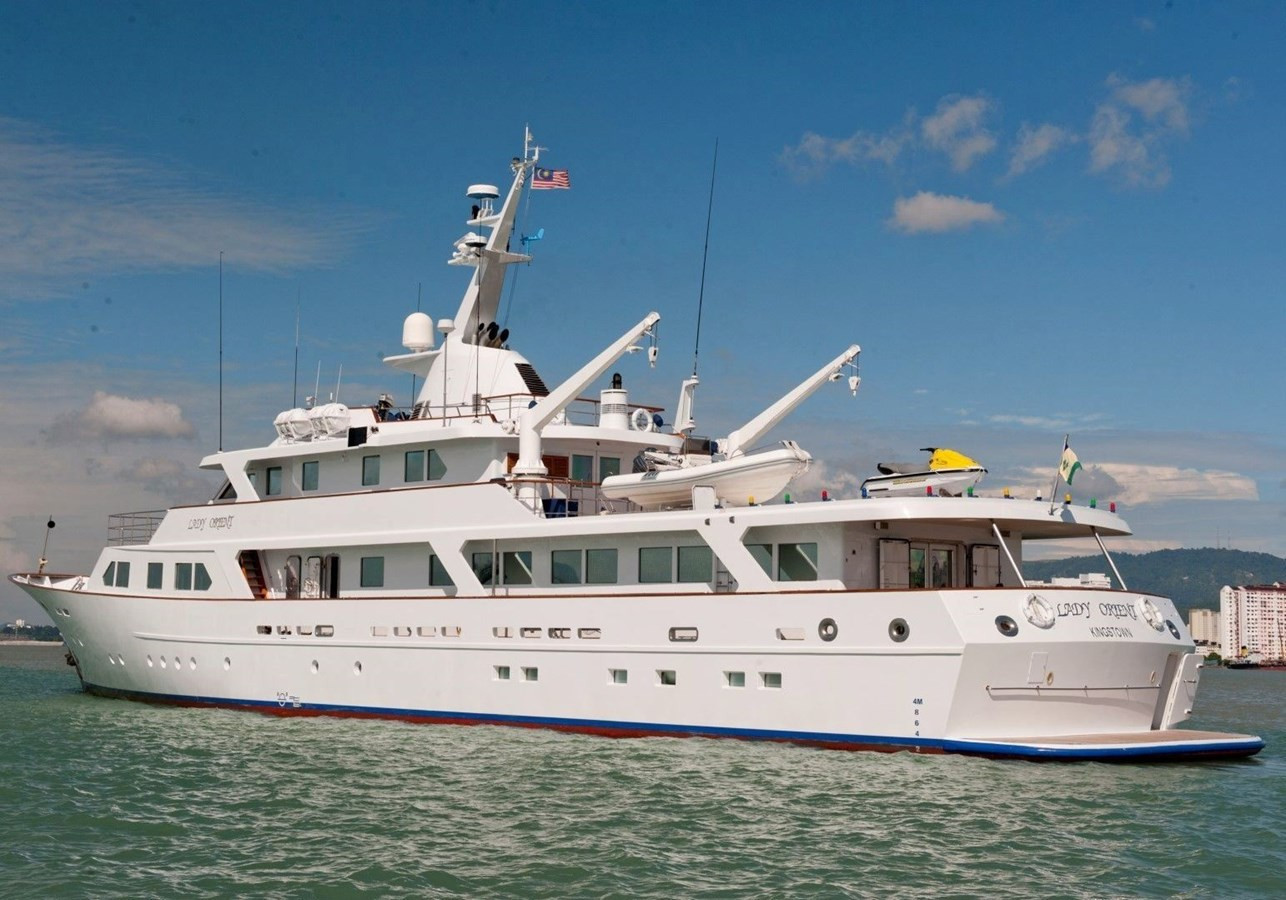

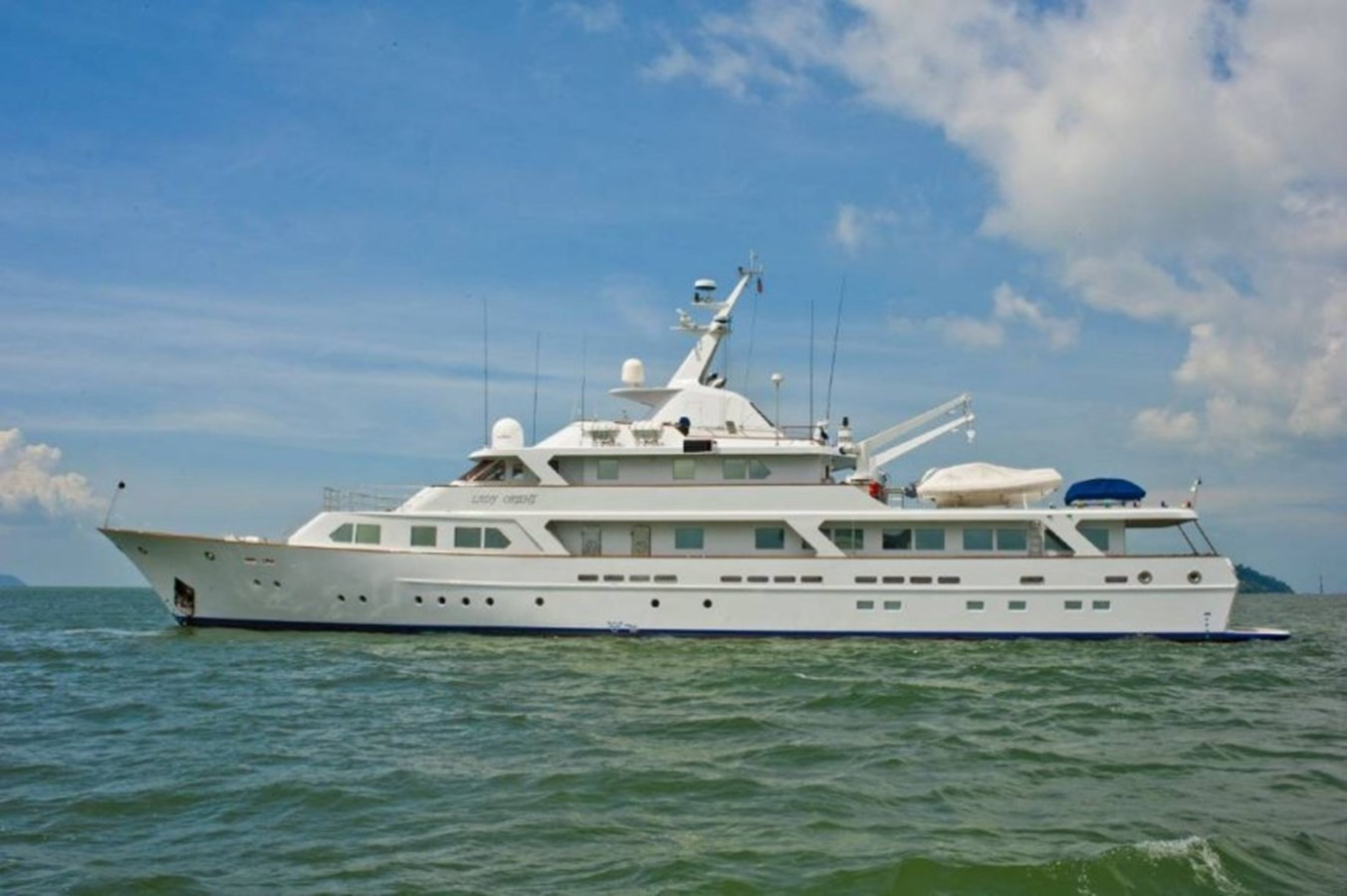

A spacious yacht providing accommodation for 18 guests in 8 well-appointed staterooms, including a large Owner’s suite & a VIP suite, with a crew of 15. Langkawi Lady features plenty of spaces for dining or entertaining, and a long cruising range of 4,000Nm, ideal for the adventurous yachtsman, exploring the Asian waters with friends or family. M.Y. Langkawi is certified for Classification till November 2028.    Ready to roam International waters again! A survey can be organized upon short notice!     MAIN CHARACTERISTICS

LOA                                                        48M       157’06”

Beam                                                      8.66M   28’05”

Draft                                                       3.29M   10’10”

Builder                                                    Sterling

Year Built/Refit                                       1983 / 2006 / 2010 / 2021-2023

Hull                                                         Carbon Fibre Reinforced Alloy

Superstructure                                        Fibre glass

Flag                                                        Malaysia

Classification                                          SCM (Shipping Certification Malaysia)

Speed (max/cruise)                                14 / 10 knots

Gross Tonnage                                       540 tonnes

Net Tonnage                                           162 tonnes

Range                                                     4,000nm approx.

Guest Accommodation                           18 guests in 8 cabins

Crew Accommodation                            15 crew members



MAIN MACHINERY

Main Engines                                           2 x Caterpillar 3512TA V12 775KW Diesels

Generators                                               2 x Caterpillar 3406T 225HP Diesels

                                                                 415 V 3 Phase & 220 V Single Phase

Stabilizers                                                Naiad Anti-Roll Model 525

Water makers                                          Sea Recovery (2 units) 5,300L & 6,814L per day

Navigation Electronics                             Furuno

Bow Thrusters                                          Side power

Auto Pilot, Furuno Radar, AIS, Magnetic Compass, Gyro Compass, VHF Radio,

Chart Plotter, GPS and Echo Sounder.



CAPACITY

Fuel                                                      83,000 Litres

Fresh Water                                         35,000 Litres

Water maker                                        12,000 Litres/Day



ACCOMMODATION

MAIN DECK

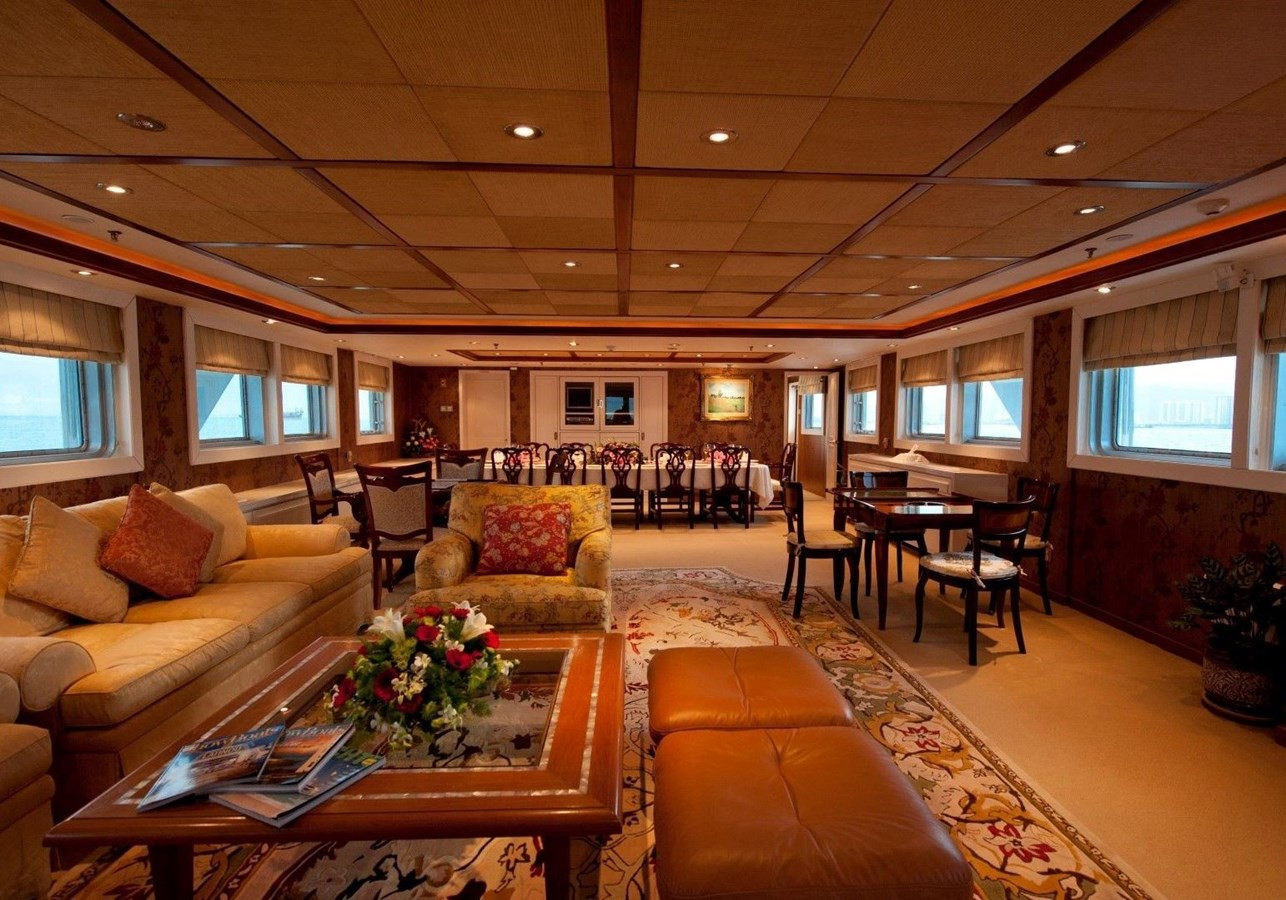

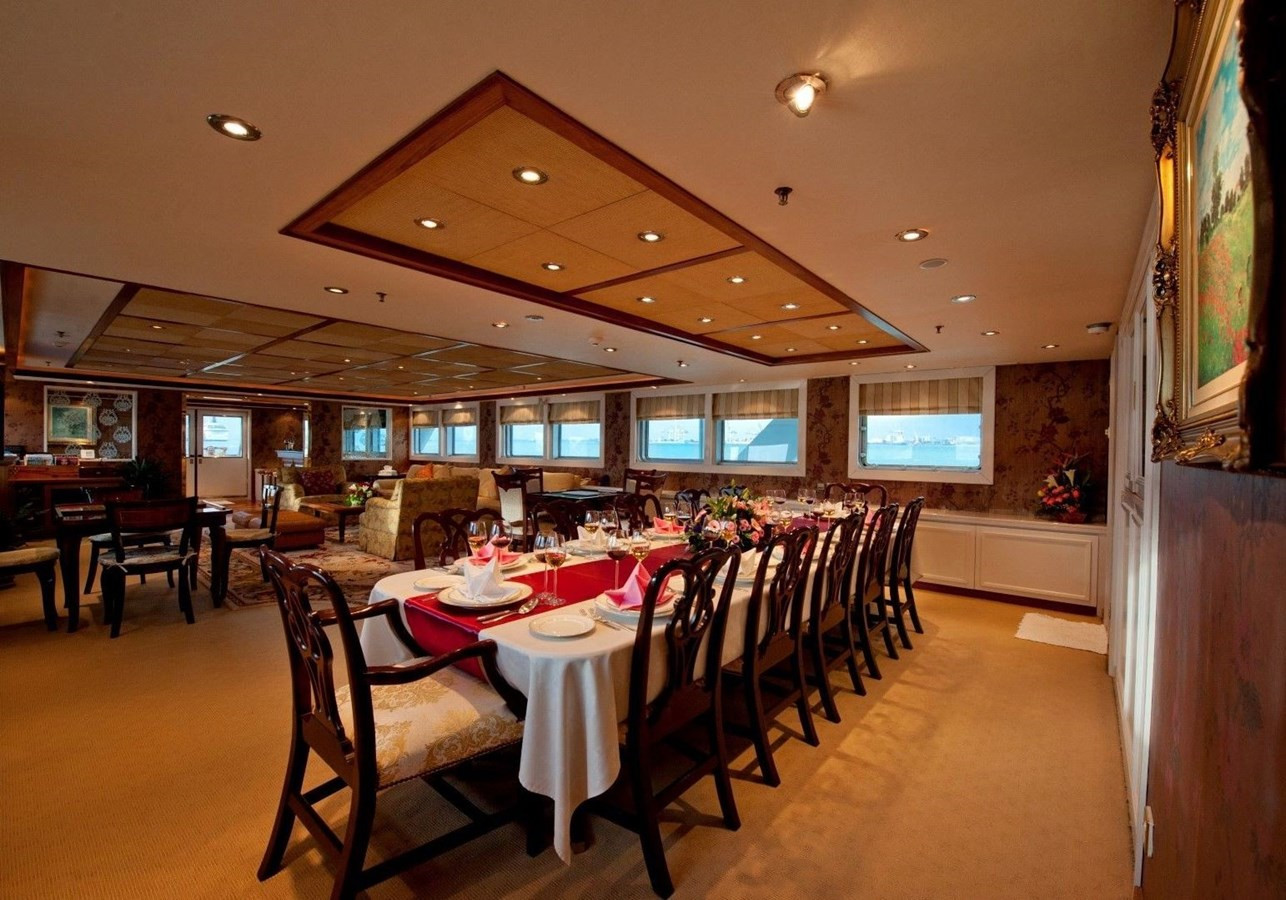

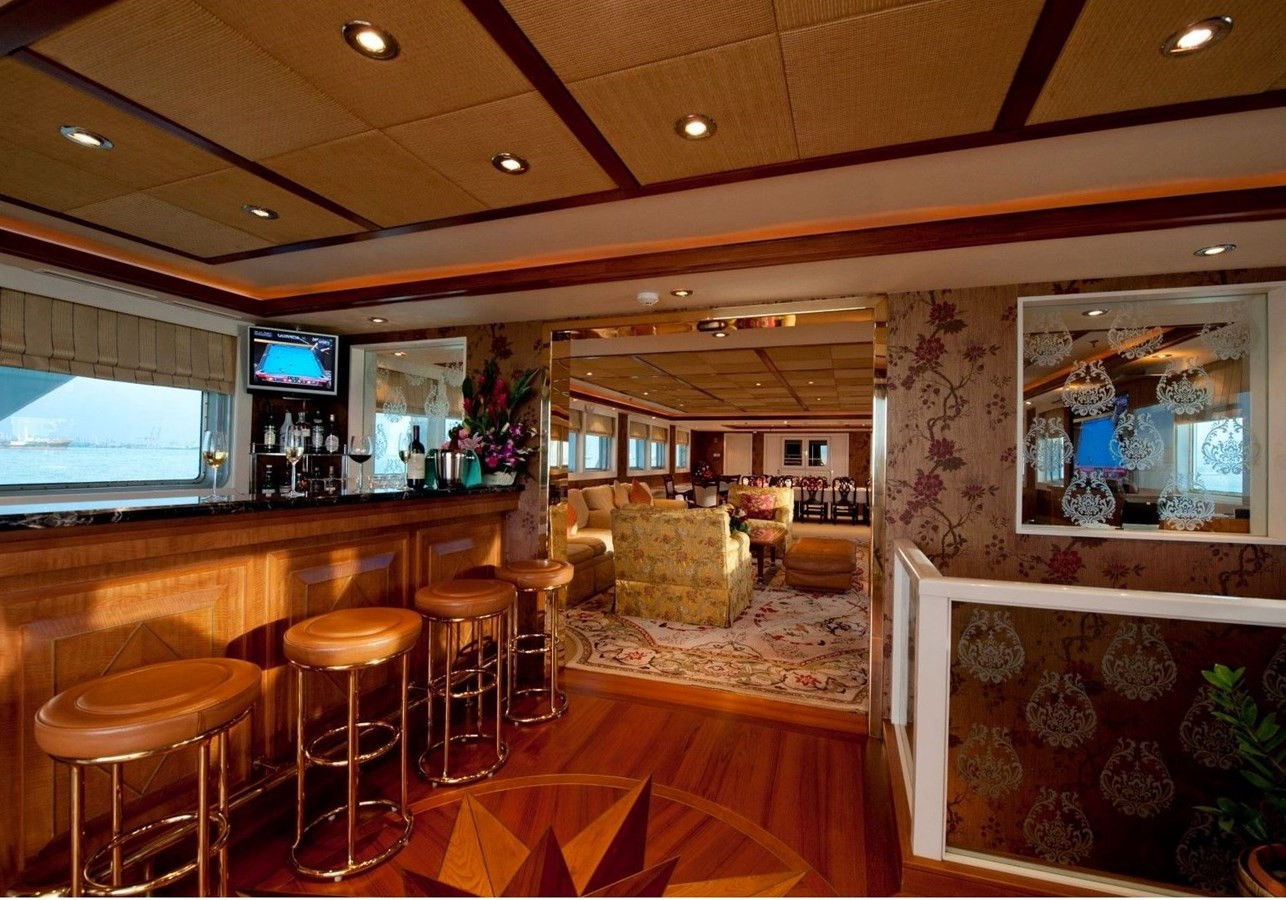

Main Saloon, Bar Counter, Dining Area, Main Galley

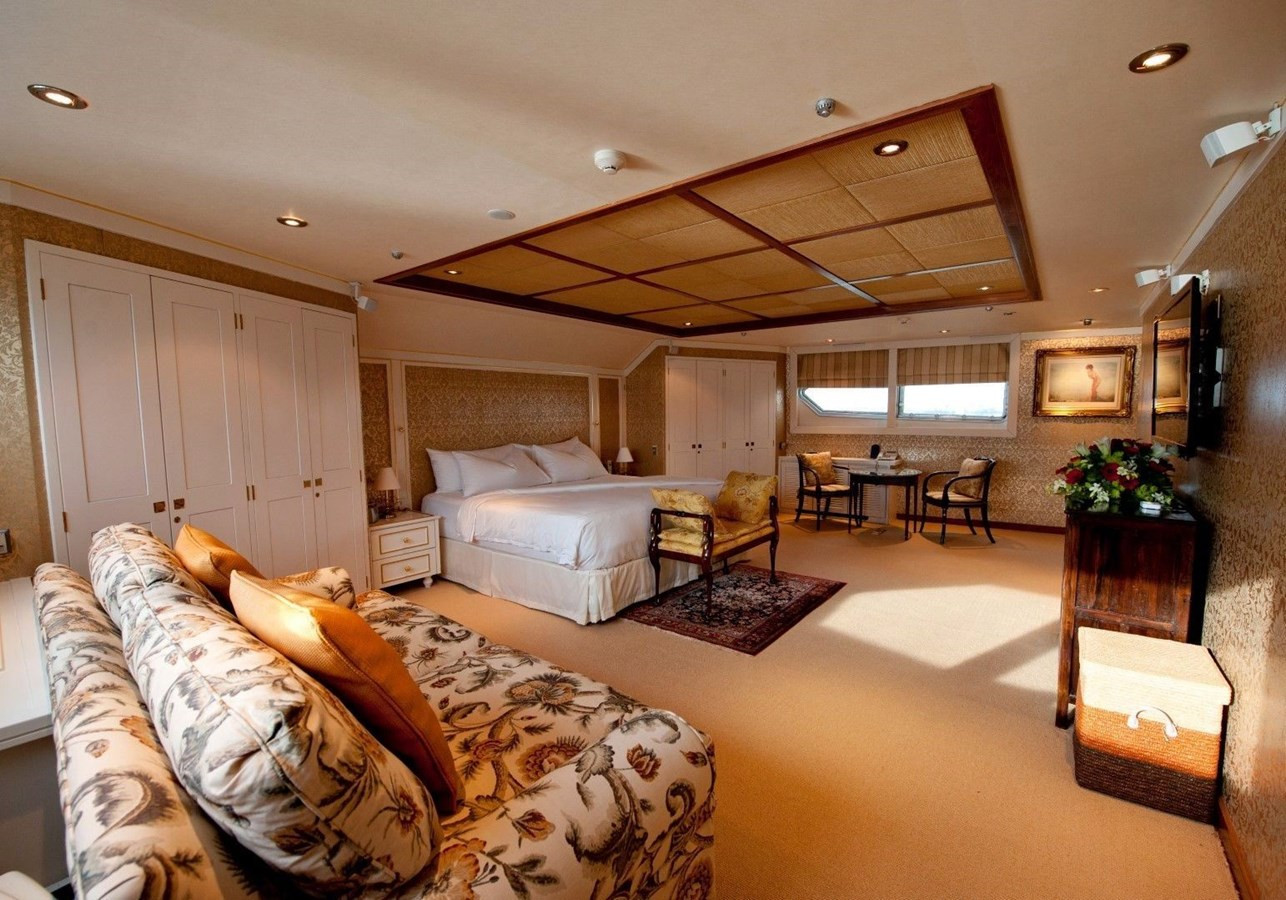

Master Stateroom and VIP Room, both with Ensuite Bathrooms

LOWER DECK

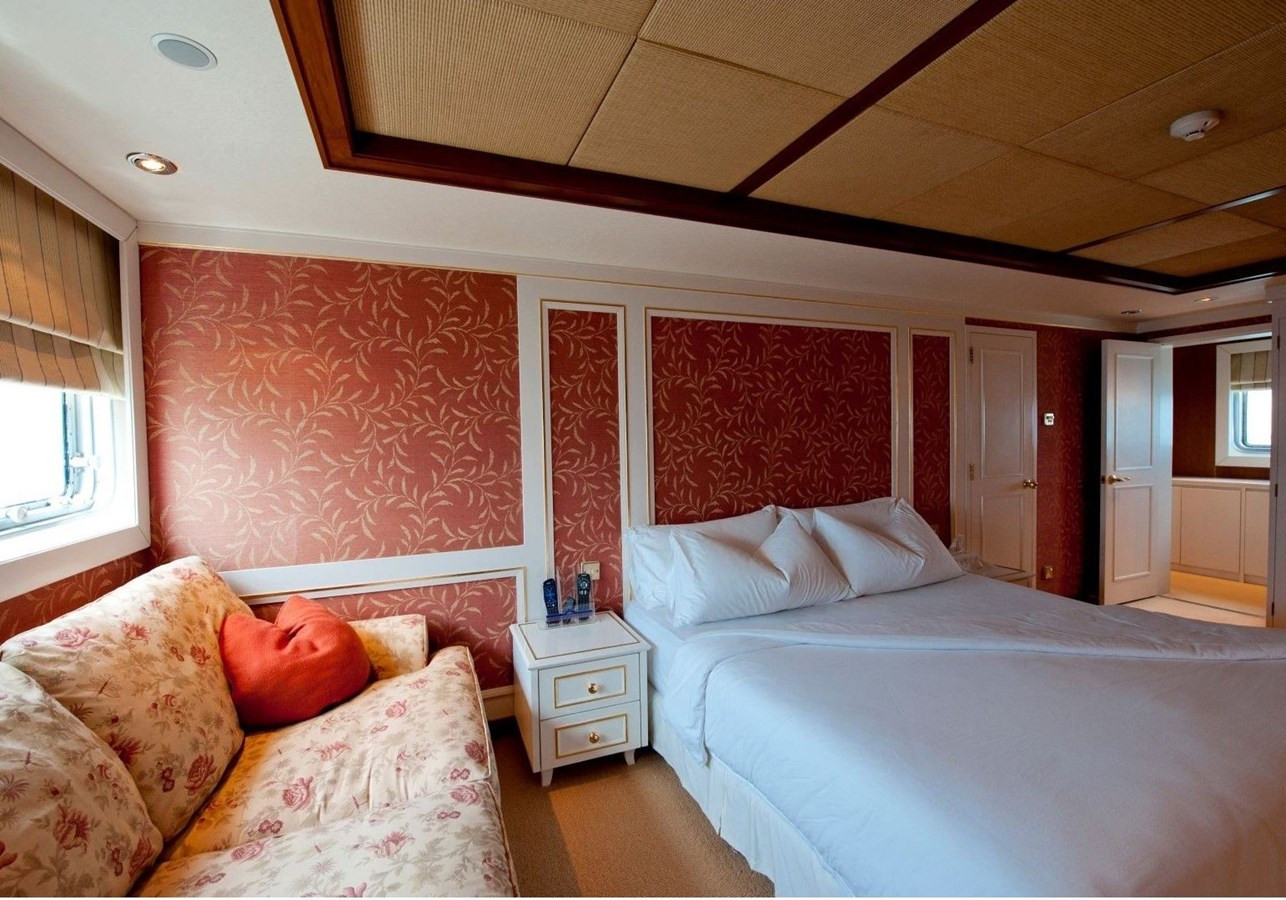

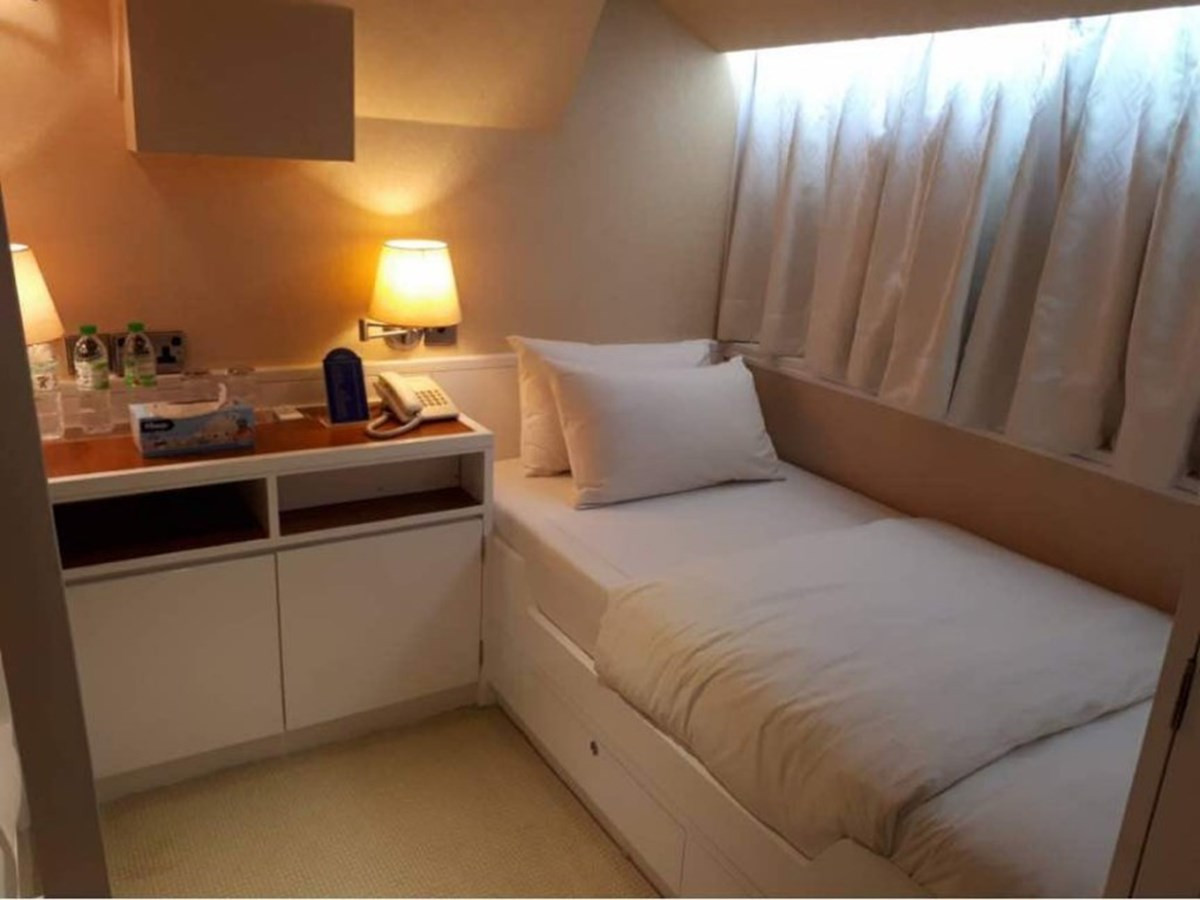

Six Guest Rooms

 2 Nos. Double Bedroom

•  2 Nos. Twin Bedroom

•  2 Nos. Triple Bedroom

• All with Ensuite Bathrooms

UPPER DECK

Wheelhouse, Chart Room and Study Room

SUN DECK

Helipad, 2 Nos Davit and Tenders



ENTERTAINMENT EQUIPMENT

Seatel Antenna - Astro

Computerised Karaoke Sound System

MP3 Music System



DECK & SAFETY EQUIPMENT

4 Nos Life Raft, Lift Buoys, Fire Extinguishers, EPIRB, EEBD, Fire Sprinklers, Portable Water Pump c/w Fire Hose etc.



GALLEY LAUNDRY

Fridge, Freezer and Cold Room

Washing Machines and Dryer



TENDERS & TOYS

Boston Whaler Fibre Glass Speed Boat (21 feet) with 200 HP 4 Stroke Engine

Nouvurania Speed Boat (RIB) with 115HP 4 Stroke Engine



WORKS/REFITS



SCOPE OF WORKS March 2021 – November 2023
- General Services
- Stabilizer System
- Sea Check Valves
- Hydraulic Steering Ram
- Engine Room Ventilation Trunking
- Anchor Windless Foundation -
- Anchor Windless
- Sea Water & Chiller System Suction Strainer
- Painting And Blasting, including Antifouling
- Port and Stbd Anchor and Anchor Chain
- Polish Port and Stbd Shaft and Propellers
- Port and Stbd Sea Chest Grating
- Navigation Equipment
- CCTV & Intercom
- Underwater Hull Fiber Area Lamination
- Zink Anodes
- FM 200 System
- Air Con System
- Emergency Shutdown Main Engine from Bridge Wheel House
- Fire Proof Walkie Talkie 2 units
- Instrument Monitor Engine Operation from Bridge
- Crane Foundation reinforced
- Stdb Davit Crane - Electrical & Electronic

- GENERATOR ALTERNATOR/DYNAMO & SWITCHBOARD SERVICING
