SPECIFICATIONS

Length: 78 feet
Beam: 33 feet
Draft: 4.5 feet
Year: 2016
Builder: GUNBOAT
Engines: Yanmar 6BY3 160 HP
Class: Catamaran
Year: 2016
Guest Cabins: 3
Crew Cabins: 2
Bathrooms: 5
Fuel Tank Capacity: 396 g
Water Tank Capacity: 396 g

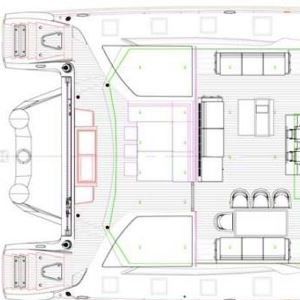

Layout

Port Aft Master Cabin Suite:
• 32' Samsung TV
• Fusion sound system

Port VIP Mid Ship Cabin Suite:
• Access is forward to the salon
• Queen bed
• 32' Samsung TV

Port Forward Suite:
• Located forward off mid-ship
• Double bunk bed
• 32' Samsung TV

Starboard VIP in Suite Aft Cabin:
• Located aft of the salon
• 32' Samsung TV

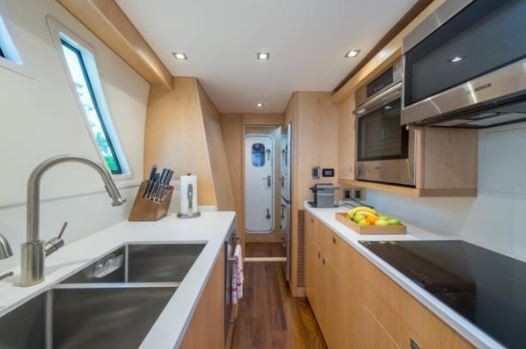

Galley:
• Located starboard side forward to the salon
• Silence + dishwasher
• Bosh cook top
• Bosh microwave
• Bosh oven
• Vitrifrigo refrigerator / freezer

Crew Mess:
• Located in front of Galley
• 32' Samsung TV
• Spacious crew seating and storage
• Splendide washer and dryer

Forward Starboard Crew Cabin:
• Located forward to the crew mess
• Two bunk beds
• In suite

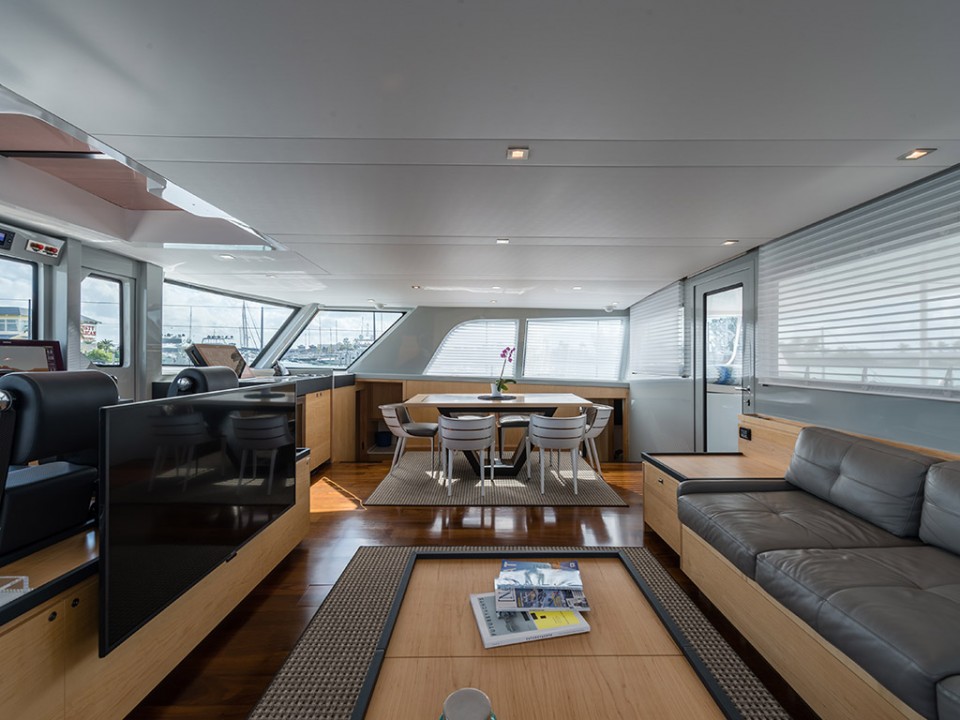

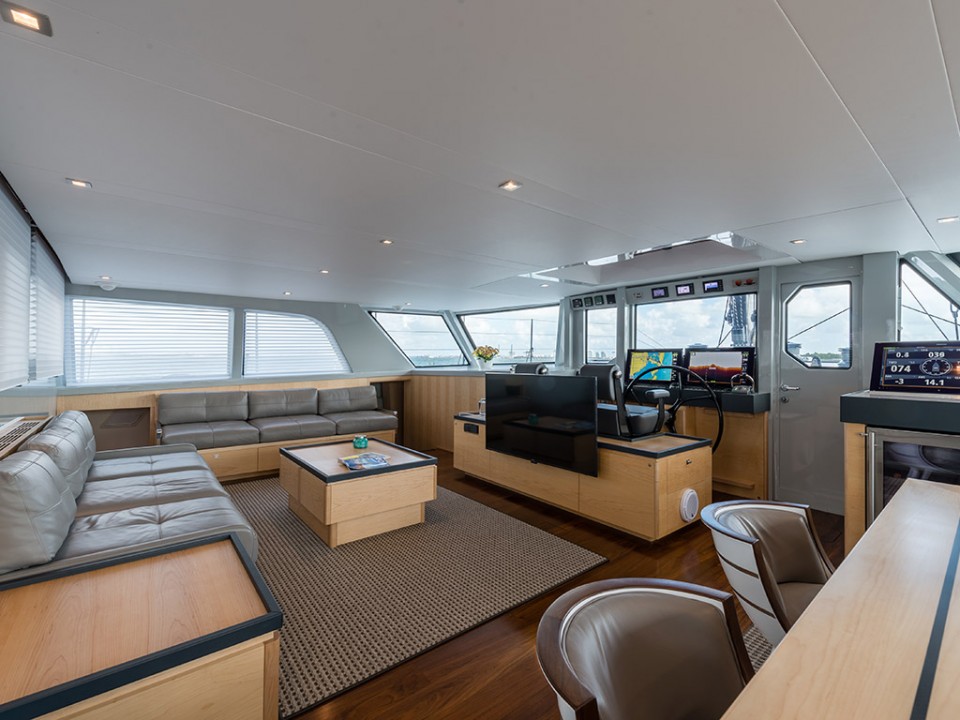

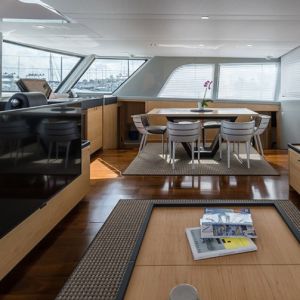

Salon:
• Dining table set starboard side of the salon with seating for 6
• Two sofas with very comfortable seating
• 55' Samsung TV
• Fusion sound system
• U-line wine cooler

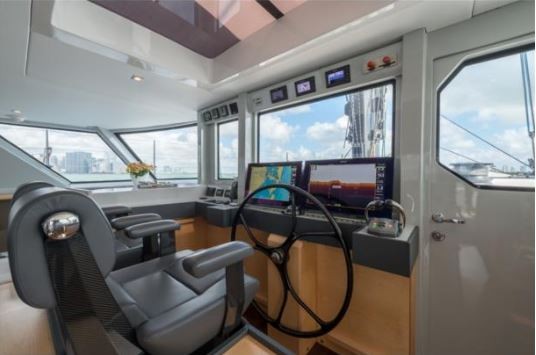

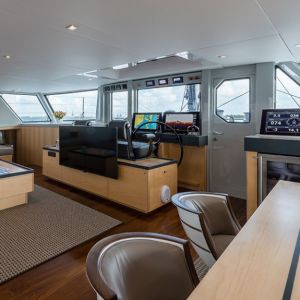

Helm Station:
• Two Besenzoni carbon fiber captain chairs
• Electronic on and off engine controls
• Two 24' Simrad displays
• VHF B&G
• Lewmar windlass control
• Lewmar bow thruster control
• Flir night vision camera control

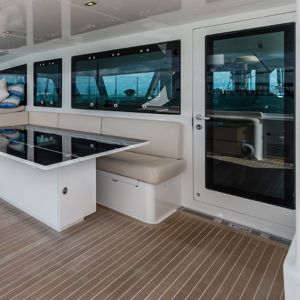

Aft Deck:
• Lots of comfortable seating
• Two launch areas on each side of the yacht
• Aft bench seating which houses storage area
• Two 6 people life drafts
• Ice maker
• Dive compressor

Electronic

B&G H5000 Performance Instrument System:
• B&G H5000 Performance Base Pack w/GCD
• B&G H5000 Graphic Color Display (GCD) -Helm
• B&G H5000 Graphic Color Display (GCD) -Fwd
• B&G H5000 Barometric Pressure Sensor/air temp.
• B&G H5000 3D Motion Sensor
• B&G H5000 Pilot Computer
• B&G H5000 Pilot Controller
• B&G RC42N Rate Compass, NMEA 2000
• B & G Vertical Masthead Unit Pack, 1450mm
• B&G DT800 active Depth/Temp 235 kHz transducer
• B & G Speed Transducer, flush, plastic, H-series
• SimNet to Micro-C(male) SimNet product to N2K Bus
• 55mm Load Cell Pins
• Maretron NMEA 2000 Network Bridge

B&G Zeus2 Glass Bridge System:
• SIMRAD MO24-T. 24" Widescreen
• B&G Zeus2 Glass Helm Processor
• B&G ZC1 Zeus wired controller
• B&G 4G Radar
• 4KW Analog radar w/cable
• B&G ZG100 GPS Antenna, 10Hz
• GoFree WiFi-1 Wireless Module
• B&G NAIS-400 Class B AIS system
• Navico SonarHub Module
• Navico ForwardScan transducer w/stainless housing
• Micro PC w/IF to remote monitor systems

Equipment

Communication Systems:
• B&G V90 VHF system
• B&G H50 Wireless Handset
• Hailer/Fog Horn, 5"x8", 40 watt, 4 ohm
• ICOM M88 01 Handheld VHF w/private channels
• YachtSpot 4G & WiFi system
• 2.4 GHz WiFi Antenna, White w/ferrule
• TracPhone V7-IP; Ku-band Antenna; Rack-mountable Integrated CommBox Modem
• (ICM); No Labels
• TracPhone V7-IP Empty Dome/Baseplate
• Iridium Pilot system
• Pansonic 2-Line wireless phone
• KVH MobileCast-IP Media Server

Cameras, recording, tracking and monitoring system:
• Iris IRIS065-28 day/night wide-angle camera, engine space
• Iris IRIS036-28 ss dome camera, fwd, aft and cockpit hatch
• 700 TVL Day/Night Outdoor Bullet Camera, longeron
• FLIR Dual payload 640x480 thermal imager and low-lux monochrome camera, controlled byZeus2
• GOST Watch HD analog to digital video conversion and compression for cockpit & FLIR IR cameras
• GOST Watch 1TB Internet video recorder. Records up to 3 months of continuous video from onboard cameras. Simple web interface to select date and time to watch on website from anywhere.

Audio Systems:
• Fusion AV750 Marine Stereo w/ Integral DVD Player
• JL Audio 8" marine subwoofer
• Gallo brushed stainless sphere speakers (ea)
• Fusion 5 Channel Marine Amplifier, DA51600
• JL Audio 8" marine 8.8" coaxial speaker (pair)
• Gallo brushed stainless sphere speakers (ea)
• Majestic UFO FM/TV antenna
• Bogen A6 all-Environment speakers, black (ea)

Additional Information:
• Propellers; 4 foldable blades FLEXOFOLD 23' diam, 22' pitch
• Gensets Northern Lights 20KW
• Genset hours: 220 h

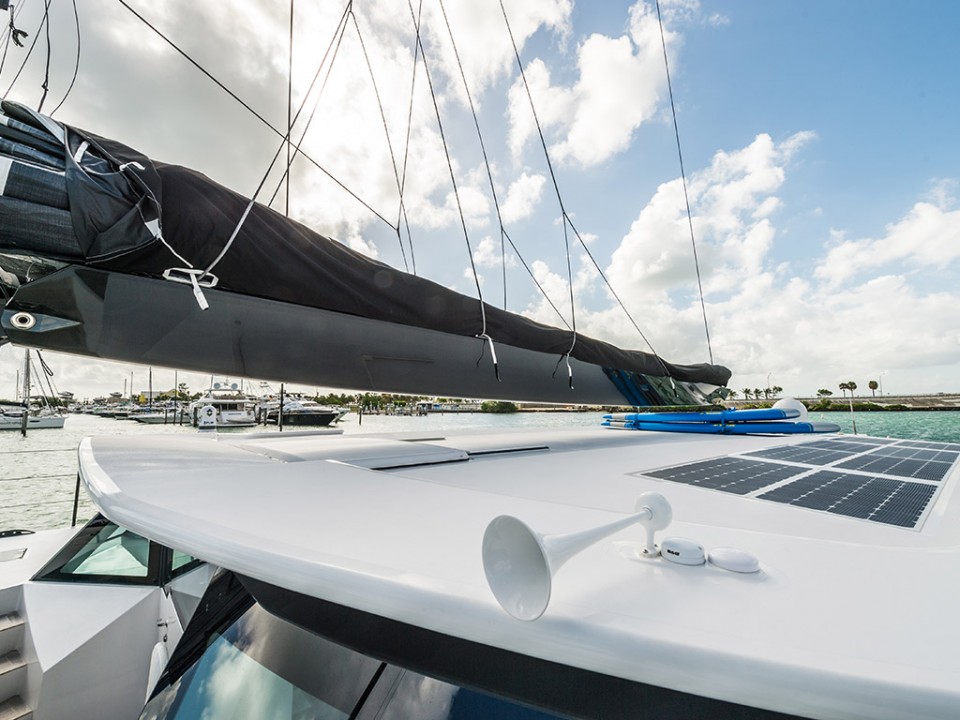

• Hall Spars. Carbon fiber rotation mast. 134'
• Hall Spars V shape boom
• Hall Spars bowsprit
• Halls Spars cross-beam
• Standing rigging ECSIX Future Fibers

Yacht Controller:
• Dual Band Yacht Controller for Teleflex CH controls, bow thruster & 1 windlass

Exterior

Sail Information:
• Main: North 3DI 760 Square Top. 3 reefs. 239.7 m2
• Solent Jib: North 3DI 760, 4 BATTENS. 75.2 m2
• J1: North 3DI 760. 130.9 m2
• A3 Asymmetrical: Cuben fiber 375 m2
• Storm Jib: North 3DI 38.62 m2
• Mast: 34 m
